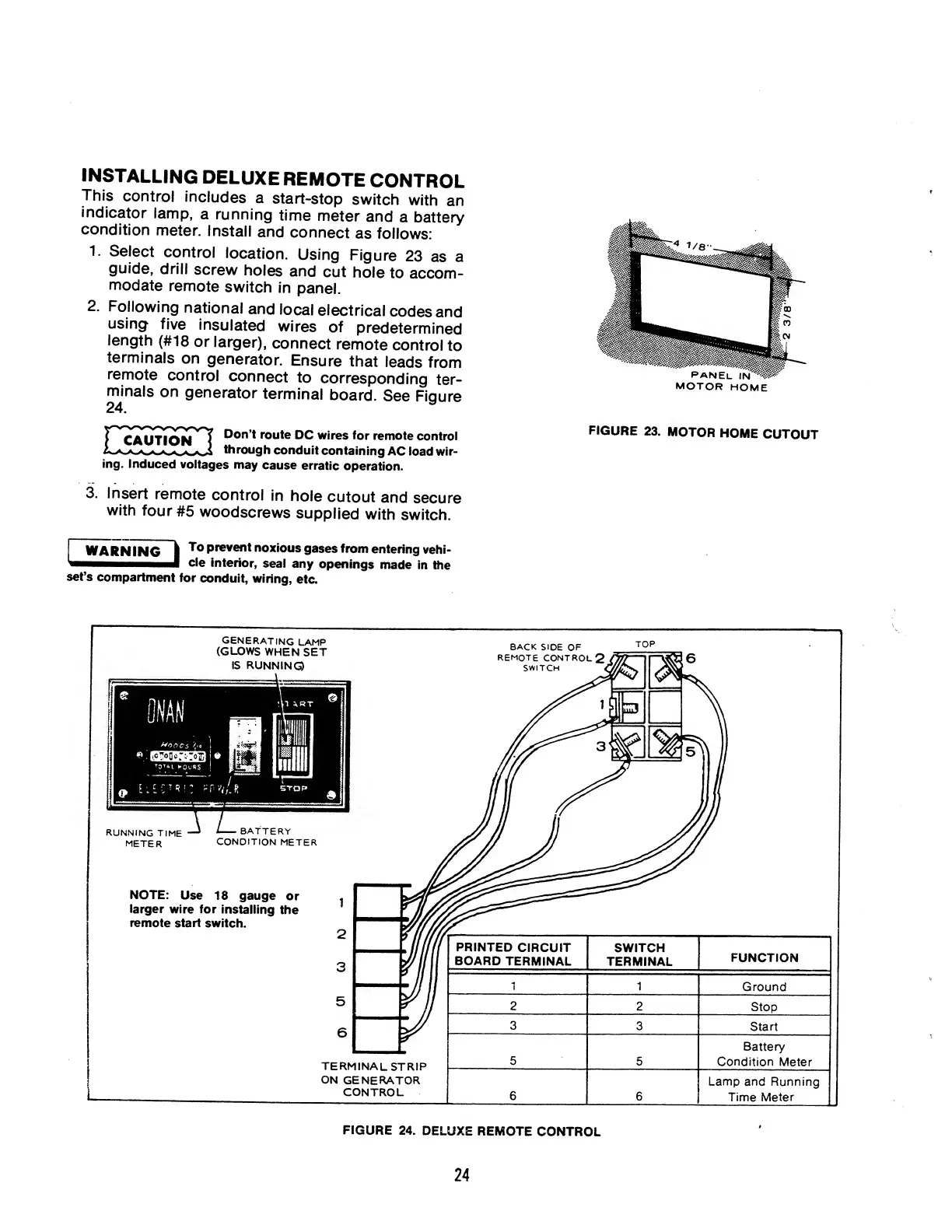

INSTALLING DELUXE REMOTE CONTROL
This control includes a start-stop switch with an
indicator lamp, a running time meter and a battery
condition meter. Install and connect as follows:
1. Select control location. Using Figure 23 as a
guide, drill screw holes and cut hole to accom¬
modate remote switch in panel.
2. Following national and local electrical codes and
using five insulated wires of predetermined
length (#18 or larger), connect remote control to
terminals on generator. Ensure that leads from
remote control connect to corresponding ter¬
minals on generator terminal board. See Figure
Don’t route DC wires for remote control
through conduit containing AC load wir¬
ing. Induced voltages may cause erratic operation.
3. I n s ert remote control in hole cutout and secure
with four #5 woodscrews supplied with switch.
To prevent noxious gases from entering vehi¬
cle interior, seal any openings made in the
set’s compartment for conduit, wiring, etc.
MOTOR HOME
FIGURE 23. MOTOR HOME CUTOUT
generating lamp
(GLOWS WHEN SET
IS RUNNING
RUNNING TIME
METER
L -BATTERY
CONDITION METER
NOTE: Use 18 gauge or
larger wire for installing the
remote start switch.
BACK SIDE OF
REMOTE CONTROL 2 <
SWITCH <
24

Onan CCK Specifications

General

Cylinders	2
Ignition System	Battery ignition
Fuel Type	Gasoline
Cooling System	Air-cooled
Fuel System	Carburetor
Starter	Electric
Governor	Mechanical
Max RPM	1800 RPM
Engine Type	4-cycle
Bore and Stroke	3.25 x 3.625 inches (82.55 x 92.08 mm)
