GENERAL INFORMATION
YOUR MANUAL
This manual contains operation and other informa¬
tion to properly maintain, service, and make ad¬
justments on you r generator set. Study and follow the
instructions carefully. A well-planned service and
maintenance program will result in longerunit life and
better performance. Because the most important part
of repair is diagnosis, a troubleshooting chart is
included.
Throughout the manual, engine end of the generator
set is the front. Left and right sides are determined
when facing the engine (front) end.
When contacting yourOnan dealer, distributor, orthe
factory about the generator set, always supply the
complete model number and serial number as shown
on the nameplate (see Model Designation preceding).
This information is necessary to identify your
generator set among the many types manufactured
by Onan.

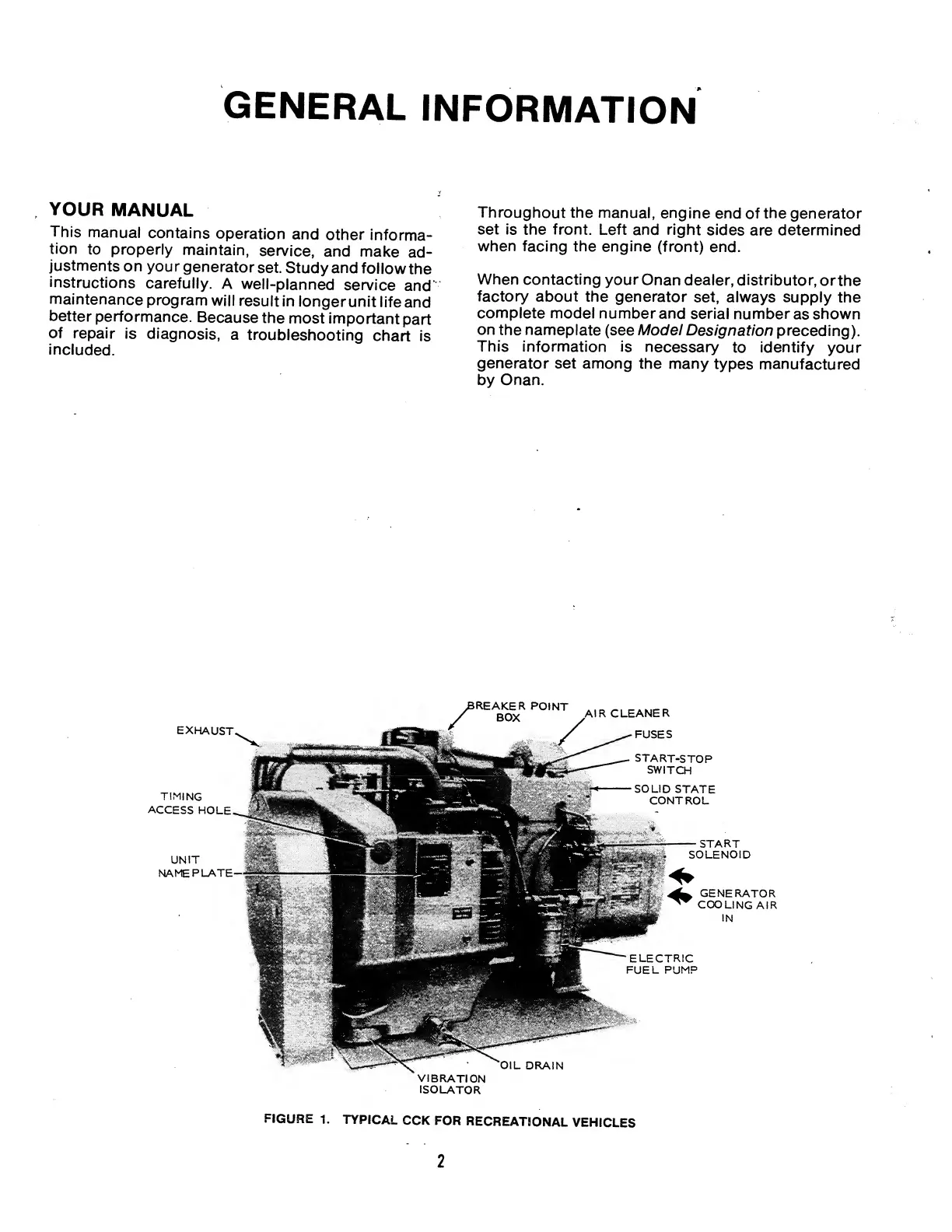

FIGURE 1.
TYPICAL. CCK FOR RECREATIONAL VEHICLES
RE AKER POINT
BOX
EXHAUST.
START-STOP
SWITCH
SOLID STATE
CONTROL
UNIT
NAMEPLATE'
GENERATOR
COOLING AIR
■ E L ECTRIC
FUEL PUMP
OIL DRAIN
VIBRATION
ISOLATOR
2

Onan CCK Specifications

General

Cylinders	2
Ignition System	Battery ignition
Fuel Type	Gasoline
Cooling System	Air-cooled
Fuel System	Carburetor
Starter	Electric
Governor	Mechanical
Max RPM	1800 RPM
Engine Type	4-cycle
Bore and Stroke	3.25 x 3.625 inches (82.55 x 92.08 mm)
