OIL
PRESSURE RELIEF VALVE
Refer to Figure
7-2.
On Specs
B
and
C
the oil relief
valve is accessible only after the oil base has been
removed. The check ball and spring are retained by
a retainer ring. On
Spec
A
the oil pressure relief
valve is removable form the outside by removing
the retaining bolt.
Wash all components in solvent and allow them to
dry. Inspect the components for damage and wear.
Replace parts
as
necessary.
WARNING
Most parts cleaning solvents are
flammable and can cause severe personal In-
jury
or death
If
used
Improperly. Follow the
manufacturer's recommendations when clean-
ing parts.
Lubricate the oil relief valve with oil before assem-
bling. On Specs
B
and
C
use
a
new retaining ring
and drive it right down to the shoulder of the counter
SPECS
B
AND C
I
?
SPEC
A

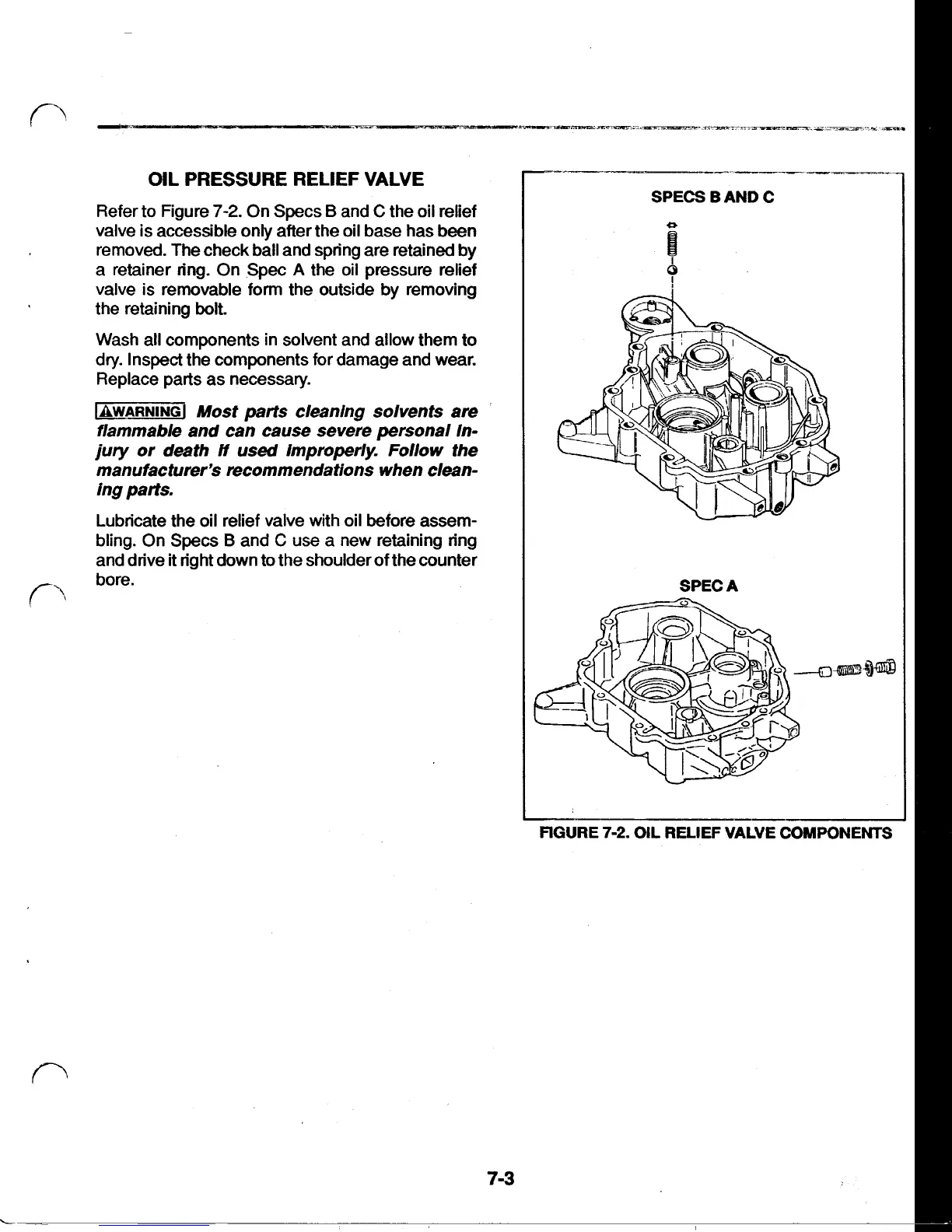

FIGURE
7-2.
OIL
RELIEF VALVE COMPONENTS
7-3
