FLYWHEEL ALTERNATORS
When the engine is equipped with a
12
VDC starter
motor a permanent magnet flywheel alternator and
electronic voltage regulator may
be
provided for
battery charging. Refer to Figure
8-3.
The flywheel
will have three to six permanent magnets depend-
ing
on
the output capacity.
See
Section 10. Starting
regarding starter
motor
service.
When the engine
is
equipped with a
110
VAC starter
motor and/or recoil starter a permanent magnet fly-
wheel alternator and
full
bridge rectifier may be pro-
vided for the customer DC interface (clutch, hour
meter, etc.). Refer to Figure
8-4.
The
110
VAC start-
er is provided with a power cord connected to a
switch /power receptacle block for mounting on the
equipment.
See
Section
10.
Starting
regarding starter motor
service.

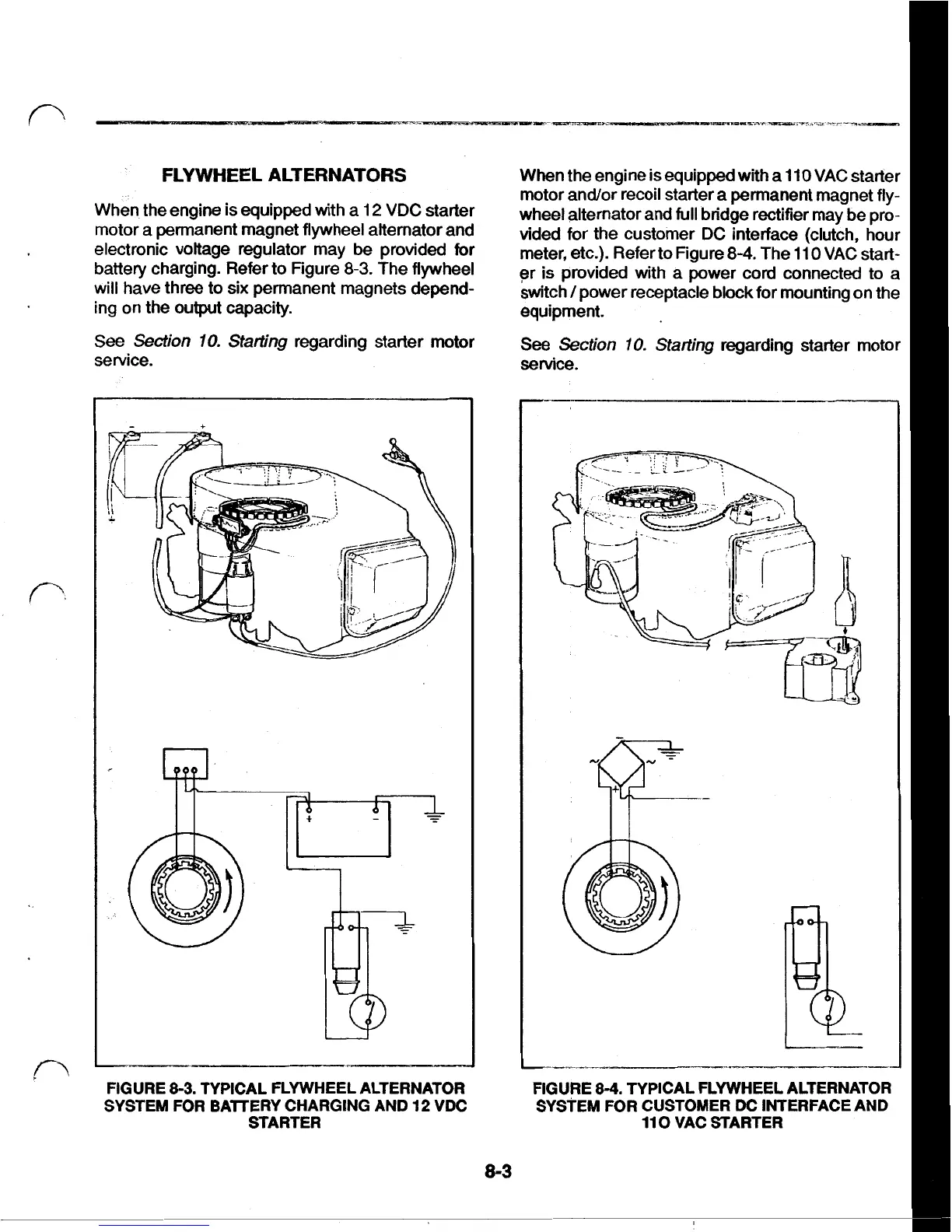

FIGURE
8-3.
TYPICAL FLYWHEEL ALTERNATOR
SYSTEM FOR BATTERY CHARGING AND
12
VDC
STARTER
FIGURE 8-4. TYPICAL FLYWHEEL ALTERNATOR
SYSTEM FOR CUSTOMER DC INTERFACE AND
110
VAC STARTER
a-3
