The generator set
is
heavy and can
ljiEiSl
result in severe personal injury if
dropped during removal. Use fhe recommended remo-
val techniques and keep hands and feet clear while
removing mounting bolts.
Park the recreational vehicle on as level a surface as
possible. Then follow these steps very carefully.
1.
Put the vehicle in its park position, lock the brakes,
and remove the keys (if applicable). Make sure no
one moves the vehicle while performing this
procedure.
Dropping the generator set can
lAWARNlNGI
result
in
severe personal injury
or
death. Make sure no one moves the vehicle
during this procedure and that the procedure
is
performed very carefully and only as instructed.
2.
3.
4.
5.
6.

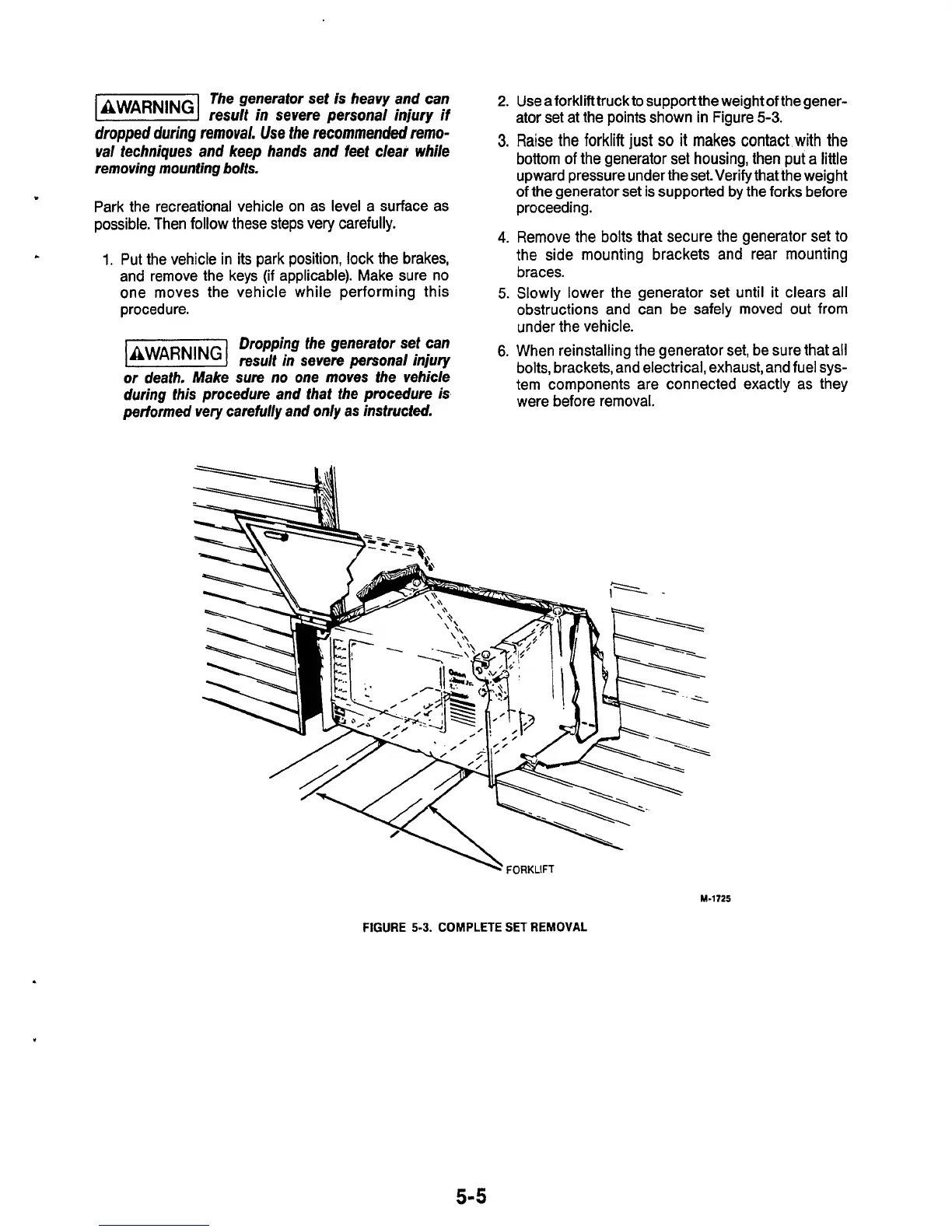

Use aforklifttruckto supportthe weightof thegener-
ator set at the points shown in Figure
5-3.
Raise the forklift just
so
it
makes contact with the
bottom
of
the generator set housing, then put a little
upward pressure under the set. Verify that the weight
of the generator set
is
supported by the forks before
proceeding.
Remove the bolts that secure the generator set to
the side mounting brackets and rear mounting
braces.
Slowly lower the generator set until it clears all
obstructions and can be safely
moved
out from
under the vehicle.
When reinstalling the generator set, be sure that all
bolts, brackets, and electrical, exhaust, and fuel sys-
tem components are connected exactly as they
were before removal.
M-1725
5-5
