Do
not terminate the exhaust tailpipe under the fuel tank
fill spout
to
prevent spilled fuel from being ignited by a
hot
tailpipe.
Do
not
terminate the exhaust tailpipe under
any door or operable window.
1
No
part
of
the exhaust system shall intrude into the
departure angle
or
approach angle unless it is ade-
quately protected by a skid bar or other protection
device. See Figure
6-2.
Use
a sufficient number
of
L
hangers to prevent damage or dislocation
of
the system.
Exhaust gases present the hazard
of
of
severe personalinjury or death.
Do
not terminate tailpipe
under
the vehicle. Direct exhaust
gases away from any vent, window, door,
or
any
open-
ing which can be opened and
is
not permanently
sealed from the vehicle living space.
Do
not mount any
protion
of
the exhaust system into the departure angle
or approach angle unless it is adequately protected.
Use suificient number
of
hangers toprevent damage
or
dislocation
of
the exhaust system.
[BCAUTION)
Excessive exhaust back pressure
can cause engine damage.
If
tailpipe
deflector is used, make sure
it
is
large enough
io
pre-
vent back pressure.
DEPARTURE
ANGLE
CLEARANCE
(REAR
VIEW)
LINE
ANGLE
Y-1689-4

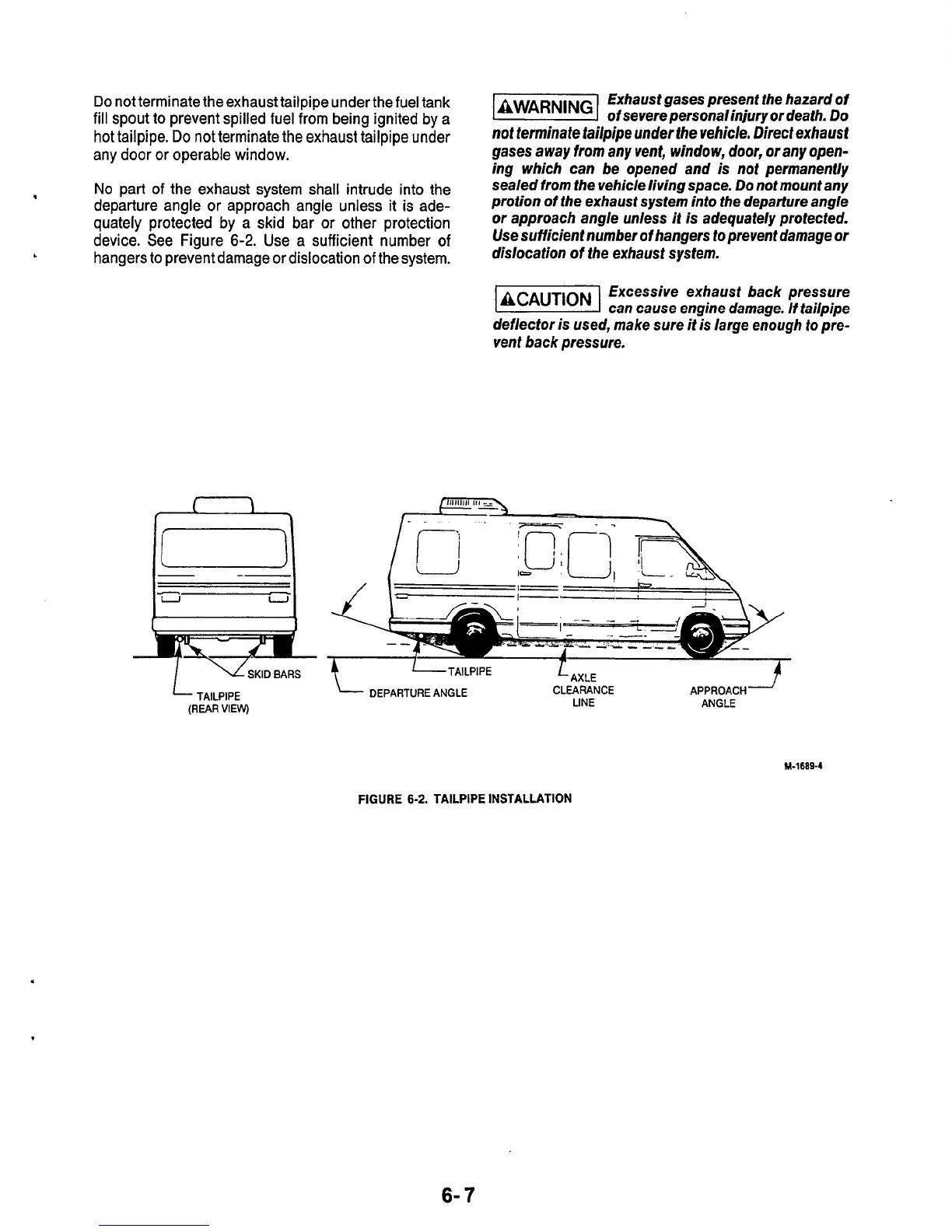

FIGURE
6-2.
TAILPIPE INSTALLATION
.
6-
7
