Onan MicroLite 2800 Series User Manual

K3
K4
z
T1
s3
52
s1
R1
P2
P1
M2
M1
K2
K1
G2
G1
F1,F2
E2
El
DSl
CR2
CR1
CB1
c1
BT1
B1
A2
A1
,
I FI-1 I
RELAY-IGNITION STOP
SOLENOID-PRIMING
Splice
Ignition Coil
Switch-StartIStop Remote
Switch
Low Oil Level
Switch-StartlStop
Resistor-Charging
Plug-Remote
Plug-Voltage Regulator
Meter Total Run Time
Meter Battery Condition
Start Disconnect Relay
Start Solenoid
Magneto Ignition
Generator
Fuse
FUEL SOLENOID
Spark Plug
Lamp Remote
Diode
Diode
Circuit Breaker
Capacitor
Battery
Starter Motor
Deluxe Remote Control
Standard Remote Control
/
r, I
'- I I I

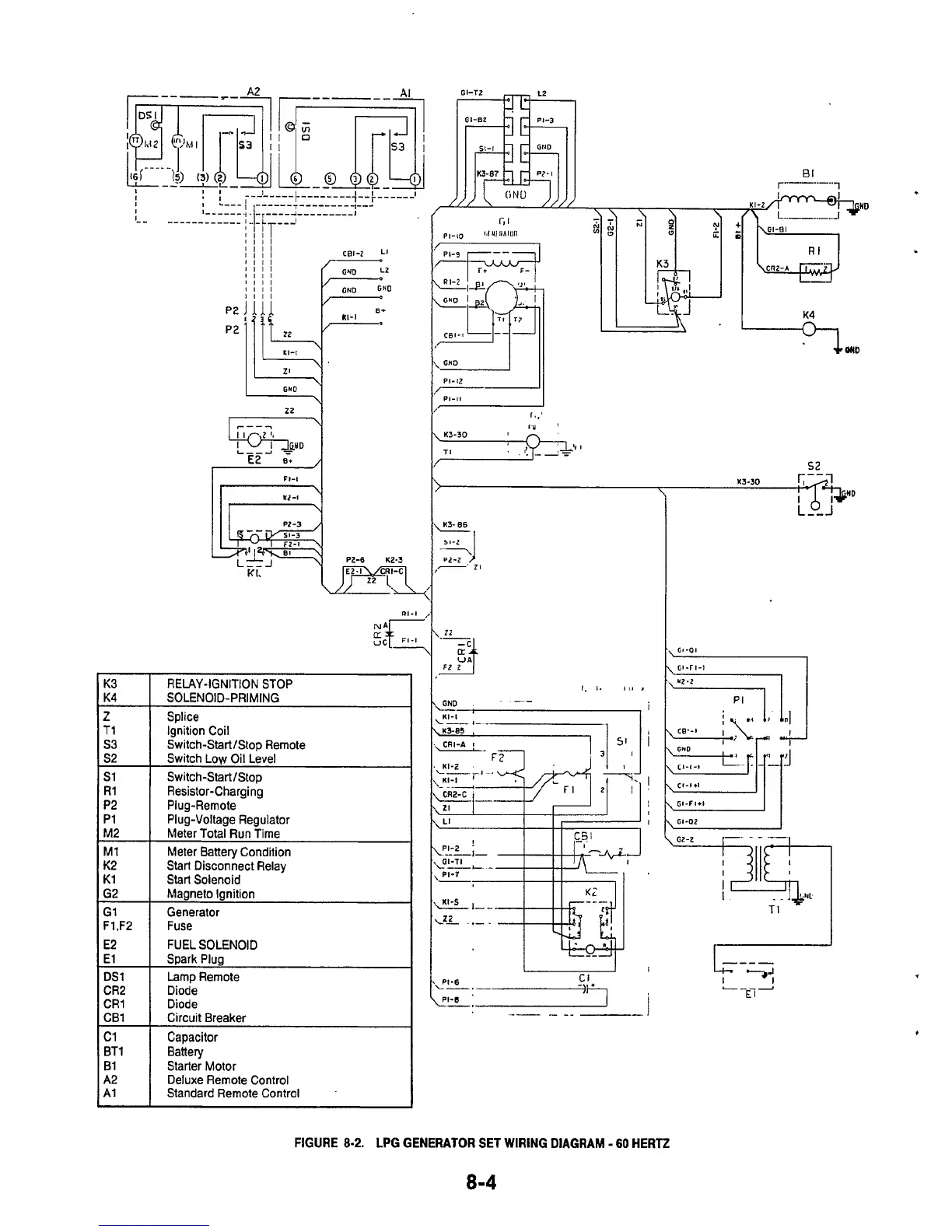

FIGURE 8-2.
LPG GENERATOR SET WIRING DIAGRAM - 60 HERTZ
8-4

Onan MicroLite 2800 Series Specifications

General

Rated AC Frequency	60 Hz
Fuel Type	Gasoline
Rated AC Output	2800 Watts
AC Voltage	120V
Engine	OHV
Noise Level at 23 ft	68 dB
DC Output	12V
Outlets	2x 120V 20A
