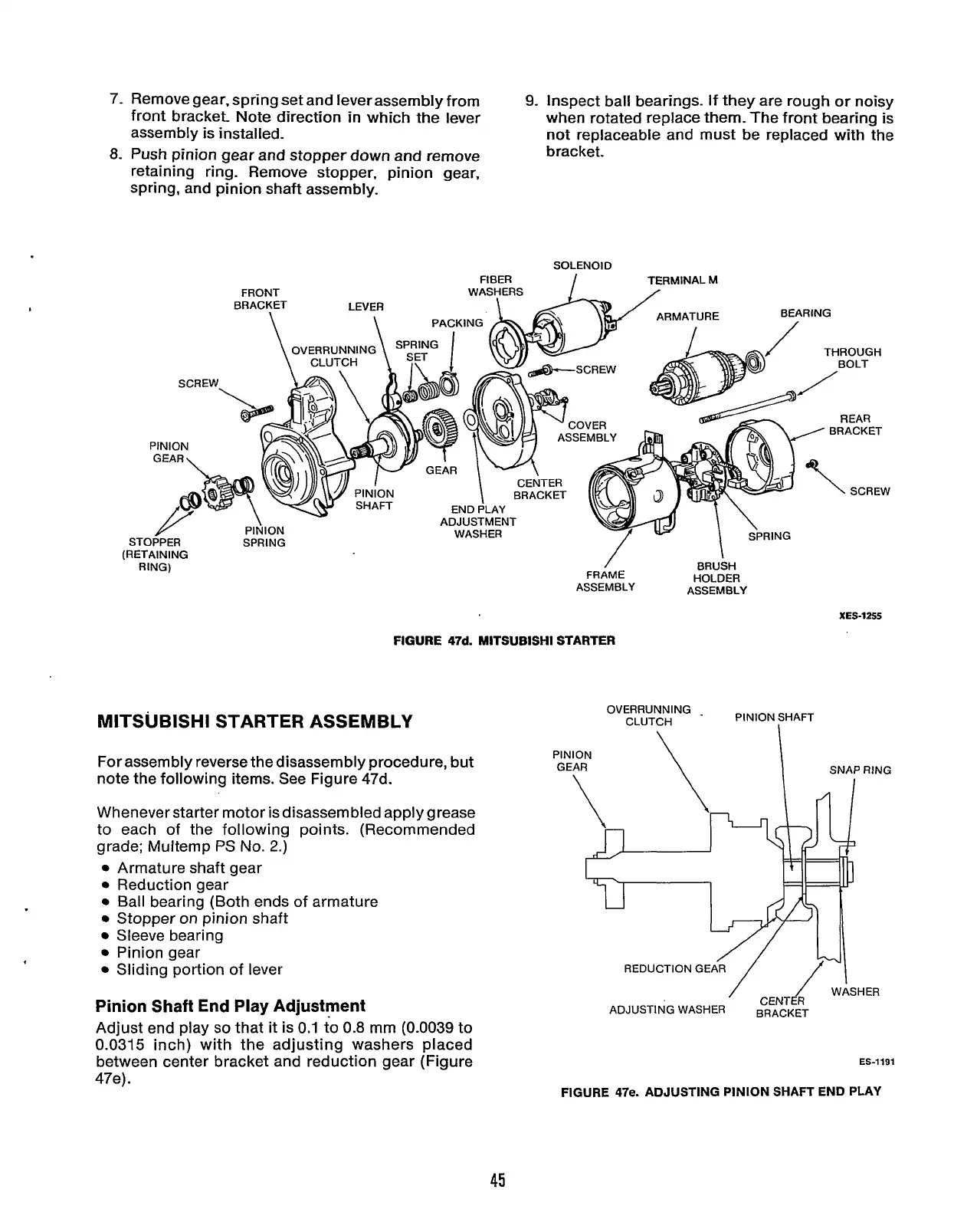

7-
Remove gear, spring set and leverassembly from
front bracket Note direction in which the lever
assembly is installed.
8.
Push pinion gear and stopper down and remove
retaining ring. Remove stopper, pinion gear,
spring, and pinion shaft assembly.
9.
Inspect ball bearings. If they are rough or noisy
when rotated replace them. The front bearing
is
not replaceable and must be replaced with the
bracket.
SOLENOID
TERMINAL
M
FRONT
BEARING
THROUGH
WASHER
FRAME
HOLDER
ASSEMBLY
ASSEMBLY
XES-1255
FIGURE
47d.
MlTSUBlSHl
STARTER
oVERRUNNING
PINION
SHAFT
MlTSUBlSHl STARTER ASSEMBLY
CLUTCH
SNAP
RING
PINION
GEAR
\
1
For assembly reverse the disassembly procedure, but
note the following items. See Figure 47d.
/
I
Whenever starter motor is disassem bled apply grease
to each
of
the following points. (Recommended
grade; Multemp
PS
No.
2.)
Armature shaft gear
Reduction gear
Ball bearing (Both ends
of
armature
Stopper on pinion shaft
Sleeve bearing
Pinion gear
Sliding portion of lever
Pinion Shaft End Play Adjustment
Adjust end play
so
that
it
is
0.1 to
0.8
mm
(0.0039
to
0.0315
inch) with the adjusting washers placed
47e).
between center bracket and reduction gear (Figure
ES-1191
FIGURE
47e.
ADJUSTING PINION SHAFT END
PLAY
45
