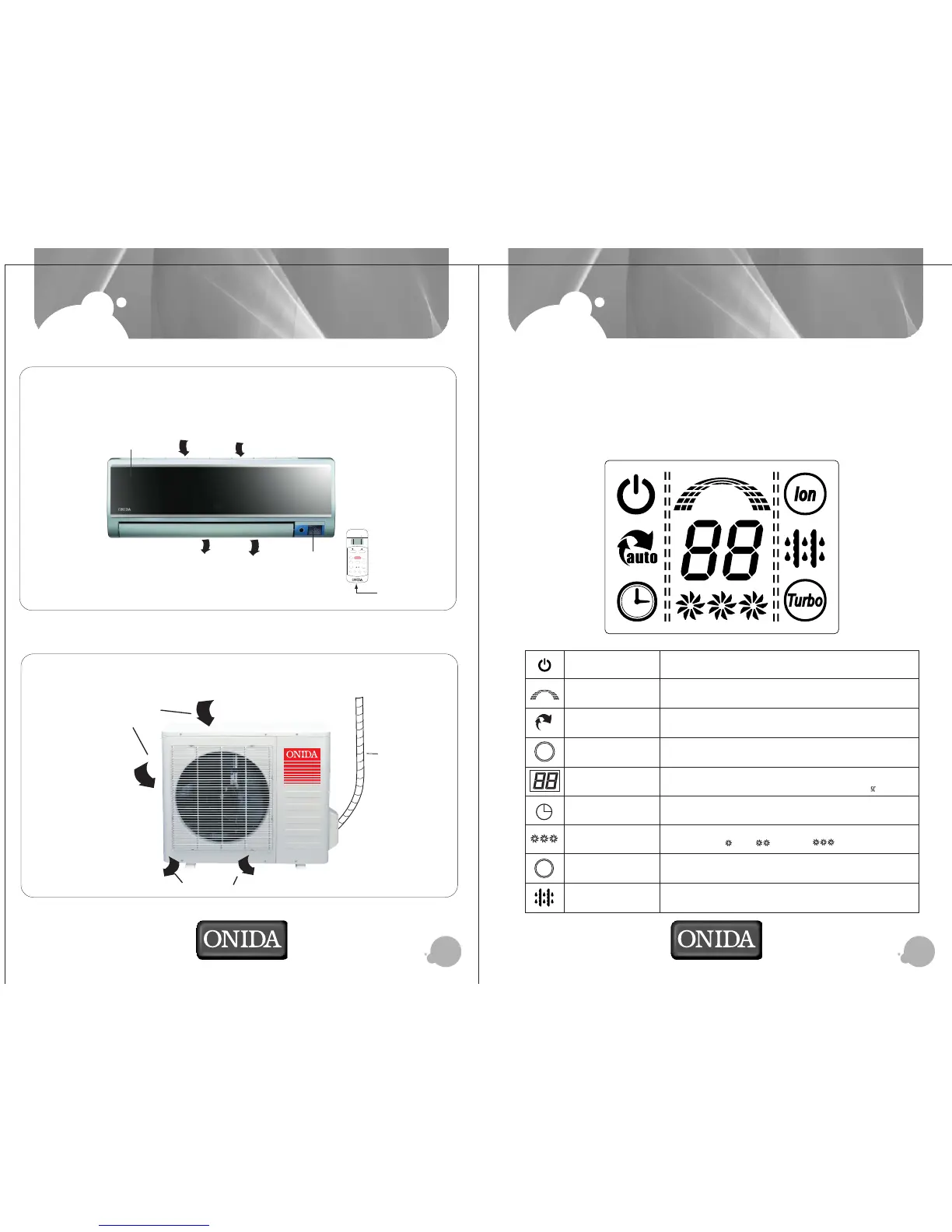

INSIDE OVERVIEW
INDOOR UNIT DISPLAY
n OUTDOOR UNIT
Air in
Exhaust Air
Connection
pipe and
connecting wire
n INDOOR UNIT
Conditioned Air out
Front panel
Return warm Air in
Remote controller
Display
Display on the indoor unit.
For the icon of LED windows, only relevant icons will light up with their displays on.
TEMP
AUTO
COOL
DRY
FAN
TURBO
HIGH
MED
LOW
MODE
FAN
SWING
TIMERON/OFF
ENERGY
SAVER
ON/OFF
SLEEP/
DISPLAY
RESET LOCK
SETTEMPERATURE( C)
SELF
CLEAN
FOLLOW
ME
i-Cooli-Cool
CLEAN
AIR
CLEAN
AIR
TURBOTURBO
Ion
au to
Operation
Compressor
Current Frequency
Auto Mode
Clean Air
Temp
Ser timer
Fan speed L/M/L
Turbo cool
Tur bo
Defrost
AUTO indication lamp
Lights up during the Auto operation.
TIMER indication lamp
Lights up during Timer operation.
CLEAN AIR indication lamp
Lights up when CLEAN AIR feature is activated.
TURBO indication lampLights up when select TURBO
function on cooling operation or on heating operation.
DEFROST indication lamp(For reverse cycle model only):
Lights up when the air conditioner starts defrosting automatically
or when the warm air control feature is activated in heating
DIGITAL DISPLAY indication lamp Displays the current setting temperature.
When the air conditioner is in FAN ONLY operation, itdisplays the actual room
temperature. When SELF CLEAN feature is activated, it displays .
FAN SPEED indication lampDisplays the selected fan speed: three fan
speed levels: LOW( ), MED( ) and HIGH( ).
This display is separated into five zones. The zones illuminate based on the
compressor current frequency. For example, higher frequency will
illuminate more zones.
OPERATION indication lamp This lamp illuminates when the air
conditioner is in operation.
