Onkyo A-7022 Service Manual

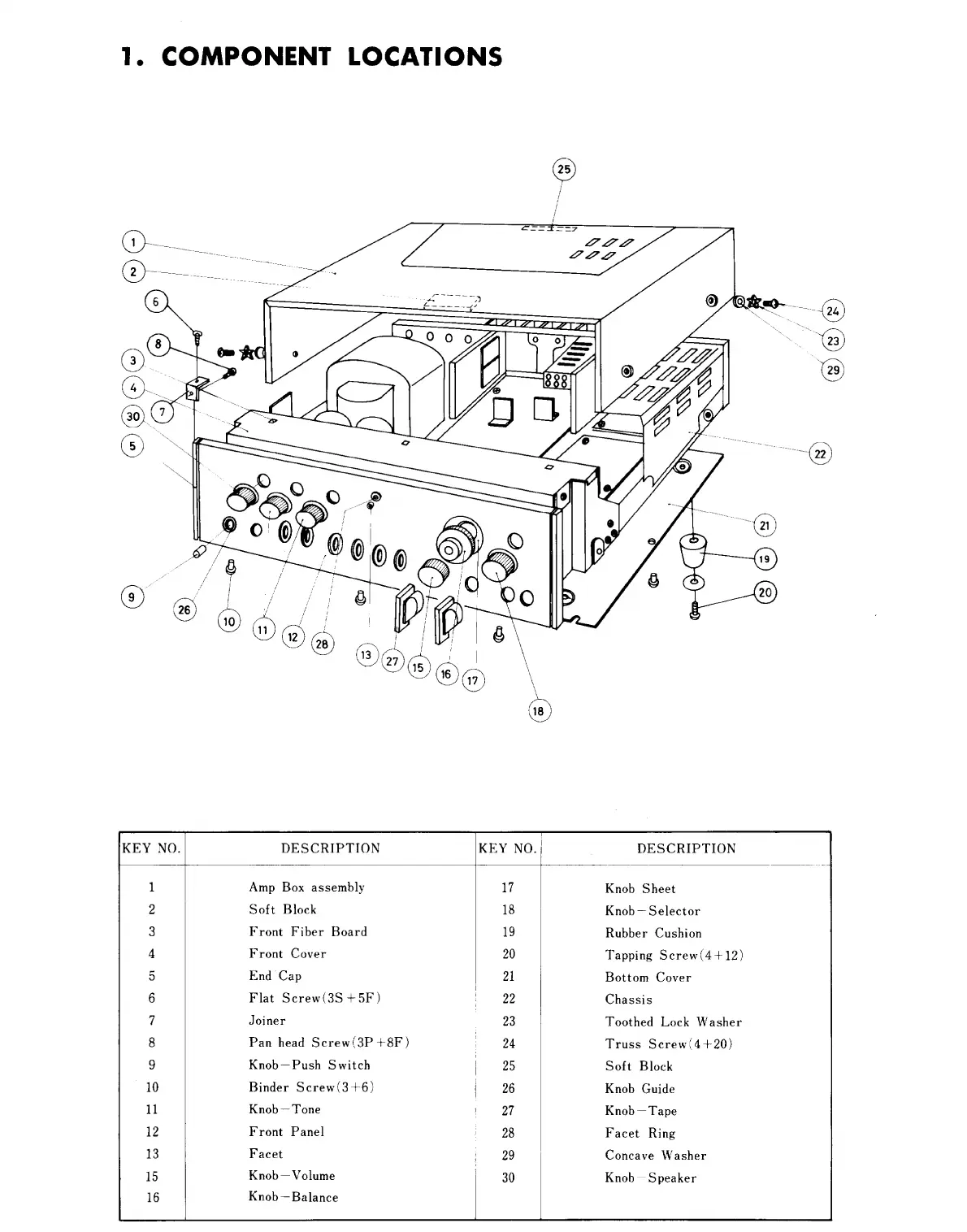

1. COMPONENT LOCATIONS
DESCRIPTION
DESCRIPTION
Amp Box assembly
Soft Block
Front Fiber Board
Front Cover
Eind Cap
Flat Screw(3S +5F)
Joiner
Pan head Screw(3P+8F)
Knob—Push Switch
Binder Screw(3+6)
Knob— Tone
Front Panel
Facet
Knob— Volume
Knob —Balance
Knob Sheet
Knob— Selector
Rubber Cushion
Tapping Screw(4+12)
Bottom Cover
Chassis
Toothed Lock Washer
Truss Screw(4+20)
Soft Block
Knob Guide
Knob — Tape
Facet Ring
Concave Washer
Knob — Speaker
