Onkyo A-8067 Service Manual

A-8067

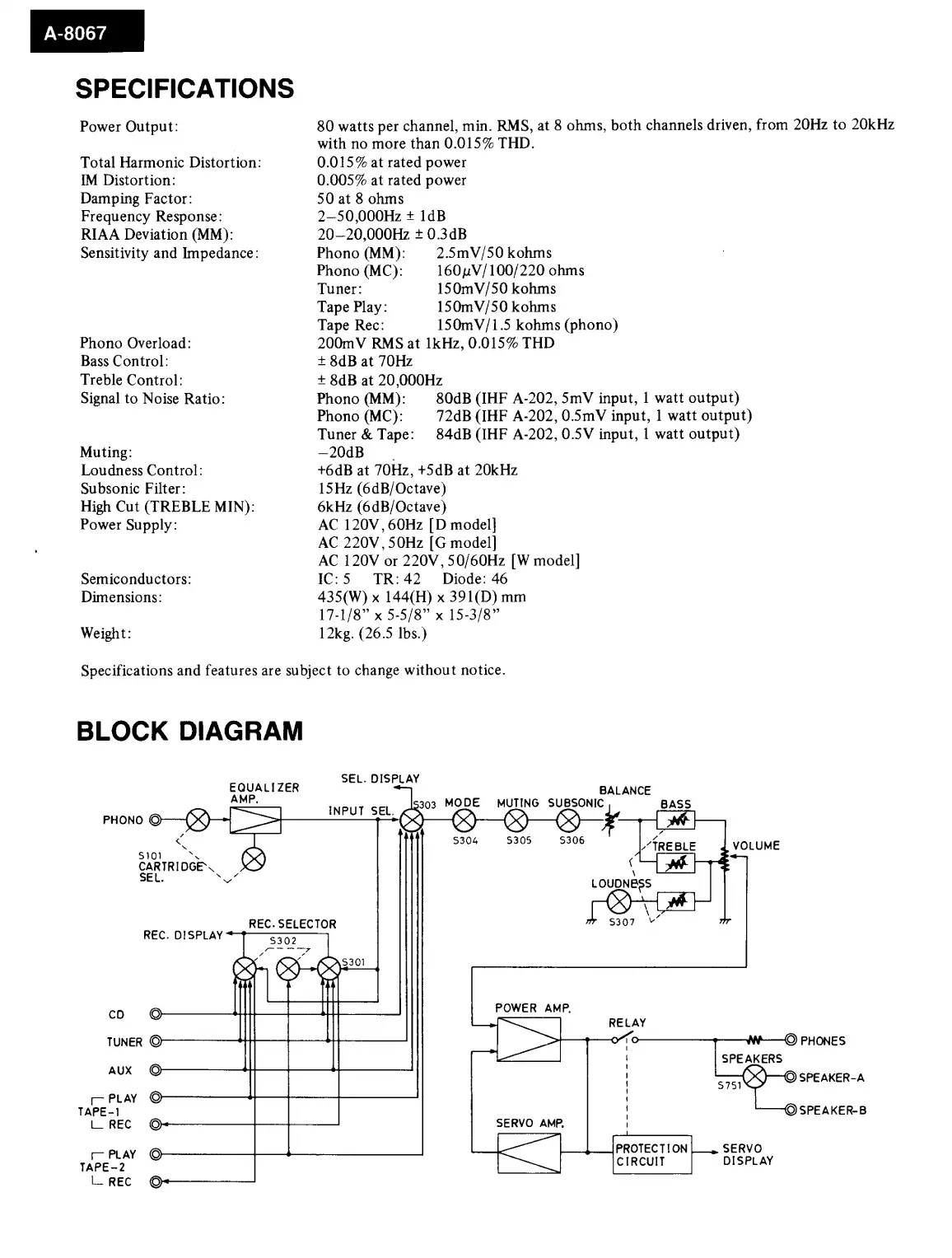

SPECIFICATIONS
Power Output:
Total Harmonic Distortion:
IM Distortion:
Damping Factor:
Frequency Response:
RIAA Deviation (MM):
Sensitivity and Impedance:
Phono Overload:
Bass Control:
Treble Control:
Signal to Noise Ratio:
Muting:
Loudness Control:
Subsonic Filter:
High Cut (TREBLE MIN):
Power Supply:
Semiconductors:
Dimensions:
Weight:
80 watts per channel, min. RMS, at 8 ohms, both channels driven, from 20Hz to 20kHz
with no more than 0.015% THD.
0.015% at rated power
0.005% at rated power
50 at 8 ohms
2—50,000Hz + 1dB
20—20,000Hz + 0.3dB
Phono (MM): 2.5mV/50 kohms
Phono (MC): 160pnV/100/220 ohms
Tuner: 150mV/50 kohms
Tape Play: 150mV/50 kohms
Tape Rec: 150mV/1.5 kohms (phono)
200mV RMS at 1kHz, 0.015% THD
+ 8dB at 70Hz
+ 8dB at 20,000Hz
Phono (MM): 80dB (IHF A-202, S5mV input, | watt output)
Phono (MC): 72dB (HF A-202, 0.5mV input, 1 watt output)
Tuner & Tape: 84dB (IHF A-202, 0.5V input, 1 watt output)
—20dB-
+6dB at 70Hz, +5dB at 20kHz
15Hz (6dB/Octave)
6kHz (6dB/Octave)
AC 120V, 60Hz [D model]
AC 220V, 50Hz [G model]
AC 120V or 220V, 50/60Hz [W model]
IC:5 TR:42 Diode: 46
435(W) x 144(H) x 391(D) mm
17-1/8” x 5-5/8” x 15-3/8”
12kg. (26.5 Ibs.)
Specifications and features are subject to change without notice.
BLOCK DIAGRAM
SEL. DISPLAY
BO
BALIZER
DE
BALANCE
.
303
MO
MUTING
SUBSONIC
BASS
>
—__]
INPUT
SEL.
KS
S
>
>
;
PHONO
O—(X—-}
>
C)—_
0)
0&9)
<
S304
$305
$306
4
Sion NN S2
CARTRIOGES.~ <>
SEL. ‘7
REC. SELECTOR
REC. DISPLAY
mL
- ii
9301
ne
alii
sunen © | 0 prone
veo re
—_ ewe
r- PLAY ©
L_ REC © - SERVO AMP.
eS PROTECTION SERVO
Ape?
2
|
DISPLAY
