Onkyo A-8067 Service Manual

A-8067 |
SPEAKER
TERMINAL
PC
BOARD
(NATS-2168)
—
PARTS
LIST
CIRCUIT NO. PART NO.
25060039
DESCRIPTION
NTM-4PDMN10, Terminal
SPEAKER TERMINAL PC BOARD (NATS-2168a) —
PARTS LIST
CIRCUIT NO. PART NO.
C751, C753 379121025
25060039
DESCRIPTION
0.001 uF, 50V, Capacitor DEW
NTM-4PDMN10, Terminal
LED CIRCUIT PC BOARD (NADIS-2169) — PARTS LIST
CIRCUIT NO. PART NO. DESCRIPTION
D711 225174 SLRSSMC3N, LED
225173 SLR55MC3M, LED
27190319A Holder LED

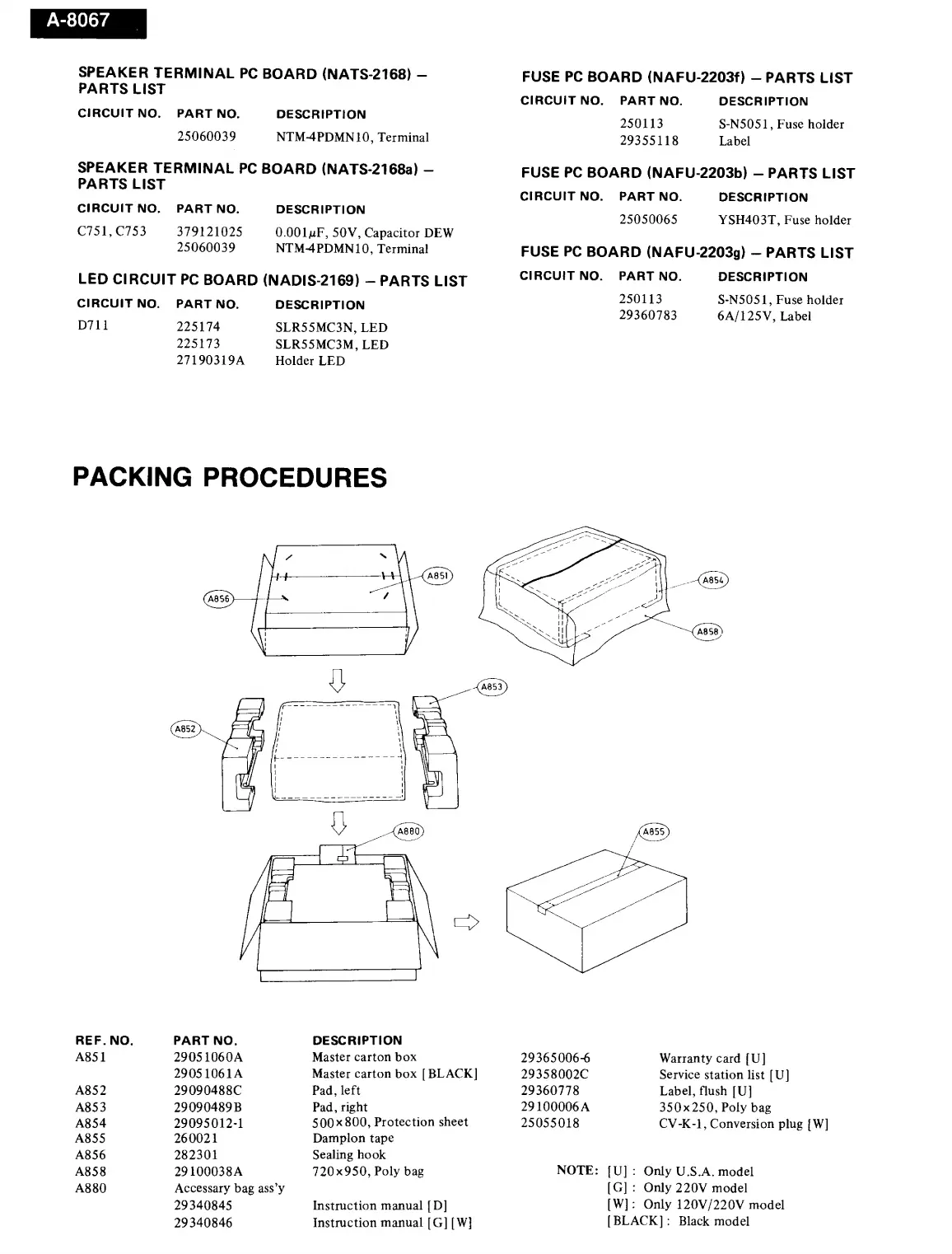

PACKING PROCEDURES
REF. NO. PART NO. DESCRIPTION
A851 29051060A Master carton box
2905 1061A Master carton box [BLACK]
A852 29090488C Pad, left
A853 29090489B Pad, right
A854 29095012-1 500x800, Protection sheet
A855 260021 Damplon tape
A856 282301 Sealing hook
A858 29 100038A 720x950, Poly bag
A880 Accessary bag ass’y
29340845 Instruction manual [D]
29340846 Instruction manual [G] [W}
FUSE PC BOARD (NAFU-2203f) — PARTS LIST
CIRCUIT NO. PART NO. DESCRIPTION
250113 S-N5051, Fuse holder
29355118 Label
FUSE PC BOARD (NAFU-2203b) — PARTS LIST
CIRCUIT NO. PART NO. DESCRIPTION
25050065 YSH403T, Fuse holder
FUSE PC BOARD (NAFU-2203g) — PARTS LIST
CIRCUIT NO. PART NO. DESCRIPTION
250113 S-N5051, Fuse holder
29360783
6A/125V, Label
2936500646 Warranty card {U]
29358002C Service station list [U]
29360778 Label, flush [U]
29100006A 350x250, Poly bag
25055018 CV-K-1, Conversion plug [W]
NOTE: [U]: Only U.S.A. model
[G] : Only 220V model
[W]: Only 120V/220V model
[BLACK]: Black model
