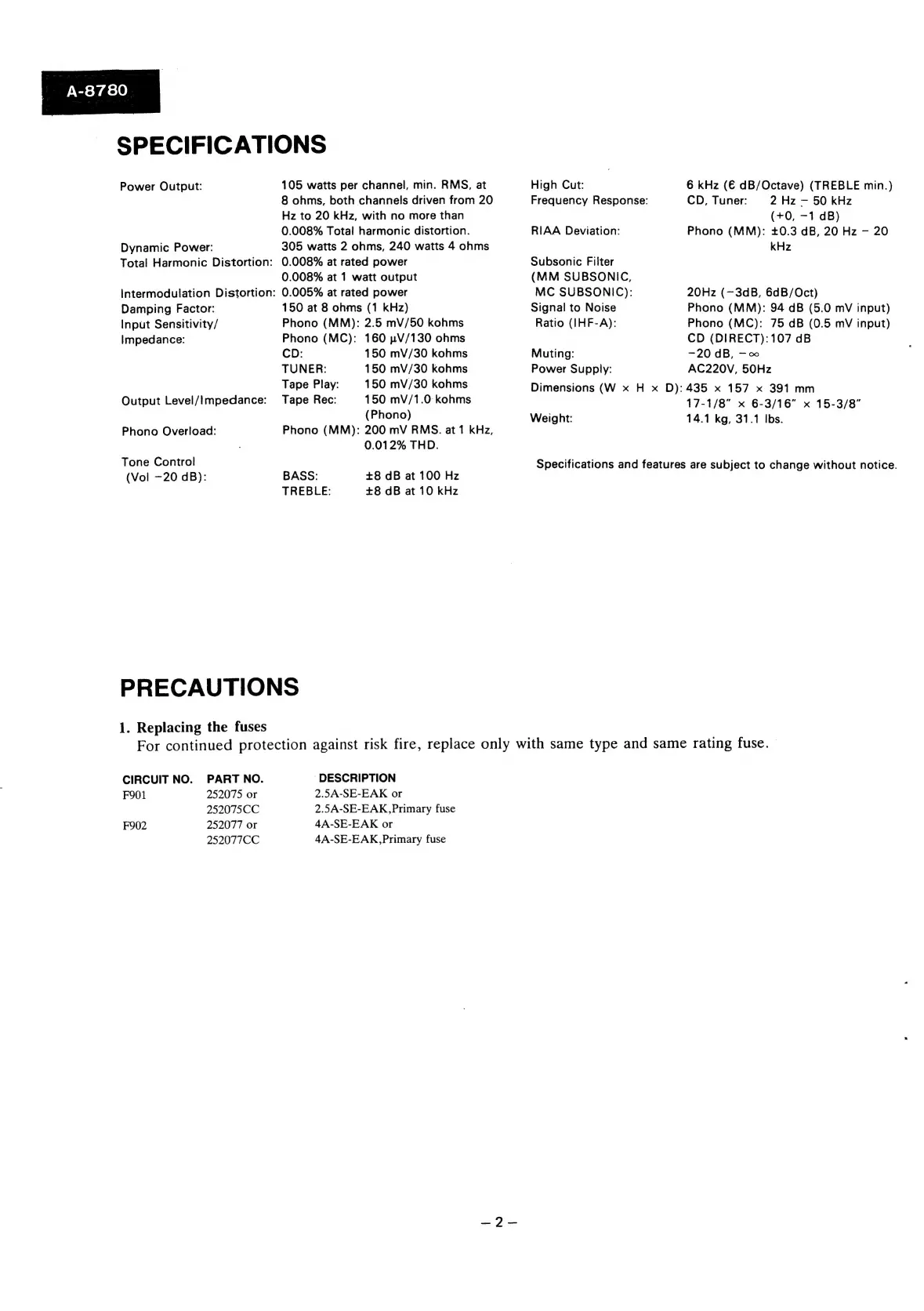

Onkyo A-8780 - Specifications; Precautions

SPECIFICATIONS
Power Output: 105 watts per channel, min. RMS, at
8 ohms, both channels driven from 20
Hz to 20 kHz, with no more than
0.008% Total harmonic distortion.
Dynamic Power: 305 watts 2 ohms, 240 watts 4 ohms
Total Harmonic Distortion: 0.008% at rated power
0.008% at 1 watt output
Intermodulation Distortion: 0.005% at rated power
Damping Factor: 150 at 8 ohms (1 KHz)
Input Sensitivity/ Phono (MM): 2.5 mV/50 kohms
Impedance: Phono (MC): 160 pV/130 ohms
CD: 150 mV/30 kohms
TUNER: 150 mV/30 kohms
Tape Play: 150 mV/30 kohms
Output Level/Impedance: Tape Rec: 150 mV/1.0 kohms
(Phono)
Phono Overload: Phono (MM): 200 mV RMS. at 1 kHz,
. 0.012% THD.
Tone Control
(Vol —20 dB): BASS: +8 dB at 100 Hz
TREBLE: +8 dB at 10 kHz
PRECAUTIONS
1. Replacing the fuses
High Cut:
Frequency Response:
RIAA Deviation:
Subsonic Filter
(MM SUBSONIC,
MC SUBSONIC):
Signal to Noise
Ratio (IHF-A):
Muting:
Power Supply:
6 kHz (€ dB/Octave) (TREBLE min.)
CD, Tuner: 2 Hz — 50 kHz
(+0, -1 dB)
Phono (MM): +0.3 dB, 20 Hz — 20
kHz
20Hz (—3dB, 6dB/Oct)
Phono (MM): 94 dB (5.0 mV input)
Phono (MC): 75 dB (0.5 mV input)
CD (DIRECT):107 dB
-20 dB, —©
AC220V, 50Hz
Dimensions (W x H x D): 435 x 157 x 391 mm
Weight:
17-1/8" x 6-3/16" x 15-3/8”
14.1 kg, 31.1 Ibs.
Specifications and features are subject to change without notice.
For
continued
protection
against
risk
fire,
replace
only
with
same
type
and
same
rating
fuse.
CIRCUIT NO. PART NO. DESCRIPTION
F901 252075 or 2.5A-SE-EAK or
252075CC 2.5A-SE-EAK, Primary fuse
F902 252077 or 4A-SE-EAK or
252077CC 4A-SE-EAK,Primary fuse
