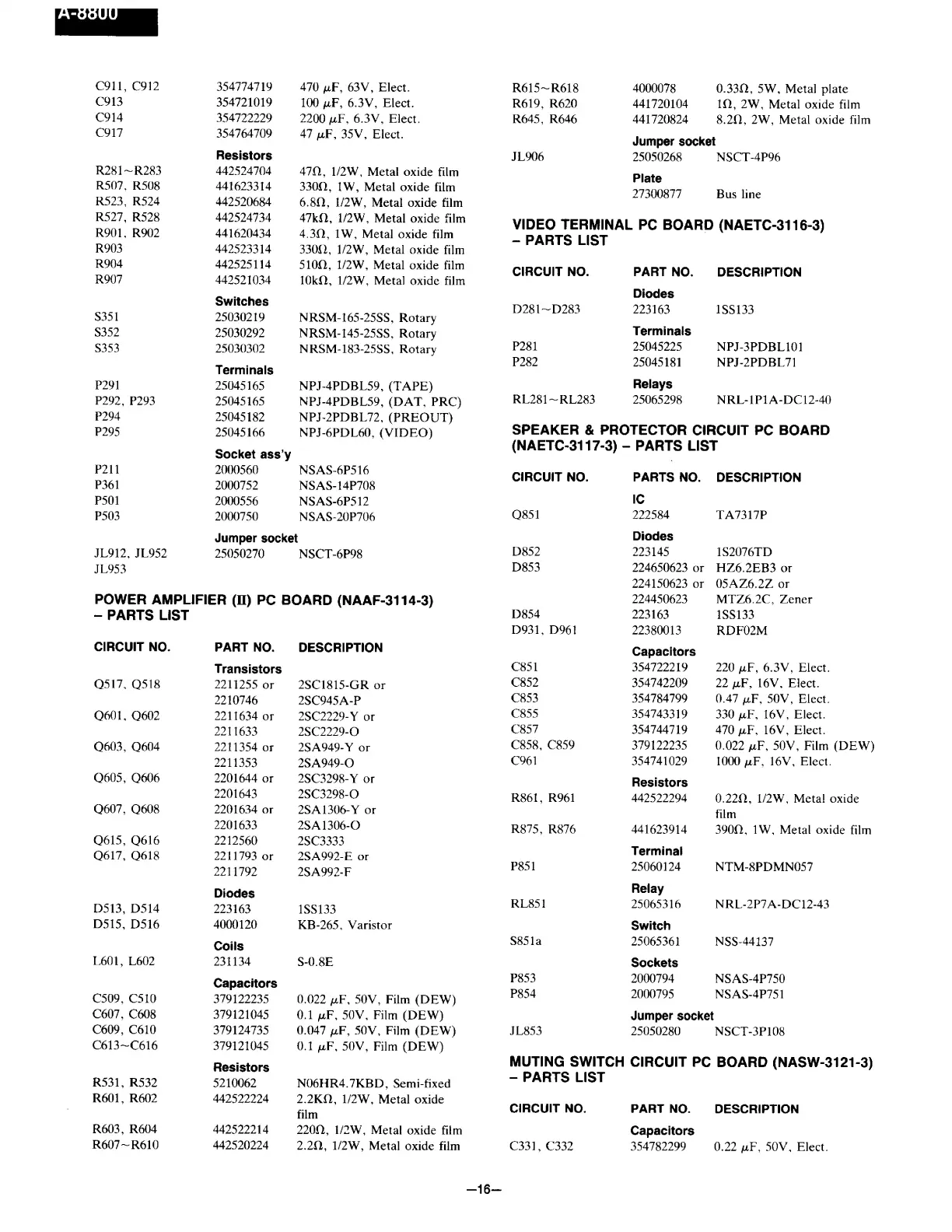

Onkyo A-8800 Service Manual

C911, C912
C913
C914
C917
R281~ R283
R507, R508
R523, R524
R527, R528
R901, R902
R903
R904
R907
$351
$352
$353
P29]
P292, P293
P294
P295
P211
P361
P501
P503
JL912, JL952
JL9S3
354774719
354721019
354722229
354764709
Resistors
442524704
441623314
442520684
442524734
441620434
442523314
442525114
442521034
Switches
25030219
25030292
25030302
Terminals
25045165
25045165
25045182
25045166
Socket ass’y
2000560
2000752
2000556
2000750
Jumper socket
25030270
470 pF, 63V, Elect.
100 pF, 6.3V, Elect.
2200 uF, 6.3V, Elect.
47 pF, 35V, Elect.
A7Q,, 1/2W, Metal oxide film
3300, 1W, Metal oxide film
6.80, 1/2W, Metal oxide film
47kQ, 1/2W, Metal oxide film
4.30, 1W, Metal oxide film
3300, 1/2W, Metal oxide film
5100, 1/2W, Metal oxide film
10k), 1/2W, Metal oxide film
NRSM-165-25SS, Rotary
NRSM-145-25SS, Rotary
NRSM-183-25SS, Rotary
NPJ-4PDBL59, (TAPE)
NPJ-4PDBLS59, (DAT, PRC)
NPJ-2PDBL72, (PREOUT)
NPJ-6PDL60, (VIDEO)
NSAS-6P516
NSAS-14P708
NSAS-6P512
NSAS-20P706
NSCT-6P98
POWER AMPLIFIER (I) PC BOARD (NAAF-3114-3)
— PARTS LIST
CIRCUIT NO. PART NO. DESCRIPTION
Transistors
O517, Q518 2211255 or 2$C1815-GR or
2210746 2SC945A-P
Q601, Q602 2211634 or 2$C2229-Y or
2211633 28C2229-O
Q603, Q604 2211354 or 2SA949-Y or
2211353 2SA949-O
Q605, Q606 2201644 or 28C3298-Y or
2201643 28C3298-O
Q607, Q608 2201634 or 2SA1306-Y or
2201633 2SA1306-O
Q615, Q616 2212560 28C3333
Q617, O618 2211793 or 28A992-EF or
2211792 2SA992-F
Diodes
D513, D514 223163 188133
D515, D516 4000120 KB-265, Varistor
Coils
L601, L602 231134 S-0.8E
Capacitors
C509, C510 379122235 0.022 «nF, 50V, Film (DEW)
C607, C608 379121045 0.1 uF, 50V, Film (DEW)
C609, C610 379124735 0.047 uF, 50V, Film (DEW)
C613~C616 379121045 0.1 wF, 50V, Film (DEW)
Resistors
R531, R532 5210062 NO6HR4.7KBD, Semi-fixed
R601, R602 442522224 2.2KQ, 1/2W, Metal oxide
film
R603, R604 442522214 2200, 1/2W, Metal oxide film
R607~R610 442520224 2.20, 1/2W, Metal oxide film
R615~R618 4000078 0.330, 5W, Metal plate
R619, R620 441720104 10, 2W, Metal oxide film
R645, R646 441720824 8.20, 2W, Metal oxide film
Jumper socket
JL906 25050268 NSCT-4P96
Plate
27300877 Bus line
VIDEO TERMINAL PC BOARD (NAETC-3116-3)
— PARTS LIST
CIRCUIT NO. PART NO. DESCRIPTION
Diodes
D281~D283 223163 188133
Terminals
P281 25045225 NPJ-3PDBL101
P282 25045181 NPJ-2PDBL71
Relays
RL281~RL283 25065298 NRL-1IP1A-DC12-40
SPEAKER & PROTECTOR CIRCUIT PC BOARD
(NAETC-3117-3) — PARTS LIST
CIRCUIT NO. PARTS NO. DESCRIPTION
IC
Q851 222584 TA7317P
Diodes
D852 223145 182076TD
D853 224650623 or HZ6.2EB3 or
224150623 or O5AZ6.2Z or
224450623 MTZ6.2C, Zener
D854 223163 188133
D931, D961 22380013 RDF02M
Capacitors
C851 354722219 220 uF, 6.3V, Elect.
C852 354742209 22 pF, 16V, Elect.
C853 354784799 0.47 «F, SOV, Elect.
C855 354743319 330 uF, 16V, Elect.
C857 354744719 470 wF, 16V, Elect.
C858, C859 379122235 0.022 uF, 50V, Film (DEW)
C961 354741029 1000 uF, 16V, Elect.
Resistors
R861, R961 442522294 0.220, 1/2W, Metal oxide
film
R875, R876 441623914 3902, 1W, Metal oxide film
Terminal
P851 25060124 NTM-8PDMN057
Relay
RL&51 25065316 NRL-2P7A-DC12-43
Switch
S85 la 25065361 NSS-44137
Sockets
P853 2000794 NSAS-4P750
P854 2000795 NSAS-4P751
Jumper socket
JL853 25050280 NSCT-3P108
MUTING SWITCH CIRCUIT PC BOARD (NASW-3121-3)
— PARTS LIST
CIRCUIT NO. PART NO. DESCRIPTION
Capacitors
C331, C332 354782299 0.22 uF, 50V, Elect.
