Onkyo A-8850 Service Manual

A-8850 ' A-8850

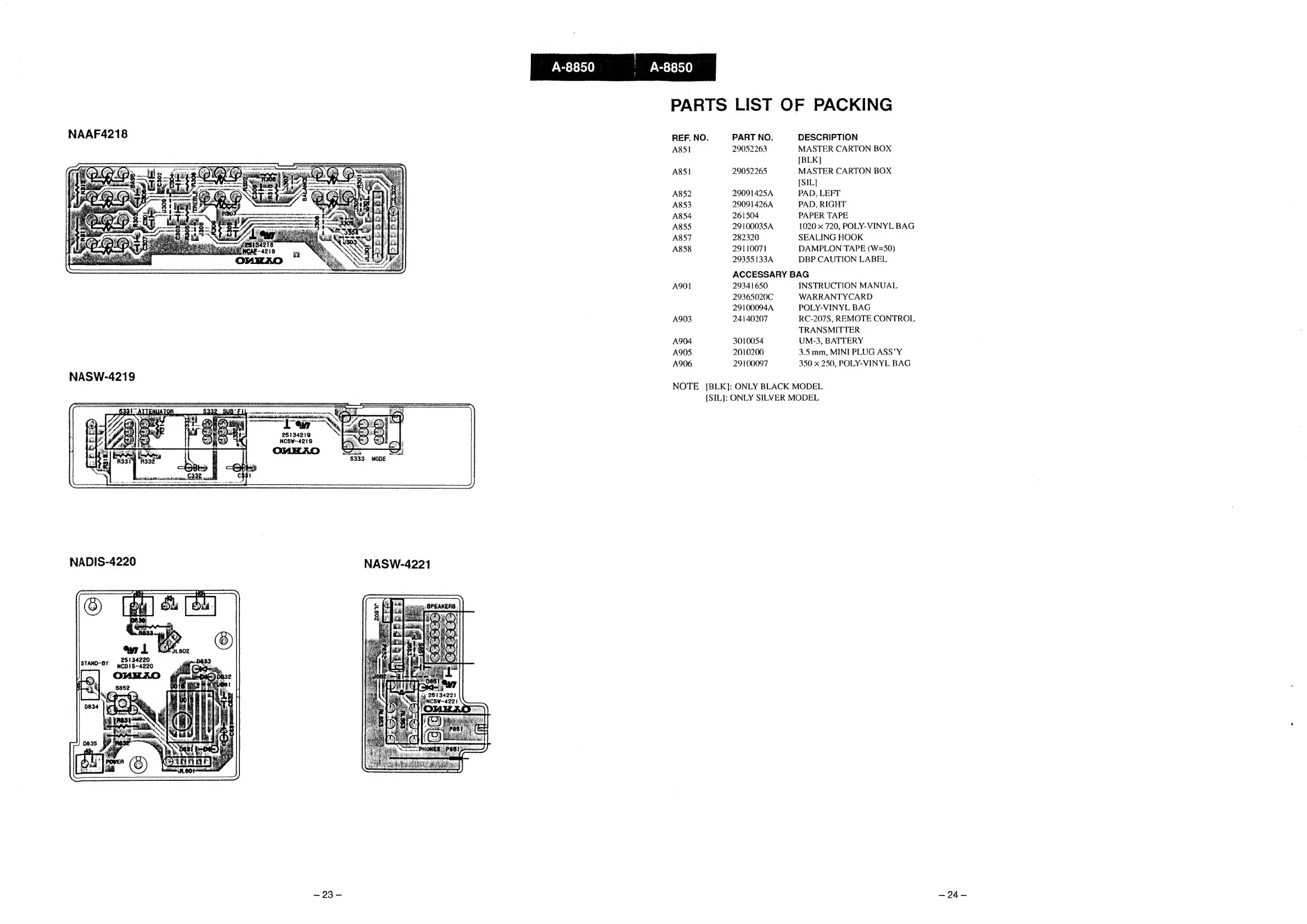

PARTS LIST OF PACKING
NAAF4218
REF.
NO.
PART
NO.
DESCRIPTION
A851
29052263
MASTER
CARTON
BOX
[BLK]
A851
29052265
MASTER
CARTON
BOX
[SIL]
A852
29091425A
PAD,
LEFT
A853
29091426A
PAD,
RIGHT
A854
261504
PAPER
TAPE
A855
29100035A
1020
x
720,
POLY-VINYL
BAG
A857
282320
SEALING
HOOK
A858
29110071
DAMPLON
TAPE
(W=S0)
29355
133A
DBP
CAUTION
LABEL
ACCESSARY
BAG
A901
29341650
INSTRUCTION
MANUAL
29365020C WARRANTYCARD
29100094A
POLY-VINYL
BAG
A903
24140207
RC-207S,
REMOTE
CONTROL
TRANSMITTER
A904
3010054
UM-3,
BATTERY
A905
2010200
3.5mm,
MINI
PLUG
ASS’Y
A906
29100097 350
x
250,
POLY-VINYL
BAG
NASW-4219
NOTE [BLK]: ONLY BLACK MODEL
[SIL]: ONLY SILVER MODEL
25134219
NCSW-4219
NADIS-4220 NASW-4221
25134220
STAND-BY Wcp18-4220
—~23-

Onkyo A-8850 Specifications

General

Input Sensitivity (MM)	2.5 mV
Total Harmonic Distortion	0.008%
Input Sensitivity	150 mV (line in)
Dimensions	435 x 171 x 398mm (W x H x D)
Damping Factor	50
Signal to Noise Ratio (MM)	80 dB
Speaker Load Impedance	4 ohms minimum
Speaker Impedance	4Ω-16Ω
Tone Control	Bass, Treble
