Onkyo A-8850 Service Manual

A-8850 :

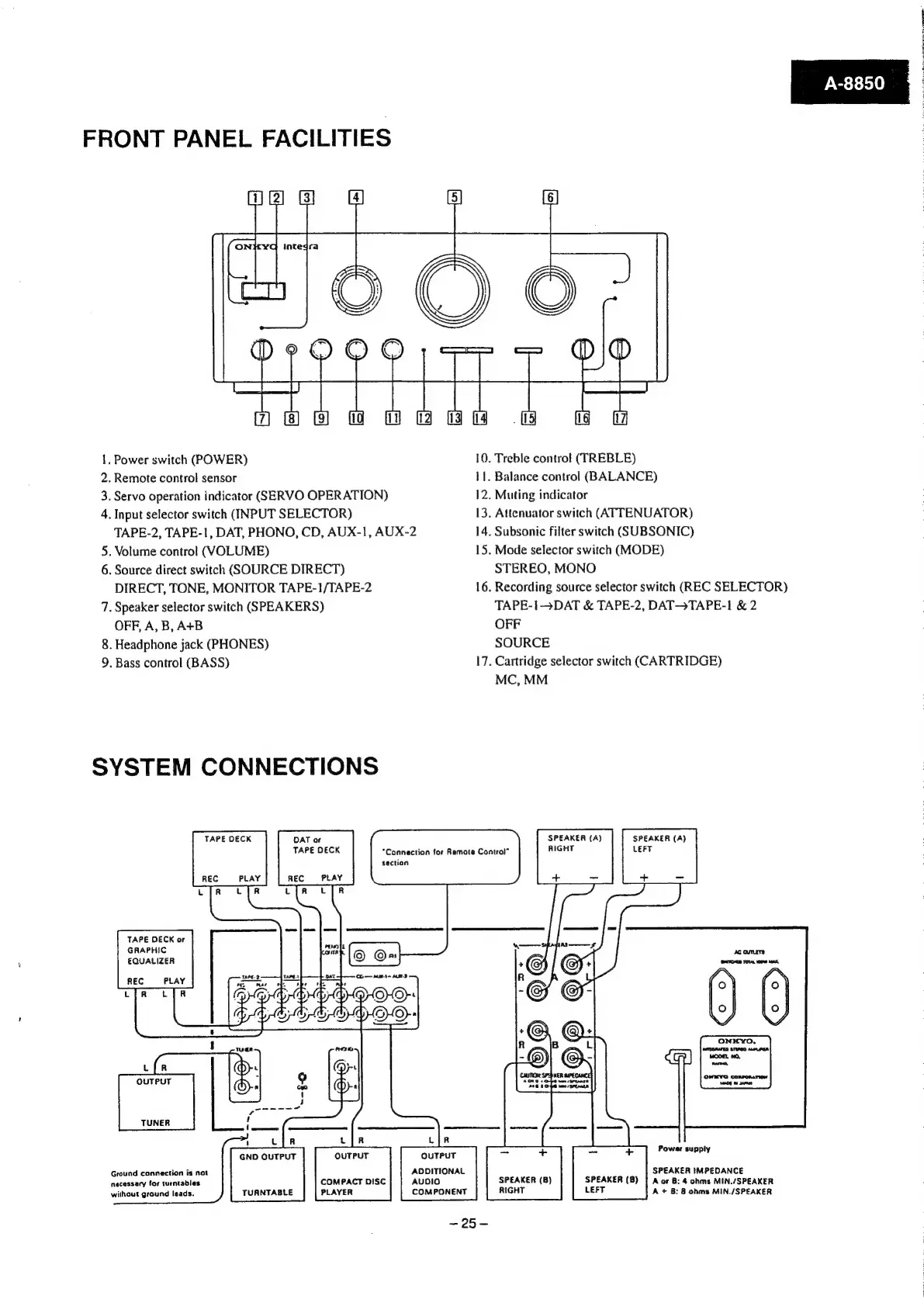

FRONT PANEL FACILITIES
1. Power switch (POWER) 10. Treble control (TREBLE)
2. Remote control sensor 11. Balance control (BALANCE)
3. Servo operation indicator (SERVO OPERATION) 12. Muting indicator
4. Input selector switch (INPUT SELECTOR) 13. Atlenuator switch (ATTENUATOR)
TAPE-2, TAPE-1, DAT, PHONO, CD, AUX-1, AUX-2 14. Subsonic filter switch (SUBSONIC)
5. Volume control (VOLUME) 15. Mode selector switch (MODE)
6. Source direct switch (SOURCE DIRECT) STEREO, MONO
DIRECT, TONE, MONITOR TAPE-1/TAPE-2 16. Recording source selector switch (REC SELECTOR)
7, Speaker selector switch (SPEAKERS) TAPE-1->DAT & TAPE-2, DAT-TAPE-1 & 2
OFF, A, B, A+B OFF
8. Headphone jack (PHONES) SOURCE
9, Bass control (BASS) 17. Cartridge selector switch (CARTRIDGE)
MC, MM
SYSTEM CONNECTIONS
TAPE DECK DAT of SPEAKER (A) SPEAKER (A)
TAPE DECK AIGHT LEFT
“Connection for Remote Control”
section
REC
PLAY
+
TAPE DECK or
GRAPHIC
EQUALIZER
Power supply
OUTPUT OUTPUT
ADDITIONAL
AUDIO
COMPONENT
GND OUTPUT
SPEAKER IMPEDANCE
Aor B: 4 ohms MIN./SPEAKER
A + 8: 8 ohms MIN./SPEAKER
Ground connection is not
nacessacy for turntables
without ground leads.
SPEAKER (B)
RIGHT
SPEAKER (8)
LEFT
COMPACT DISC
PLAYER
TUANTABLE
—25-

Onkyo A-8850 Specifications

General

Input Sensitivity (MM)	2.5 mV
Total Harmonic Distortion	0.008%
Input Sensitivity	150 mV (line in)
Dimensions	435 x 171 x 398mm (W x H x D)
Damping Factor	50
Signal to Noise Ratio (MM)	80 dB
Speaker Load Impedance	4 ohms minimum
Speaker Impedance	4Ω-16Ω
Tone Control	Bass, Treble
