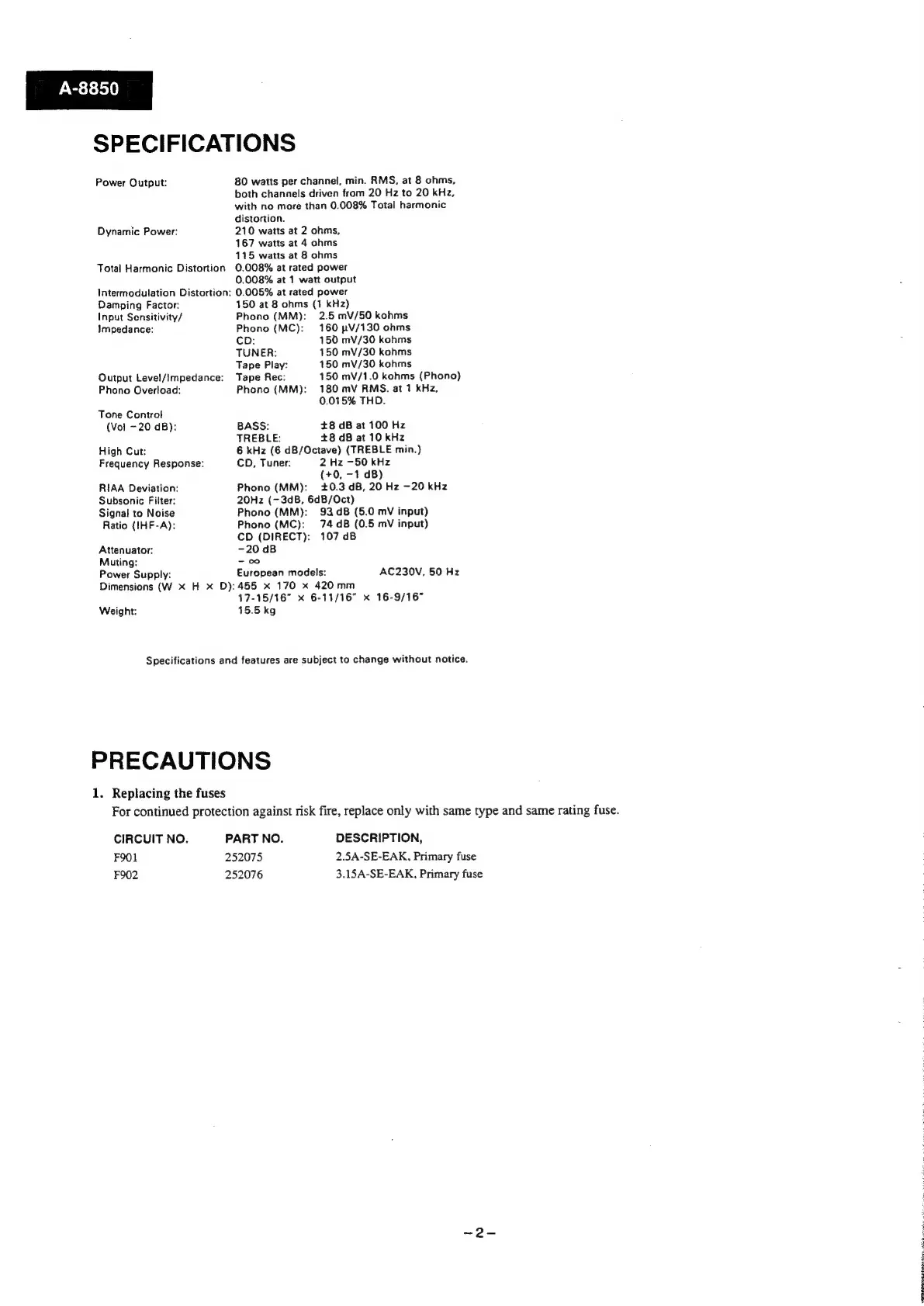

A-8850
SPECIFICATIONS
Power
Output:
80
watts
per
channel,
min.
RMS,
at
8
ohms,
both
channels
driven
from
20
Hz
to
20
kHz,
with
no
more
than
0.008%
Total
harmonic
distortion.
Dynamic
Power:
210
watts
at
2
ohms,
167
watts
at
4
ohms
115
watts
at
8
ohms
Total
Harmonic
Distortion
0.008%
at
rated
power
0.008%
at
1
watt
output
Intermodulation
Distortion:
0.005%
at
rated
power
Damping
Factor:
150
at
8
ohms
(1
kHz)
Input
Sensitivity/
Phono
(MM):
2.5
mV/50
kohms
Impedance:
Phono
(MC):
160
pV/130
ohms
CD:
150
mV/30
kohms
TUNER:
150
mV/30
kohms
Tape
Play:
150
mV/30
kohms
Output
Level/Impedance:
Tape
Rec:
150
mV/1.0
kohms
(Phono)
Phono
Overload:
Phono
(MM):
180
mV
RMS.
at
1
kHz,
0.015%
THD.
Tone
Control
(Vol
~20
dB):
BASS:
+8
dB
at
100
Hz
TREBLE:
+8
dB
at
10
kHz
High
Cut:
6
kHz
(6
dB/Octave)
(TREBLE
min.)
Frequency
Response:
CD,
Tuner:
2
Hz
-50
kHz
{+0,
-1
dB)
RIAA
Deviation:
Phono
(MM):
+0.3
dB,
20
Hz
-20
kHz
Subsonic
Filter:
20Hz
(-3dB,
6dB/Oct)
Signal
to
Noise
Phono
(MM):
93
d8
(5.0
mV
input)
Ratio
(IHF-A):
Phono
(MC):
74
dB
(0.5
mV
input)
CD
(DIRECT):
107
dB
Attenuator:
-20
dB
Muting:
-
00
Power
Supply:
European
models:
AC230V,
50
Hz
Dimensions
(W
x
H
x
D):455
x
170
x
420mm
17-15/16"
x
6-11/16"
x
16-9/16"
Weight:
15.5
kg
Specifications
and
features
are
subject
to
change
without
notice.
PRECAUTIONS
1.
Replacing
the
fuses
For
continued
protection
against
risk
fire,
replace
only
with
same
type
and
same
rating
fuse.
CIRCUIT
NO.
PART
NO.
DESCRIPTION,
F901
252075
2.5A-SE-EAK,
Primary
fuse
F902
252076
3.15A-SE-EAK,
Primary
fuse
