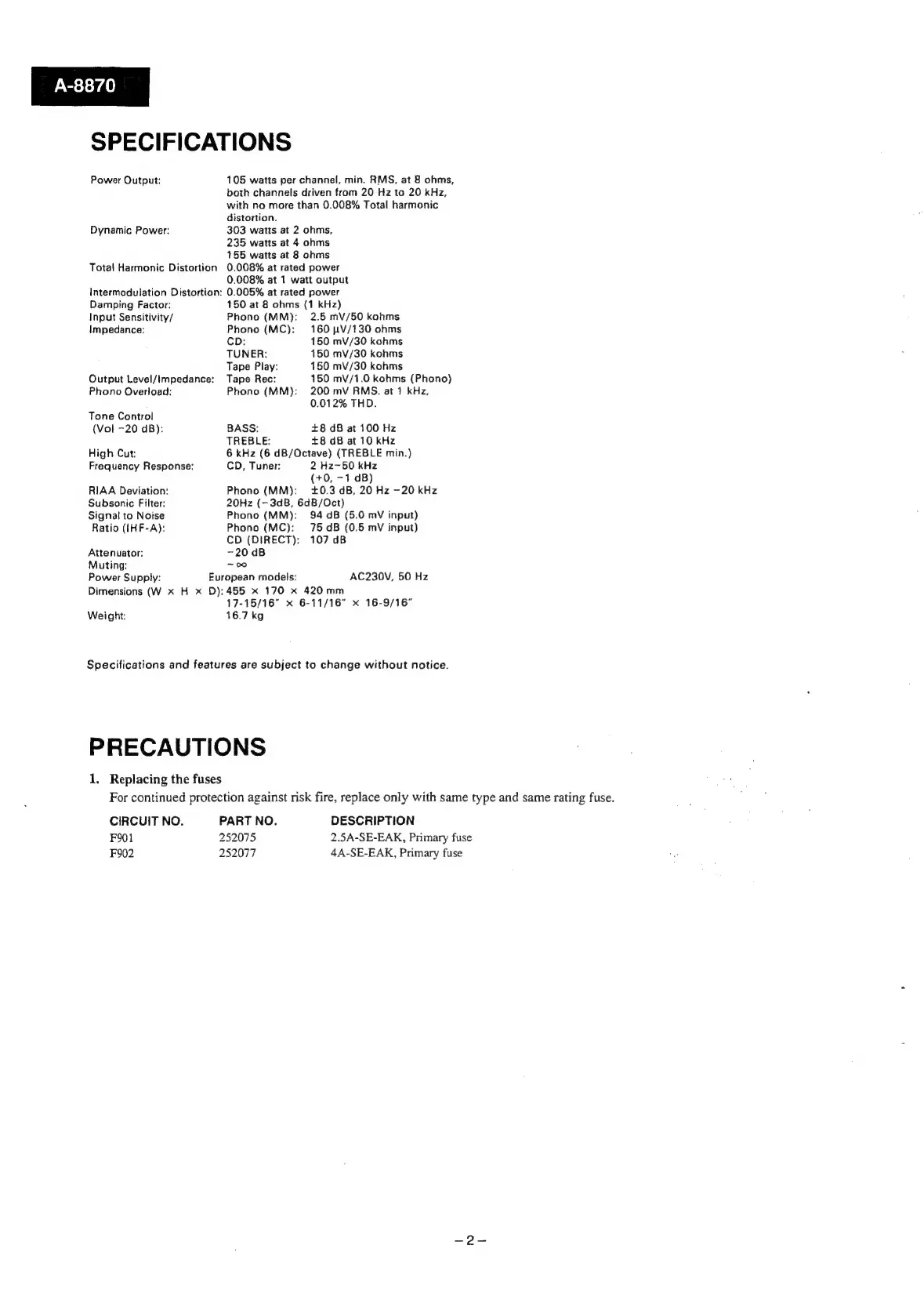

A-8870
SPECIFICATIONS
Power Output: 105 watts per channel, min. RMS, at 8 ohms,
both channels driven from 20 Hz to 20 kHz,
with no more than 0.008% Total harmonic
distortion.
Dynamic Power: 303 watts at 2 ohms,
235 watts at 4 ohms
155 watts at 8 ohms
Total Harmonic Distortion 0.008% at rated power
0.008% at 1 watt output
Intermodulation Distortion: 0.005% at rated power
Damping Factor: 150 at 8 ohms (1 kHz)
Input Sensitivity/ Phono (MM): 2.5 mV/50 kohms
Impedance: Phono (MC): 160 1V/130 ohms
CD: 150 mV/30 kohms
TUNER: 150 mV/30 kohms
Tape Play: 150 mV/30 kohms
Output Level/Impedance: Tape Rec: 150 mV/1.0 kohms (Phono)
Phono Overload: Phono (MM): 200 mV RMS. at 1 kHz,
0.012% THD.
Tone Control
{Vol -20 dB): BASS: +8 dB at 100 Hz
TREBLE: +8 dB at 10 kHz
High Cut: 6 kHz (6 dB/Octave) (TREBLE min.)
Frequency Response: CD, Tuner: 2 Hz-50 kHz
(+0, ~1 dB)
RIAA Deviation: Phono (MM): +0.3 dB, 20 Hz ~20 kHz
Subsonic Filter: 20Hz (-3dB, 6dB/Oct)
Signal to Noise Phono (MM): 94 dB (5.0 mV input)
Ratio (\HF-A): Phono (MC): 75 dB (0.5 mV input)
CD (DIRECT): 107 dB
Attenuator: -20 dB
Muting: ~ 09
Power Supply: European models: AC230V, 50 Hz
Dimensions (W x H x D):455 x 170 x 420 mm
17-15/16" x 6-11/16" x 16-9/16"
Weight: 16.7 kg
Specifications and features are subject to change without notice.
PRECAUTIONS
1. Replacing the fuses
For continued protection against risk fire, replace only with same type and same rating fuse.
CIRCUIT NO. PART NO. DESCRIPTION
F901 252075 2.5A-SE-EAK, Primary fuse
F902 252077 4A-SE-EAK, Primary fuse
