Onkyo ABX-100 User Manual

En-6

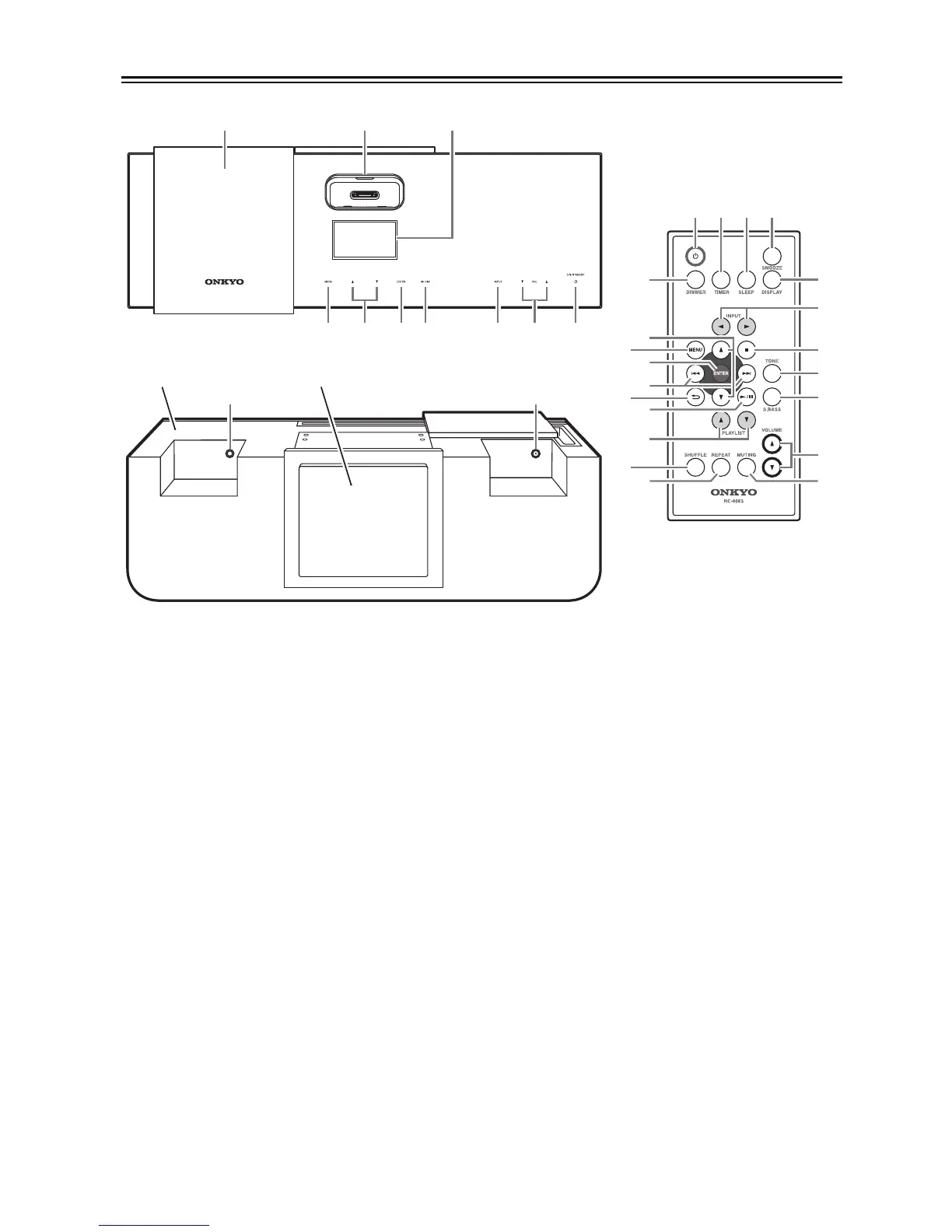

Getting to Know the ABX-100
The page numbers in parentheses show where you can find the main explanation for each item.
Top/Rear Panel
a
Slide cover (7)
b iPod/iPhone Dock (7)
c Display (10)
d MENU button (8)
e []/[] buttons (8)
f ENTER button (8)
g [/] button (10)
h INPUT button (8)
i VOL []/[] buttons (8, 10)
j  ON/STANDBY button (8)
k LINE IN jack (7)
l DC IN (15V 2A) jack
Remote Controller
m
 button (8)
n TIMER button (11, 12, 13)
o SLEEP button (13)
p SNOOZE button (13)
q DISPLAY button (10, 11, 12)
r INPUT []/[] buttons (8)
s [] button
t TONE button (8)
u S.BASS button (9)
v VOLUME []/[] buttons (8, 10)
w MUTING button (8)
x REPEAT button (10)
y SHUFFLE button (10)
z PLAYLIST []/[] buttons (10)
A [/] button (10)
B [] button
C []/[] buttons (10)
D ENTER button (8, 10, 11, 12)
E MENU button (8, 10)
F []/[] buttons (8, 10, 11, 12, 13)
G DIMMER button (8)
4
6
7
h
j
5
i
1
2
3
k
x
z
F
E
y
B
A
D
s
w
l
m
G
n
o
p
t
C
q
r
u
v
Top Panel
Rear Panel
Remote Controller
Bottom

Onkyo ABX-100 Specifications

Power

power supply	DC IN 15 V, 2 A
power consumption	18 W
no-sound power consumption	3.9 W
stand-by power consumption	0.5 W

Amplifier

power output	2ch × 10 W (6 Ω, 1 kHz, 1% THD)
total harmonic distortion	1 %
input sensitivity and impedance	1000 mV/ 15.6 kΩ

Speakers

type	Full-Range bass reflex
unit	6.4 cm (2-1/2") cone
magnetic shielding	magnetically shielded

Weight and Dimensions

dimensions	430 × 131 × 143 mm
dimensions (inches)	16-15/16 × 5-3/16 × 5-5/8 inches
weight	2.4 kg
