Onkyo C-705X User Manual

10
Connecting to the other components
Before connecting
• Do not connect the unit’s AC power cord to a wall outlet until you have completed all the other
connections.
• On each pair of connectors, a red connector (marked R) corresponds to the right channel, and a
white connector (marked L) to the left channel. Connect white plugs of audio connection cables to
L connectors and connect red plugs of audio connection cables to R connectors.
• Insert the plug securely. If the connection is incomplete, noise or malfunction may result.
Improper connection
Insert completely
• When you use a digital audio optical cable, do not bend it sharply nor coil it tightly.
• Bundling an audio connection cable with the power cord or speaker cord may degrade the sound
quality.
• To use the unit with the other Onkyo Separate Collection series components, follow the connection
diagram in the A-905X instruction manual to connect the unit to the system.
Note:
The 230 V model is shown in the following illustrations.

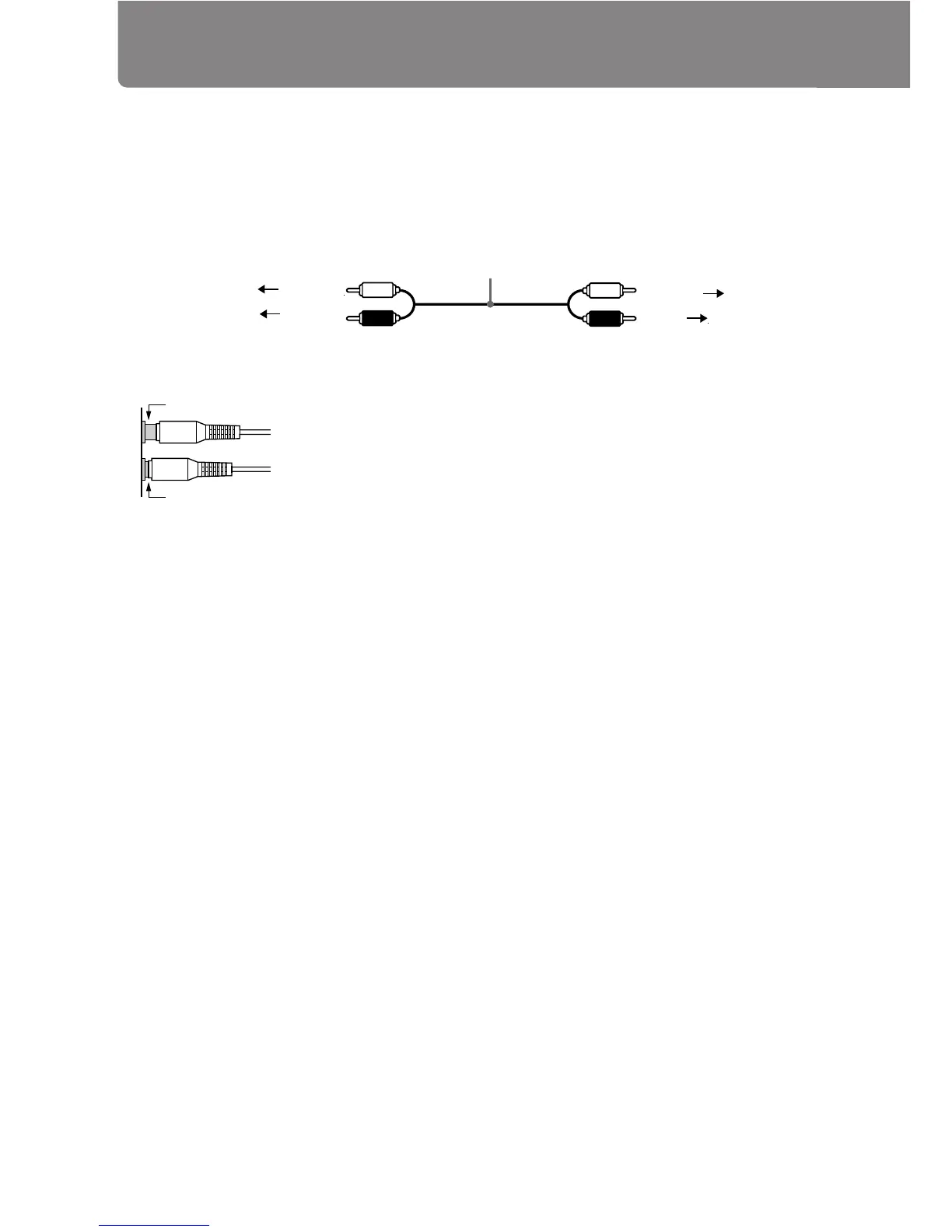

Audio connection cable
To L connectors
(White)
To R connectors (Red)
(White)
To L connectors
(Red)
To R connectors

Onkyo C-705X Specifications

Audio Specifications

sampling frequency	352.8 kHz
frequency response	5 Hz – 20 kHz
total harmonic distortion	0.005% (at 1 kHz)
dynamic range	96 dB
signal to noise ratio	90 dB
channel separation	85 dB (at 1 kHz)
output level	2 volts r.m.s.

Power

power consumption (230 V, 50 Hz model)	8 watts
power consumption (120 V, 60 Hz model)	9 watts
power supply rating (230 V, 50 Hz)	AC 230 V, 50 Hz
power supply rating (120 V, 60 Hz)	AC 120 V, 60 Hz

Weight and Dimensions

dimensions	205 x 91 x 275 mm
dimensions (inch)	8-1/16" x 3-9/16" x 10-3/16"
weight	2.2 kg, 4.9 lbs.
