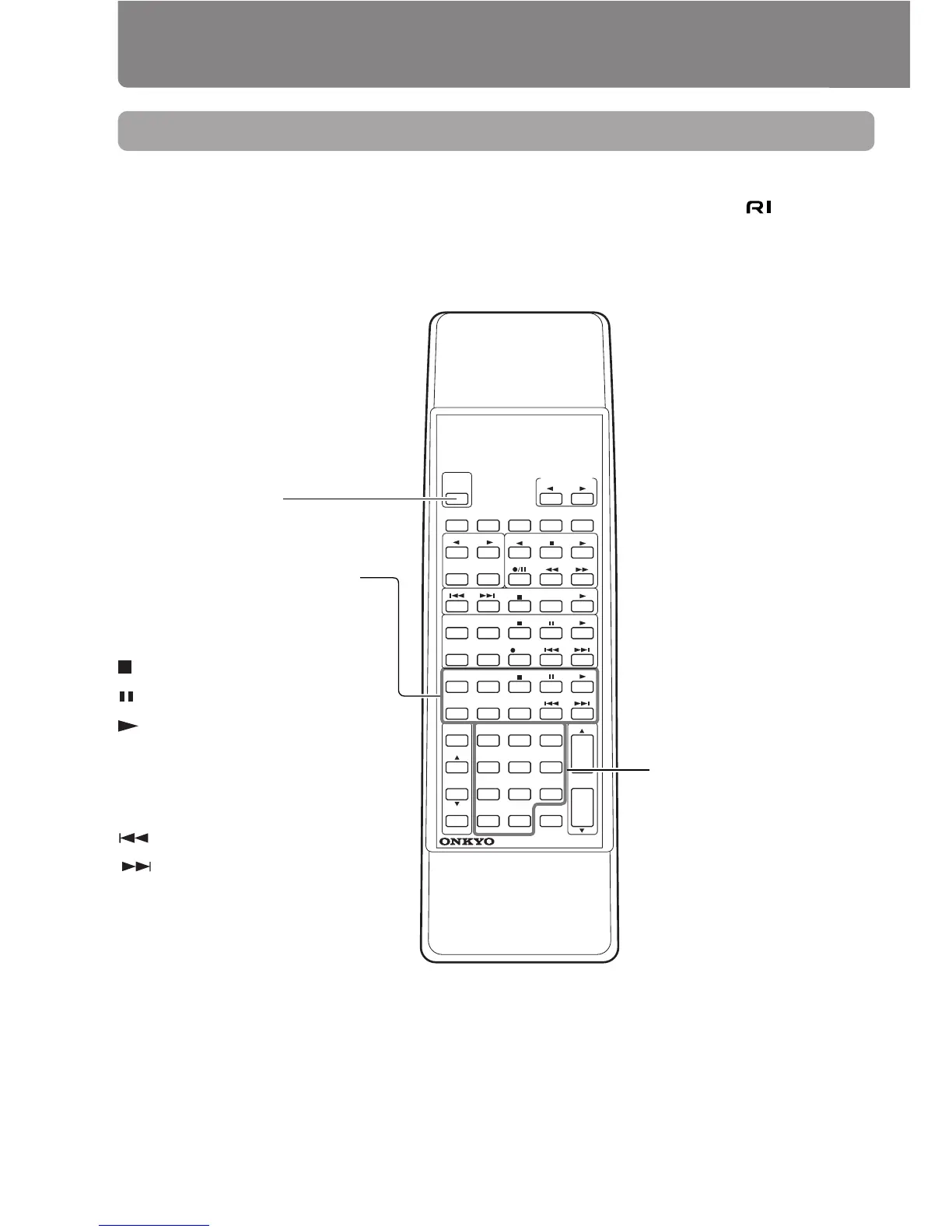

Remote controller
Indexed to parts and controls
RC-398S
Number buttons [14, 17]
1~9, 10/0 : Number buttons
--/--- : Ten‘s hold button
POWER
CLOCK CALL
TUNER
PRESET
SLEEP
FM AM
REPEAT SCROLL
PLAY MODE CLEAR
REC
REPEAT RANDOM
MEMORY CLEAR
TIMER
1
ACOUSTIC
PRESENCE
DVD
2
DISC
CD/MD
EFFECT
PAUSE/STEP
3
456
UP/DOWN
789
ENTER - - / - - - 10/0 MUTING
VOLUME
G.EQUALIZER
TAPE
MODE
INPUT SELECTOR
MD
CD
RC-398SREMOTE CONTROLLER
Remote controller supplied with the A-905X (RC-398S)
To operate the supplied remote controller, make the appropriate connection to the remote con-
nectors.
CD player operation buttons
REPEAT : Repeat mode button [18]
RANDOM : Random play button [16]
: Stop button [13, 17]
: Pause button [13]
: Play button [13, 14, 17, 18]
MEMORY : Memory button [17, 18]
CLEAR : Clear button [17]
DISC : Disc button (can not be used.)
: Track down button [14]
: Track up button [14]
POWER button [13]

Onkyo C-705X Specifications

Audio Specifications

sampling frequency	352.8 kHz
frequency response	5 Hz – 20 kHz
total harmonic distortion	0.005% (at 1 kHz)
dynamic range	96 dB
signal to noise ratio	90 dB
channel separation	85 dB (at 1 kHz)
output level	2 volts r.m.s.

Power

power consumption (230 V, 50 Hz model)	8 watts
power consumption (120 V, 60 Hz model)	9 watts
power supply rating (230 V, 50 Hz)	AC 230 V, 50 Hz
power supply rating (120 V, 60 Hz)	AC 120 V, 60 Hz

Weight and Dimensions

dimensions	205 x 91 x 275 mm
dimensions (inch)	8-1/16" x 3-9/16" x 10-3/16"
weight	2.2 kg, 4.9 lbs.
