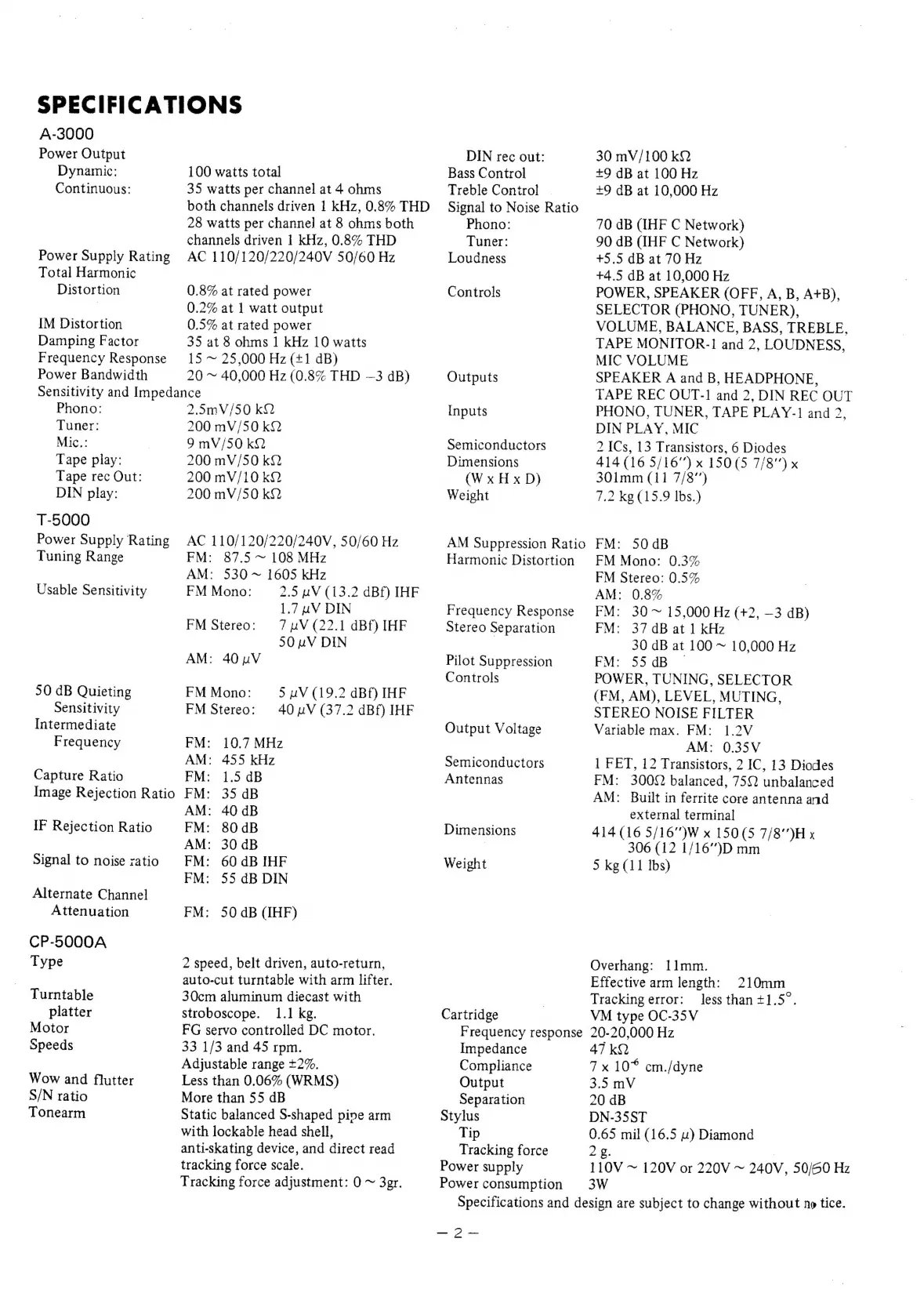

SPECIFICATIONS
A-3000
Power Output
Dynamic:
Continuous:
Power Supply Rating
Total Harmonic
Distortion
IM Distortion
Damping Factor
Frequency Response
Power Bandwidth
100 watts total
35 watts per channel at 4 ohms
both channels driven 1 kHz, 0.8% THD
28 watts per channel] at 8 ohms both
channels driven 1 kHz, 0.8% THD
AC 110/120/220/240V 50/60 Hz
0.8% at rated power
0.2% at 1 watt output
0.5% at rated power
35 at 8 ohms 1 kHz 10 watts
15 ~ 25,000 Hz (+1 dB)
20 ~ 40,000 Hz (0.8% THD —3 dB)
Sensitivity and Impedance
Phono:
Tuner:
Mic.:
Tape play:
Tape rec Out:
DIN play:
T-5000
Power Supply Rating
Tuning Range
Usable Sensitivity
50 dB Quieting
Sensitivity
Intermediate
Frequency
Capture Ratio
Image Rejection Ratio
IF Rejection Ratio
Signal to noise ratio
Alternate Channel
Attenuation
CP-5000A
Type
Turntable
platter
Motor
Speeds
Wow and flutter
S/N ratio
Tonearm
2.5mV/50 kQ
200 mV/50 kQ
9mV/50kQ2
200 mV/50 kQ
200 mV/10 kQ
200 mV/50 kQ
AC 110/120/220/240V, 50/60 Hz
FM: 87.5 ~ 108 MHz
AM: 530 ~ 1605 kHz
FM Mono: 2.5 uV (13.2 dBf) IHF
1.7 uV DIN
FM Stereo: 7yuV (22.1 dBf) IHF
50 nV DIN
AM: 40 uV
FM Mono: 5 uV (19.2 dBf) IHF
FM Stereo: 40 uV (37.2 dBf) IHF
FM: 10.7 MHz
AM: 455 kHz
FM: 1.5 dB
FM: 35 dB
AM: 40 dB
FM: 80dB
AM: 30dB
FM: 60 dB IHF
FM: 55 dBDIN
FM: 50 dB (IHF)
2 speed, belt driven, auto-return,
auto-cut turntable with arm lifter.
30cm aluminum diecast with
stroboscope. 1.1 kg.
FG servo controlled DC motor.
33 1/3 and 45 rpm.
Adjustable range +2%.
Less than 0.06% (WRMS)
More than 55 dB
Static balanced S-shaped pine arm
with lockable head shell,
anti-skating device, and direct read
tracking force scale.
Tracking force adjustment: 0 ~ 3gr.
DIN rec out:
Bass Control
Treble Control |
Signal to Noise Ratio
Phono:
Tuner:
Loudness
Controls
Outputs
Inputs
Semiconductors
Dimensions
(WxHxD)
Weight
AM Suppression Ratio
Harmonic Distortion
Frequency Response
Stereo Separation
Pilot Suppression
Controls
Output Voltage
Semiconductors
Antennas
Dimensions
Weight
Cartridge
Frequency response
Impedance
Compliance
Output
Separation
Stylus
Tip
Tracking force
Power supply
Power consumption
30 mV/100 kQ
+9 dB at 100 Hz
+9 dB at 10,000 Hz
70 dB (IHF C Network)
90 dB (IHF C Network)
+§.5 dB at 70 Hz
+4.5 dB at 10,000 Hz
POWER, SPEAKER (OFF, A, B, A+B),
SELECTOR (PHONO, TUNER),
VOLUME, BALANCE, BASS, TREBLE,
TAPE MONITOR-I and 2, LOUDNESS,
MIC VOLUME
SPEAKER A and B, HEADPHONE,
TAPE REC OUT-1 and 2, DIN REC OUT
PHONO, TUNER, TAPE PLAY-1 and 2,
DIN PLAY, MIC
2 ICs, 13 Transistors, 6 Diodes
414 (16 5/16’) x 150(5 7/8") x
301mm (11 7/8”)
7.2 kg (15.9 lbs.)
FM: SOdB
FM Mono: 0.3%
FM Stereo: 0.5%
AM: 0.8%
FM: 30~ 15,000 Hz (+2, —3 dB)
FM: 37 dB at 1 kHz
30 dB at 100 ~ 10,000 Hz
FM: 55 dB
POWER, TUNING, SELECTOR
(FM, AM), LEVEL, MUTING,
STEREO NOISE FILTER
Variable max. FM: 1.2V
AM: 0.35V
1 FET, 12 Transistors, 2 IC, 13 Diodes
FM: 300 balanced, 75Q unbalanced
AM: Built in ferrite core antenna and
external terminal
414 (16 5/16")W x 150 (5 7/8°)H x
306 (12 1/16’)D mm
5 kg (11 Ibs)
Overhang: I1lmm.
Effective arm length: 210mm
Tracking error: less than+1.5°.
VM type OC-35V
20-20,000 Hz
47 kQ
7 x 10° cm./dyne
3.5 mV
20 dB
DN-35ST
0.65 mil (16.5 u) Diamond
2 g. |
110V ~ 120V or 220V ~ 240V, 50/50 Hz
3W
Specifications and design are subject to change without no tice.
—?—
