Controls & Connectors —Continued
A
ANALOG AUDIO OUTPUT
These RCA/phono connectors can be connected to
analog audio inputs on a hi-fi amp, or AV receiver.
B
REMOTE CONTROL
These (Remote Interactive) connectors can be
connected to the connectors on your other
Onkyo AV components for interactive control.
If you’re using RIHD, do not connect anything to
these connectors.
C
OPTICAL AUDIO OUTPUT
This optical digital audio output can be connected to
an optical digital audio input on a hi-fi amp, AV
receiver, or surround sound decoder (Dolby Digital,
DTS).
D
COAXIAL AUDIO OUTPUT
This coaxial digital audio output can be connected
to a coaxial digital audio input on a hi-fi amp, AV
receiver, or surround sound decoder (Dolby Digital,
DTS).
E
HDMI OUT
This HDMI jack outputs digital video and audio and
can be connected to an HDMI input on a compatible
TV or other component.
F VIDEO OUTPUT
This RCA/phono connector can be used to connect
a TV or projector with a composite video input.
G S VIDEO OUTPUT
This connector can be used to connect a TV or pro-
jector with an S-Video input.
H COMPONENT VIDEO OUTPUT
These RCA/phono connectors can be used to con-
nect a TV or projector with component video inputs.
I AC INLET
The supplied power cord connects to this polarized
inlet. The other end of the power cord should be
connected to a suitable wall outlet. On the Austra-
lian model, the power cord is not polarized.

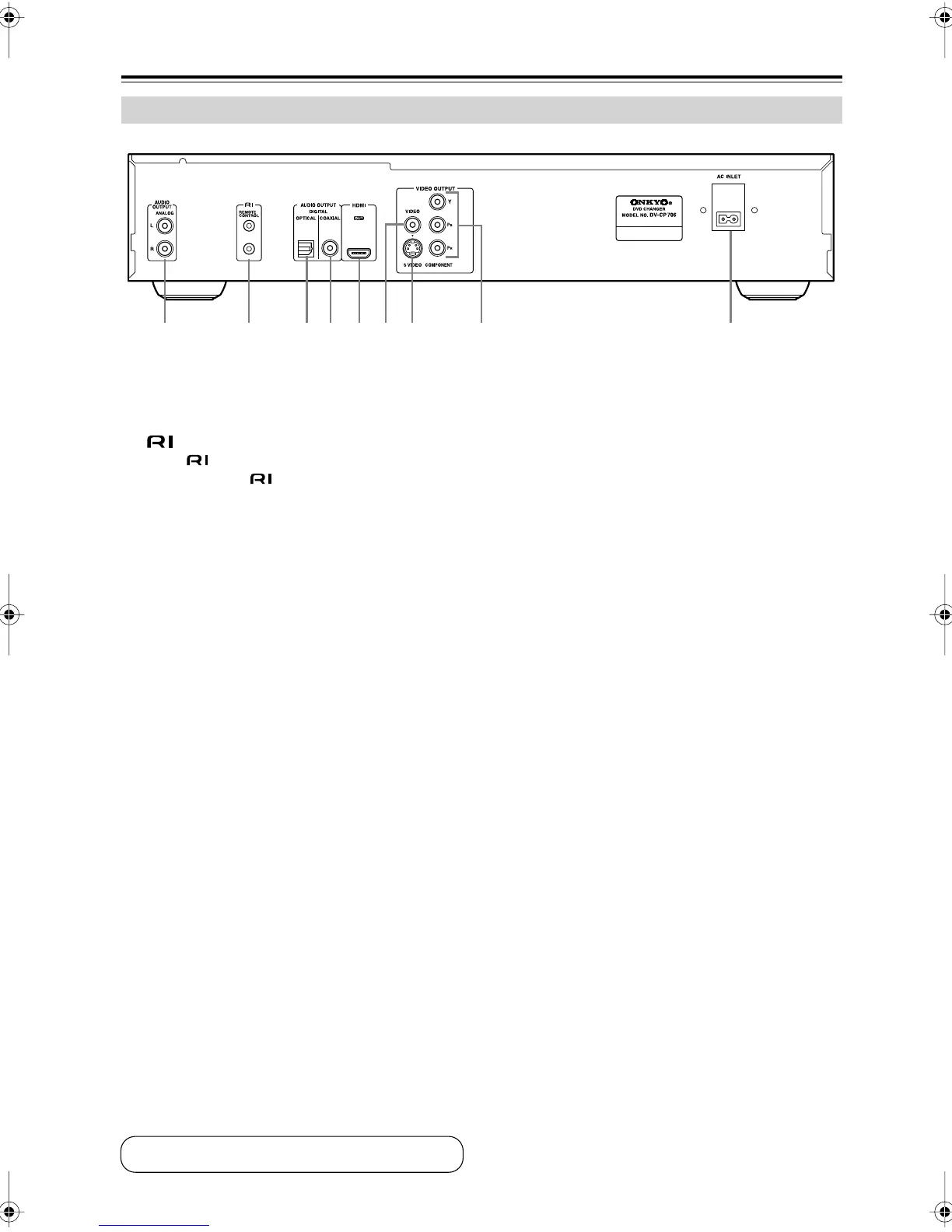

Rear Panel
1 3 4 5 6 7 982
See page 19–22 for connection information.
