DV-SP301
Cushion mounting
Screw 10742170
Bracket DVD 10727260
Cushion 8 10741230
Main plate
Felt position 10738740
On bracket support:
In the groove of Bracket DVD rotation axle
going half outside the groove
On Cam slider
Belt wheel mounting
Belt wheel (10775090)
Motor (20581790)
3.1 +/- 0.1

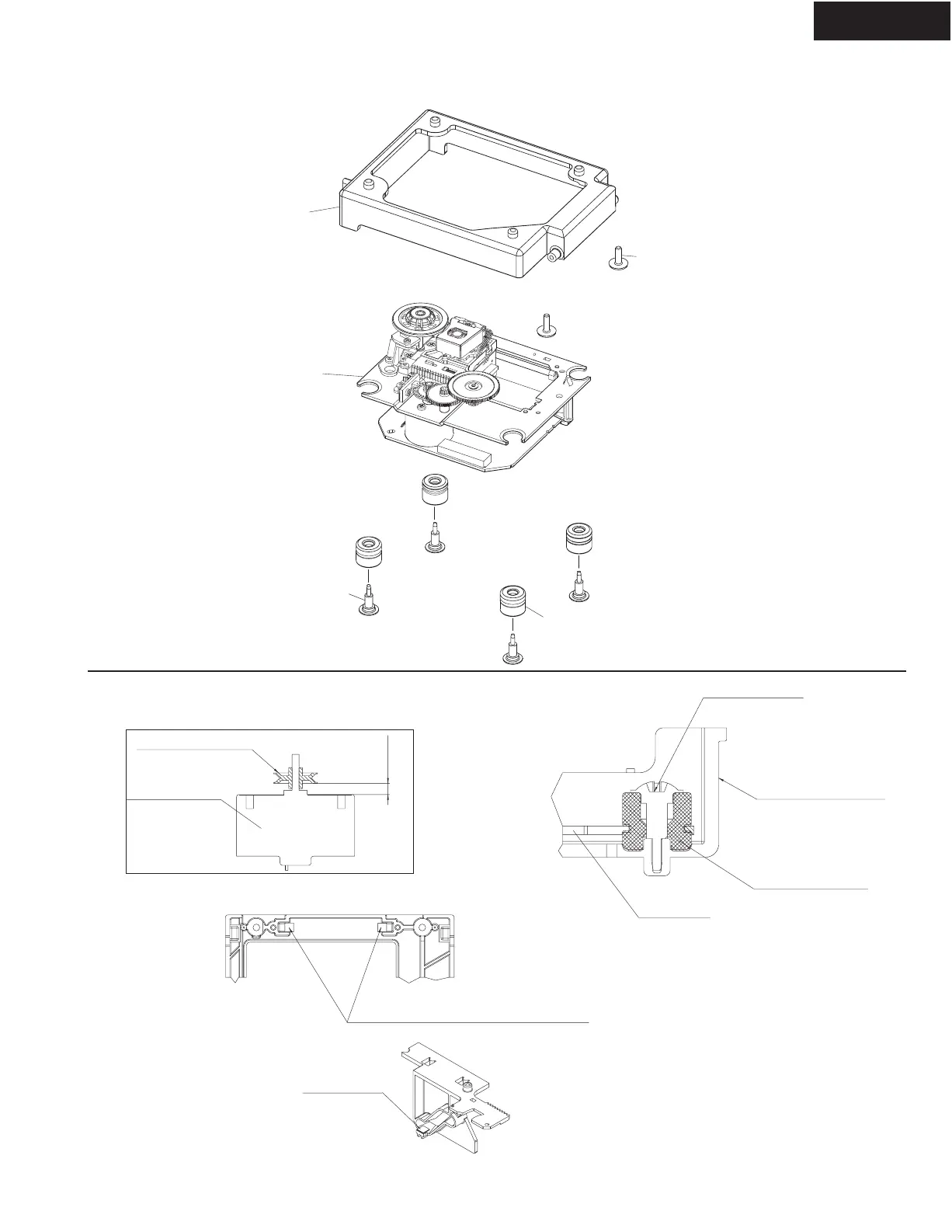

EXPLODED VIEW
DVD MECHANISM-2 (TVM503R6)
Bracket DVD
10727260
TVM503 R-6
10724940
4 x Cushion 8
10741230
4 x Screw shoulder 2 x 14.7mm
10742170
Driver moment 28N.cm (+/-3N.cm)
2 x Screw-ST 3mm x 10mm
205835800
Driver moment 25N.cm (+/- 2N.cm)
Motor assy part no. 10840810
