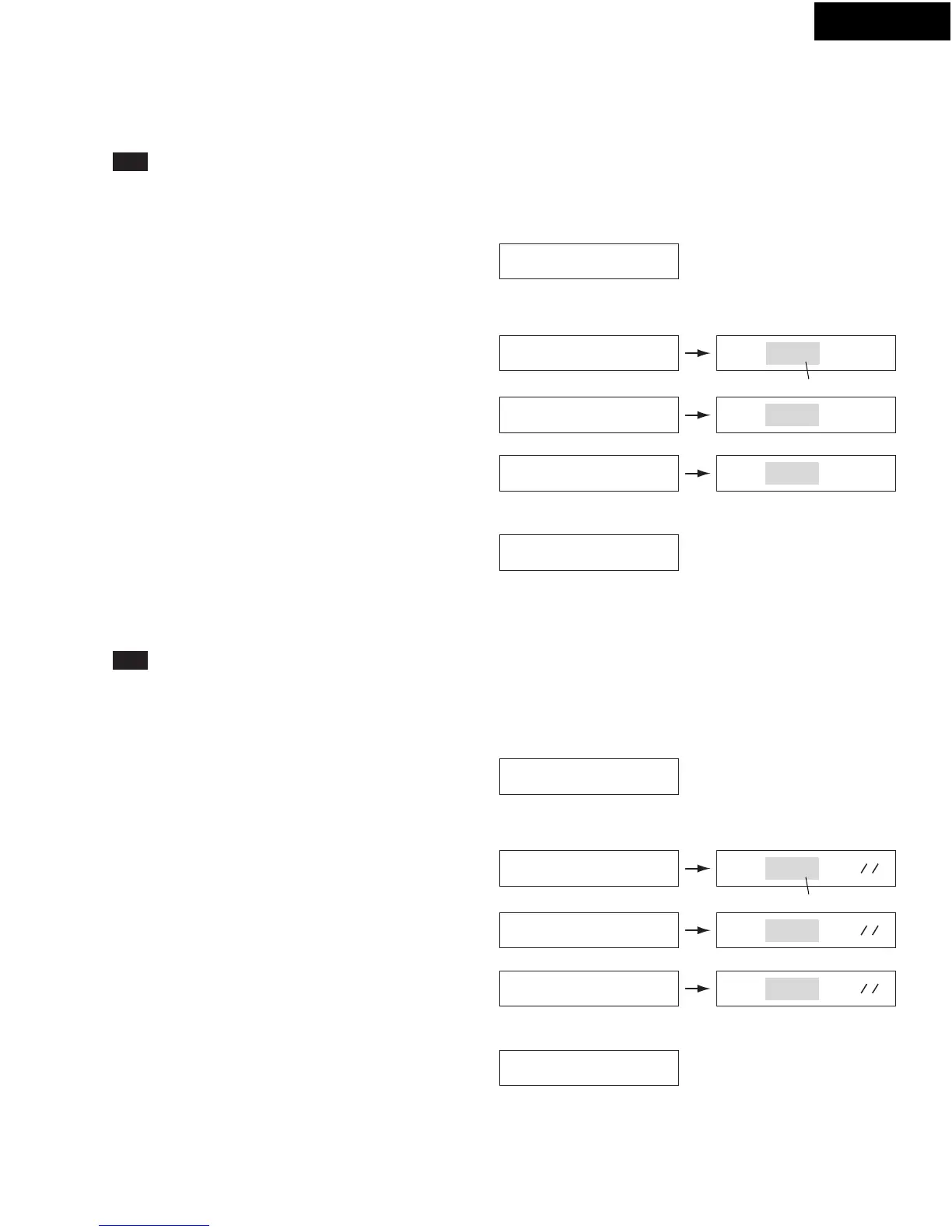

CPLAY MODE
CPLAY MID C1=XXXXAD=
CPLAY OUT C1=XXXXAD=
CPLAY IN C1=XXXXAD=
CPLAY MODE
CPLAY MODE
CPLAY MID
CPLAY OUT
CPLAY IN
CPLAY MODE
C1=XXXXAD=00
C1=XXXXAD=00
C1=XXXXAD=00
ADJUSTMENT PROCEDURES-8
MD ADJUSTMENT
Check of the error rate by the high reflectance disk
[Preparation]
(1) Loading of the high reflectance disk (TMD-381/A-BEX) to the unit at test mode state.
[Check]
(1) Turns MULTI JOG and select
CPLAY MODE
at test mode state.
(2) Press MULTI JOG.
(3) Checks that the value of C1 error rate is the value
less than 20.
This value is usually less than 10.
(4) Press MULTI JOG and check the error rate at
outer track of disk(CPLAY OUT)
(5) Press MULTI JOG and check the error rate at
inner track of disk
(6) Press the MD STOP.
(7) Press EDIT/CLEAR/NO.
(8) Take out disk from the unit by pressing EJECT.
C1 error rate
Check of the error rate by the MO disk
C1 error rate
[Preparation]
(1) Loading of the continuation recording disk to the unit at test mode state.
Refer to ADJUSTMENT PROCEDURES-7 about how to make continuation recording
[Check]
(1) Turns MULTI JOG and select
CPLAY MODE
at test mode state.
(2) Press MULTI JOG.
(3) Checks that the value of C1 error rate is the value
less than 20.
This value is usually less than 10.
(4) Press MULTI JOG and check the error rate at
outer track of disk(CPLAY OUT)
(5) Press MULTI JOG and check the error rate at
inner track of disk
(6) Press the MD STOP.
(7) Press the EDIT/CLEAR/NO.
(8) Take out disk from the unit by pressing EJECT.
