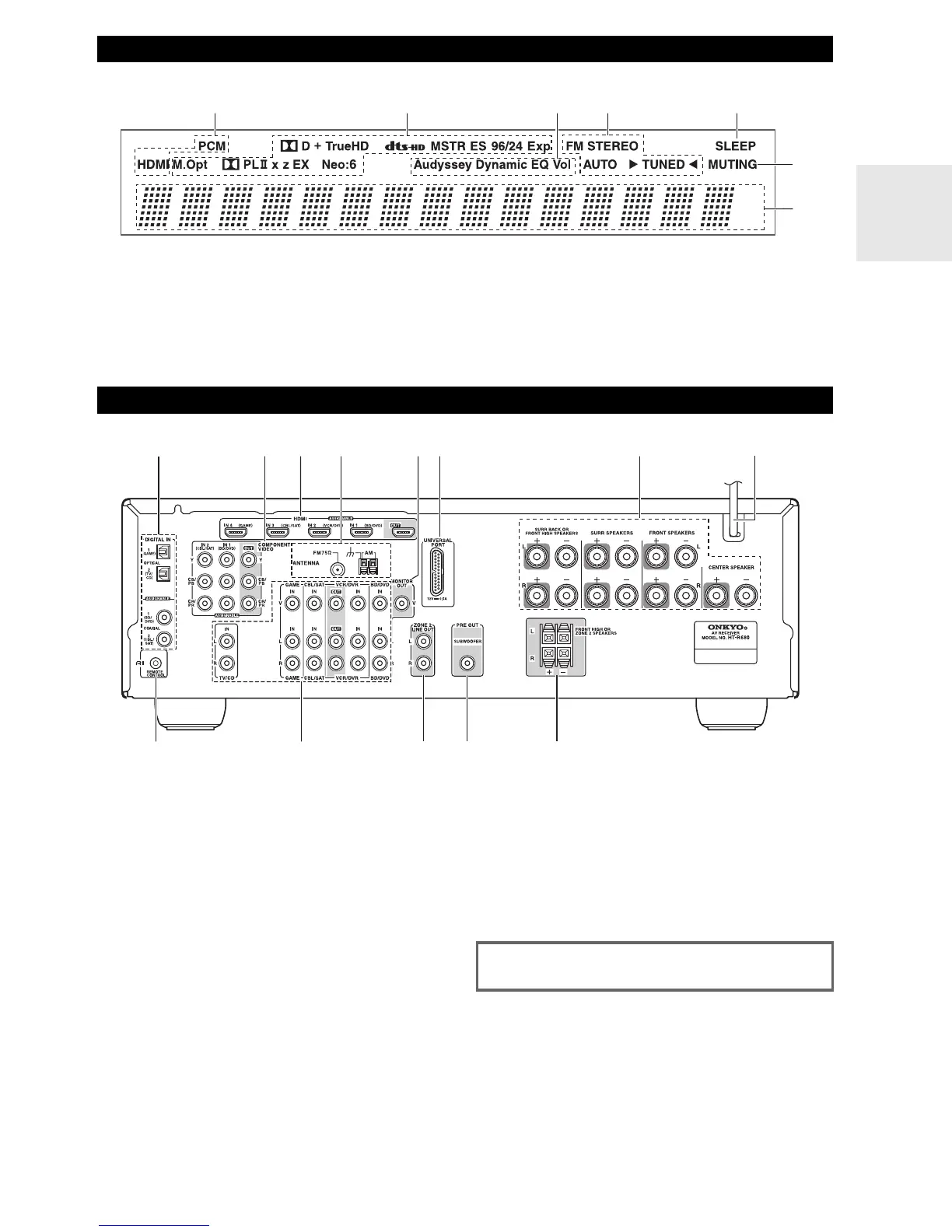

For detailed information, see the pages in parentheses.
a Audio input indicators
b Listening mode and format indicators (➔ 33, 51)
c Audyssey indicators (➔ 28, 44)
d Tuning indicators (➔ 30)
e SLEEP indicator (➔ 26)
f MUTING indicator (➔ 26)
g Message area
a DIGITAL IN OPTICAL and COAXIAL jacks
b COMPONENT VIDEO IN and OUT jacks
c HDMI IN and OUT jacks
d FM ANTENNA jack and AM ANTENNA terminal
e MONITOR OUT V jack
f UNIVERSAL PORT jack
g SPEAKERS terminals
(CENTER, FRONT, SURR and
SURR BACK OR FRONT HIGH)
h Power cord
i u REMOTE CONTROL jack
j Composite video and analog audio jacks
(BD/DVD IN, VCR/DVR IN and OUT, CBL/SAT IN,
GAME IN and TV/CD IN)
k ZONE 2 LINE OUT jacks
l SUBWOOFER PRE OUT jack
m FRONT HIGH OR ZONE 2 SPEAKERS terminals
Display
ab e
g
f
cd
Rear Panel
acb
d
h
ef
g
i
jkl
m
See “Connecting the AV Receiver” for connection infor-
mation (➔ 16 to 23).
