Speaker Package
For detailed information, see the pages in parentheses.
a Standby/On indicator
With the Auto Standby function, the SKW-770/780
automatically turns on when an input signal is
detected in Standby mode. When there’s no input sig-
nal for a while, the SKW-770/780 automatically enters
Standby mode.
b OUTPUT LEVEL control (➔ 25)
This control is used to adjust the volume of the sub-
woofer.
c LINE INPUT (➔ 17)
This RCA input should be connected to the SUB-
WOOFER PRE OUT on the AV receiver with sup-
plied RCA cable.
Note
• The Auto Standby function turns the subwoofer on when the
input signal exceeds a certain level. If the Auto Standby function
does not work reliably, try slightly increasing or decreasing the
subwoofer output level on the AV receiver (➔ 42).

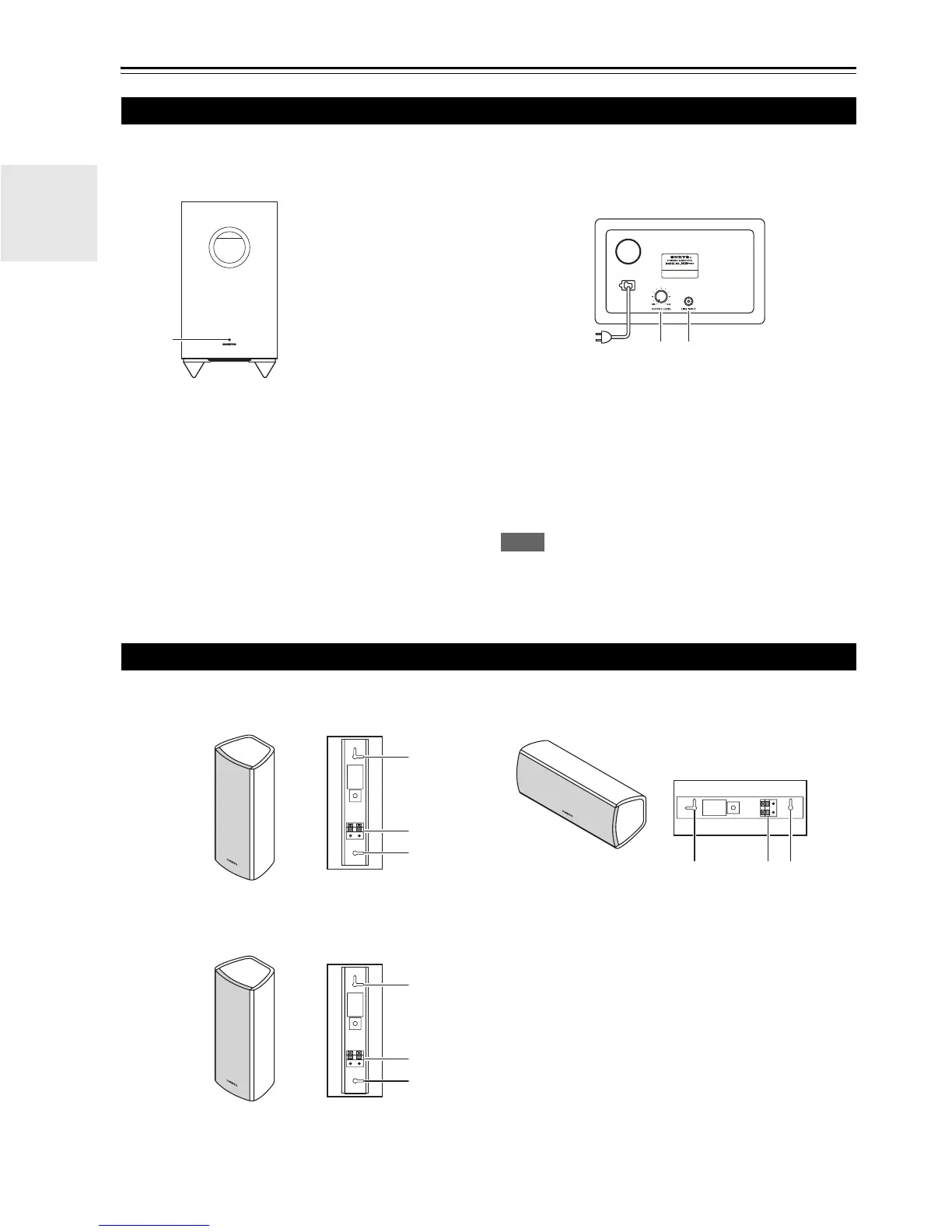

■ HTP-680 (SKF-680, SKC-680, SKR-680, SKB-680)
Subwoofer (SKW-770/780)
a
bc
To AC outlet
■ Front ■ Rear
Red: Subwoofer in standby mode
Blue: Subwoofer on
Front, Center, Surround and Surround Back Speakers
SKF-680
SKR-680/SKB-680
SKC-680
a
a
b
a
a
b
aa
b
Front
Rear
Rear
Front
Front
Rear
To Next Page
