■ SKC-780
Caution
• A mounting screw’s ability to support a speaker depends
on how well it’s anchored to the wall. If you have hollow
walls, screw each mounting screw into a stud. If there are
no studs, or the walls are solid, use suitable wall anchors.
• Use screws with a head diameter of 5/16" (8 mm) or less
and a shank diameter of 1/8" (4 mm) or less. With hol-
low walls, use a cable/pipe detector to check for any
power cables or water pipes before making any holes.
• (HTP-680) Leave a gap of between 5/32" (4 mm) and
5/16" (8 mm) between the wall and the base of the screw
head, as shown.
(HTP-780) Leave a gap of between 3/16" (5 mm) and
7/16" (10 mm) between the wall and the base of the
screw head, as shown.
(We recommend that you consult a home installation
professional.)
We recommend using the provided stoppers to achieve the
best possible sound from your speakers. The stoppers pre-
vent the speakers from moving, providing a more stable
platform.
■ SKF-680, SKR-680, SKB-680, SKC-680
Use rubber stoppers for the speakers.
■ SKC-780
Use cork stoppers for the center speaker.
If the subwoofer is placed on a hard floor (wood, vinyl,
tile, etc.) and playback is very loud, the subwoofer’s feet
may damage the flooring. To prevent this, place the sup-
plied pads underneath the subwoofer’s feet. The pads also
provide a stable base for the subwoofer.

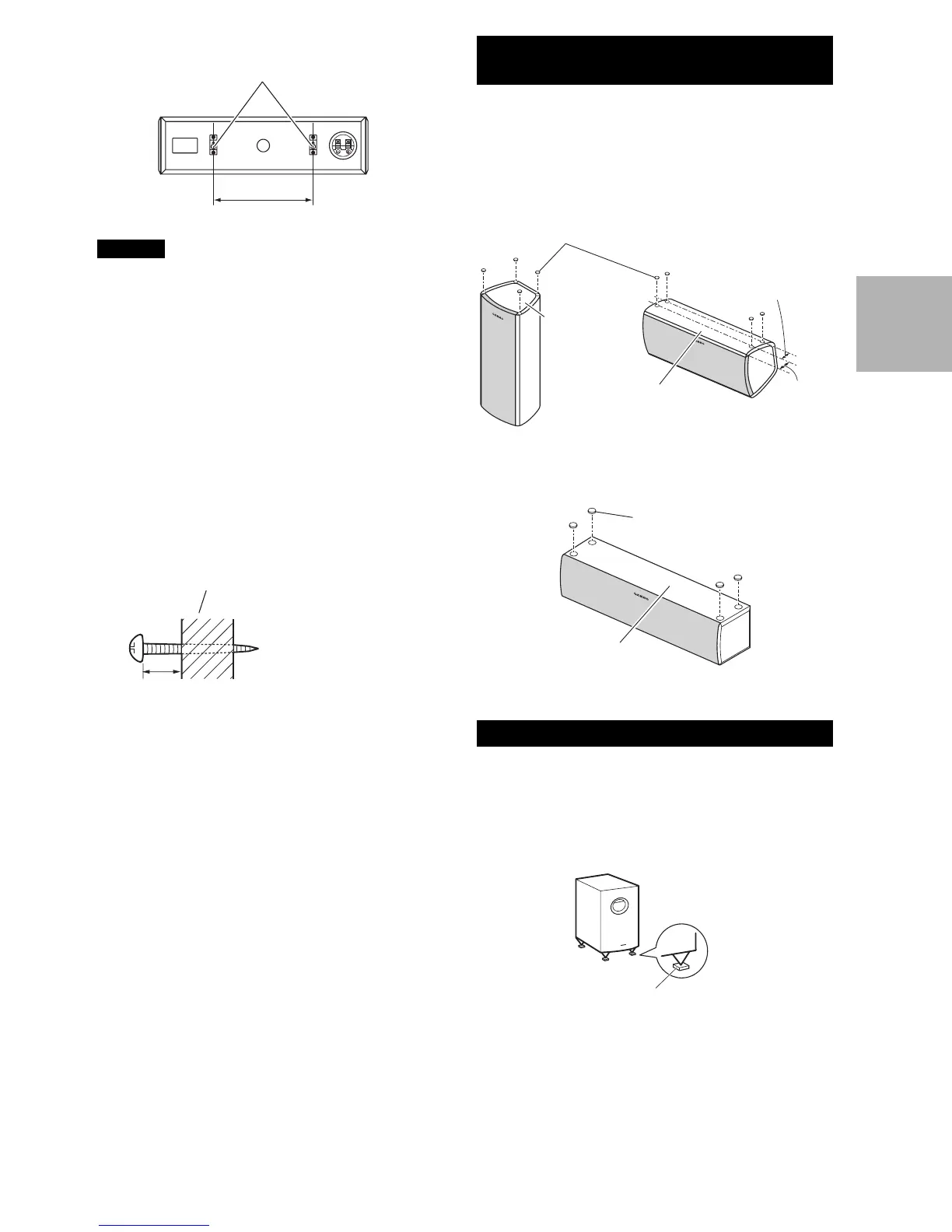

7-7/8" (200 mm)
Keyhole slot for wall mounting
Wall
(HTP-680) 5/32
" to 5/16"(4 mm to 8 mm)
(HTP-780) 3/16
" to 7/16"(5 mm to 10 mm)
Using the Stoppers for a More Stable
Platform
Using the Floor Pads for Subwoofer
Bottom of the
SKC-680
Rubber stoppers
Bottom of the
SKF-680/
SKR-680/
SKB-680
1-9/16
"
(40 mm)
1-3/16
" (30 mm)
Cork stoppers
Bottom of the
SKC-780
Pad
