Onkyo HT-R500 Instruction Manual

15
FM
75
AM
ANTENNA
FM
75
AM

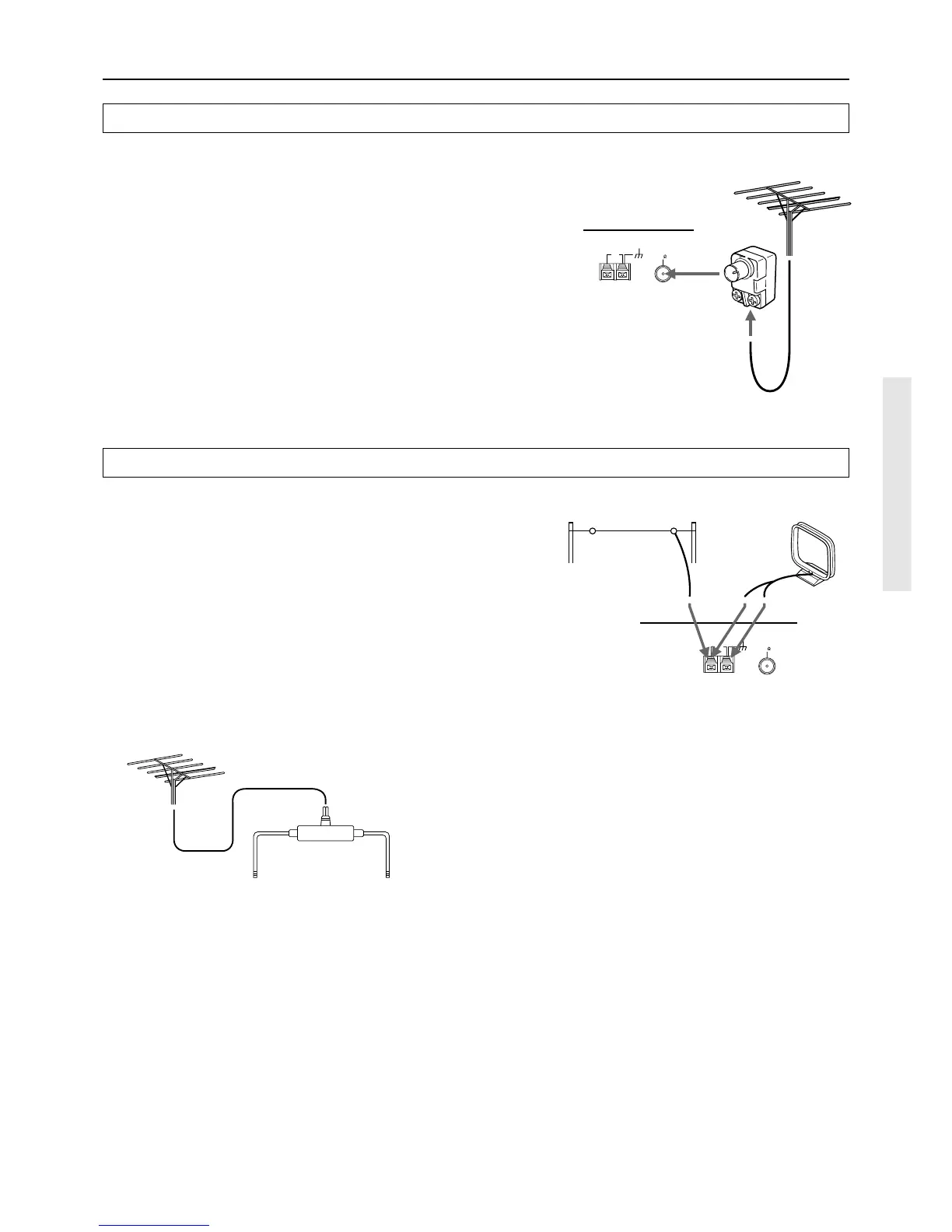

Connecting an FM outdoor antenna
If the FM reception is not very clear with the supplied antenna,
connect an FM outdoor antenna instead of the indoor FM antenna.
Notes
• Install the antenna well away from tall buildings and in an area
where FM stations can directly be received.
• Keep the antenna away from noise sources (neon signs, busy
roads, etc.).
• It is dangerous to put the antenna close to power lines. Keep it
well away from power lines, transformers, etc.
• To avoid the risk of lightning and electrical shock, grounding is
necessary. Follow item 14 of the “Important Safeguards” on
page 2 when you install the outdoor antenna.
Connecting an AM outdoor antenna
An outdoor antenna will be more effective if it is stretched
horizontally above a window or outside.
Leave the supplied AM indoor antenna connected.
Note
To avoid the risk of lightning and electrical shock, grounding is
necessary. Follow item 14 of the “Important Safeguards” on page 2
when you install an outdoor antenna.
Directional linkage
type splitter
To AV Receiver To TV (or VCR)
FM outdoor antenna
Directional Iinkage
Do not use the same antenna for both FM and TV (or VCR) reception since the FM and TV (or VCR) signals can interfere with each other.
If you must use a common FM/TV (or VCR) antenna, use a directional linkage type splitter.
AM indoor
antenna
Outdoor antenna
Connecting antennas

Onkyo HT-R500 Specifications

Amplifier Section

continuous average power output (FTC)	100 watts per channel at 8 ohms
dynamic power output at 3 ohms	230 watts × 2
dynamic power output at 4 ohms	170 watts × 2
dynamic power output at 8 ohms	115 watts × 2
total harmonic distortion	0.08% at rated power
damping factor	60 at 8 ohms

Input and Output Impedance

digital input (optical 1, 2)	0.5 Vp-p, 75 ohms
digital input (coaxial)	0.5 Vp-p, 75 ohms
line (CD, VIDEO 1, 2, 3, TAPE)	200 mV, 50 kohms
multichannel input (DVD FRONT L/C/R, SURR L/R)	200 mV, 50 kohms
subwoofer input	36 mV, 50 kohms
rec out (TAPE, VIDEO 1)	200 mV, 470 ohms
pre out (subwoofer)	1 V, 470 ohms

Tuner Section

FM tuning range	87.5-108.0 MHz
FM usable sensitivity (mono)	11.2 dBf, 1.0 µV (75 ohms, IHF)
FM usable sensitivity (stereo)	17.2 dBf, 2.0 µV (75 ohms, IHF)
FM signal-to-noise ratio (mono)	76 dB, IHF
FM signal-to-noise ratio (stereo)	70 dB, IHF
AM tuning range	530-1, 710 kHz
AM usable sensitivity	30 µV
AM signal-to-noise ratio	40 dB

General

power supply	AC 120 V, 60 Hz
power consumption	5.5 A
dimensions (W × H × D)	17-1/8” × 5-7/8” × 14-13/16”
dimensions in mm (W × H × D)	435 × 150 × 376 mm
weight	21.4 lbs.
weight in kg	9.7 kg
