16
Speaker Package
For detailed information, see the pages in parentheses.
A
STANDBY/ON indicator
Red: Subwoofer in standby mode
Blue: Subwoofer on
With the Auto Standby function, the SKW-750X
automatically turns on when an input signal is
detected in Standby mode. When there’s no input
signal for a while, the SKW-750X automatically
enters Standby mode.
B
OUTPUT LEVEL control (50)
This control is used to adjust the volume of the sub-
woofer.
C
LINE INPUT (22)
This RCA input should be connected to the sub-
woofer pre out on your AV receiver, amp, or other
receiver with supplied RCA cable.
Note:
The Auto Standby function turns the subwoofer on when
the input signal exceeds a certain level. If the Auto
Standby function does not work reliably, try slightly
increasing or decreasing the subwoofer output level on
the AV receiver (page 81).
1
Keyhole slots
These keyhole slots can be used to wall-mount the
speaker. See page 23 for mounting instructions.
2
Speaker terminals
These push terminals are for connecting the speaker
to your AV Receiver, amp, or other receiver with the
supplied speaker cables. The supplied speaker
cables are color-coded for easy identification. Sim-
ply connect each cable to the same-colored positive
speaker terminal.
3
Speaker mount/bracket inserts
These threaded inserts can be used to attach the
speaker either horizontally or vertically to a speaker
mount or bracket.
Note:
Use commercially available 1/4" screws to attach
the speaker to a speaker mount or bracket.

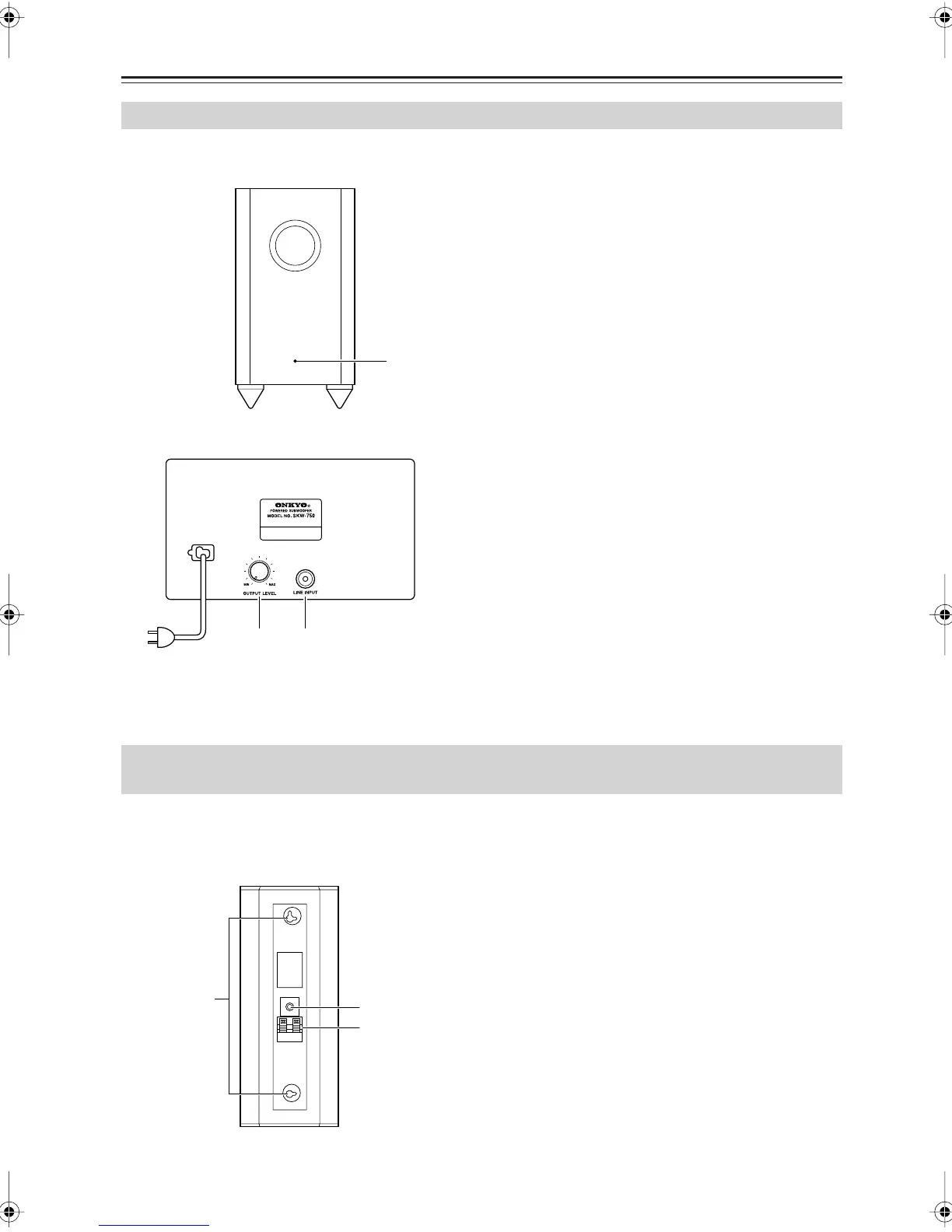

Subwoofer (SKW-750X)
1
23
X
■ Rear
To AC outlet
■ Front
Front, Center, Surround, and Surround back speakers (SKF-750XF, SKC-750XC,
SKM-750XS, SKB-750X)
3
2
1
■ Rear
SKF-750XF/SKM-750XS/SKC-750XC/SKB-750X
HT-S6100En.book Page 16 Tuesday, July 1, 2008 4:58 PM
