Getting to Know the AV Receiver —Continued
T
TUNING MODE button (54)
Selects the Auto or Manual tuning mode for AM
and FM radio.
U
SETUP MIC (42)
The automatic speaker setup microphone connects
here.
V
AUX INPUT (37, 68)
Used to connect a camcorder, game console, and so
on. There are input jacks for composite video and
analog audio.
For detailed information, see the pages in parentheses.
1
A and B speaker indicators (7, 50)
Indicator A lights up when speaker set A is on. Indi-
cator B lights up when speaker set B is on.
2
MUTING indicator (51)
Flashes while the AV receiver is muted.
3
Listening mode and format indicators (59)
Show the selected listening mode and audio input
signal format.
4
Tuning indicators (54)
FM STEREO (54): Lights up when tuned to a ste-
reo FM station.
AUTO (54): Lights up when Auto Tuning mode is
selected for AM or FM radio. Goes off when Man-
ual Tuning mode is selected.
TUNED (54): Lights up when tuned to a radio sta-
tion.
5
SLEEP indicator (51)
Lights up when the Sleep function has been set.
6
Message area
Displays various information.
7
Audio input indicators
Indicate the type of audio input that’s selected as the
audio source: MULTI CH, or HDMI.
8
Audyssey indicator
Lights up during automatic speaker setup.

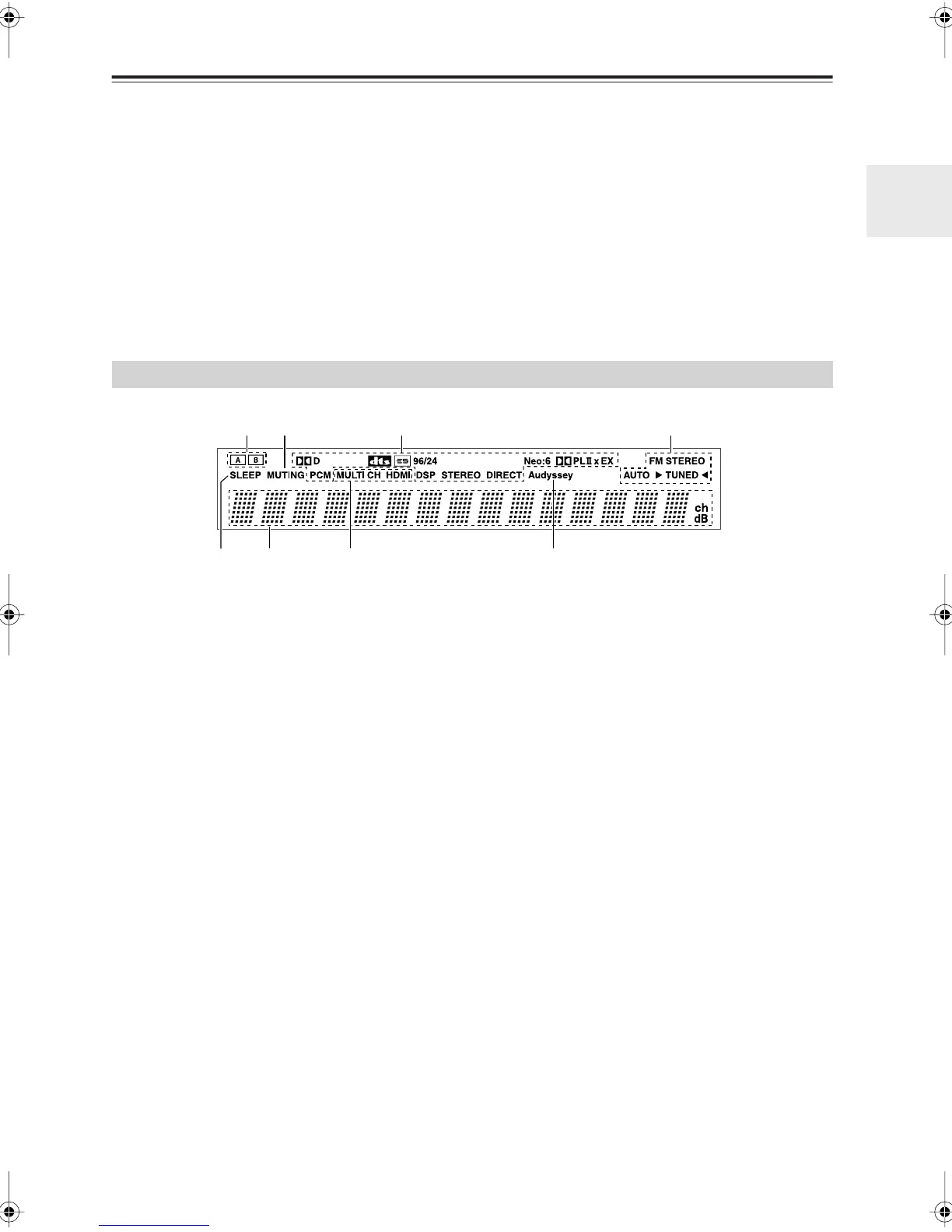

Display
