Surround back Speakers Connection
Install the Front speakers on the front and
Surround back speakers on the back as shown in the
figure.

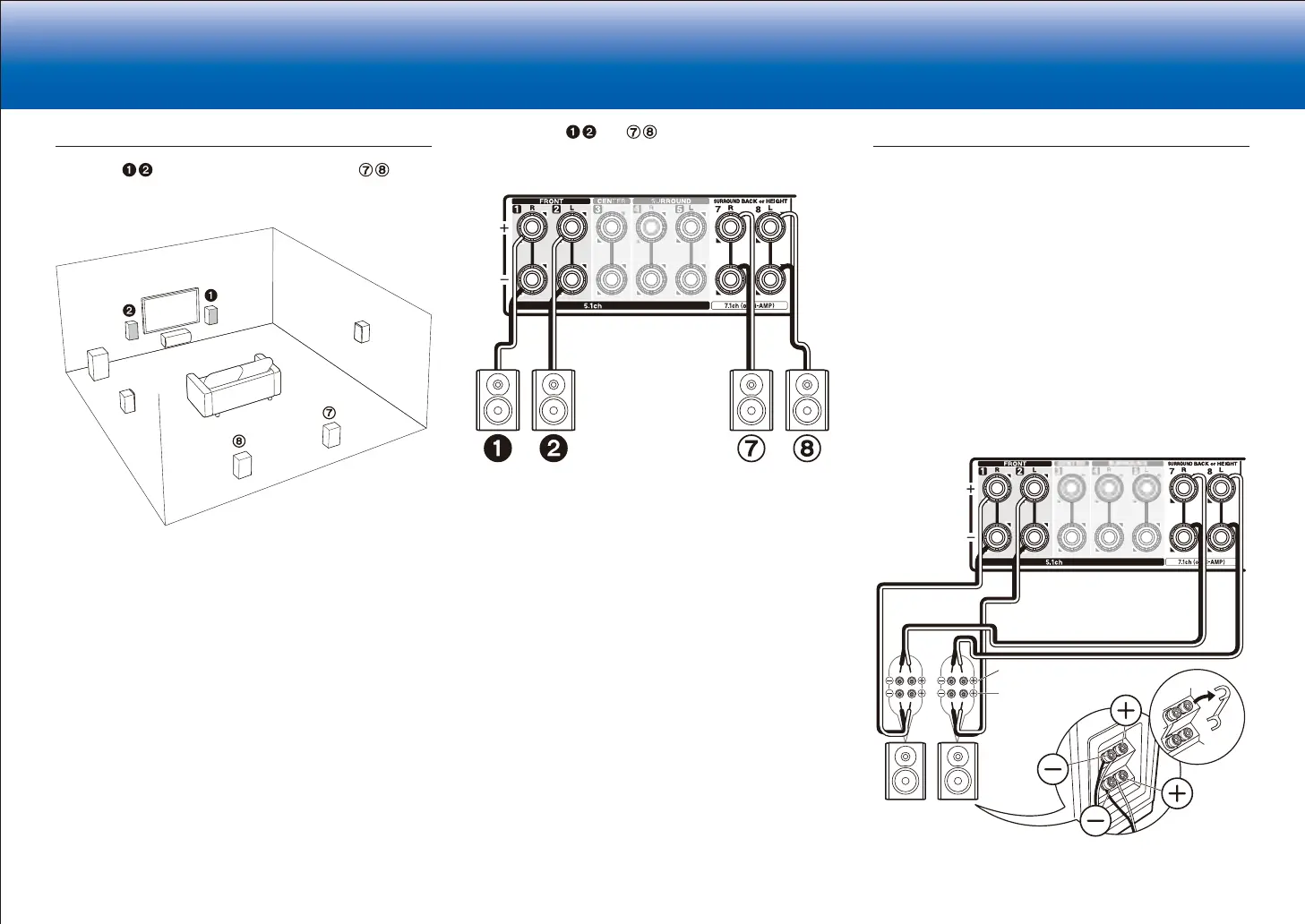

1. Connect the and speakers as shown below
using the FRONT terminals and SURROUND BACK or
HEIGHT terminals.
2. In the Setup menu, set "2. Speaker" - "Configuration" -
"Speaker Channels" to "6.1 ch" or "7.1 ch".
Front Speakers Bi-amp Connection
It is possible to connect front speakers supporting biamping
to improve quality of the bass and treble. The maximum
number of channels available with this connection is 5.1
because Bi-Amping speakers require one amplifier for the
tweeter jacks and one amplifier for the woofer jacks. The
effects and placements for speakers are the same as the
5.1-channel plan that doesn't use Bi-Amping speakers.
•
If you connect to speakers supporting Bi-Amping,
speaker output in ZONE is not possible.
1. Connect front speakers compatible with Bi-Amping connection to
the FRONT jacks and the SURROUND BACK or HEIGHT jacks.
Make sure you remove the jumper bar fitted between the woofer
jacks and tweeter jacks of the front speakers. In case of Bi-Amping
connection, refer to the instruction manual of your speakers.
For high-frequency
For low-frequency
2. Change the setting on the screen of "2. Speaker" -
"Configuration" in the Setup menu.
