a DIGITAL IN COAXIAL and OPTICAL jacks
b COMPONENT VIDEO IN and OUT jacks
c ETHERNET port
d FM ANTENNA jack and AM ANTENNA terminal
e HDMI IN and OUT jacks
f Power cord
g u REMOTE CONTROL jack
h Composite video and analog audio jacks
(BD/DVD IN, VCR/DVR IN and OUT, CBL/SAT
IN, GAME IN, TV/CD IN)
i MONITOR OUT V jack
j ZONE 2 LINE OUT jacks
k SUBWOOFER PRE OUT jacks
l UNIVERSAL PORT jack
m SPEAKERS terminals
(CENTER, FRONT, SURROUND, SURROUND
BACK or FRONT HIGH, ZONE 2)

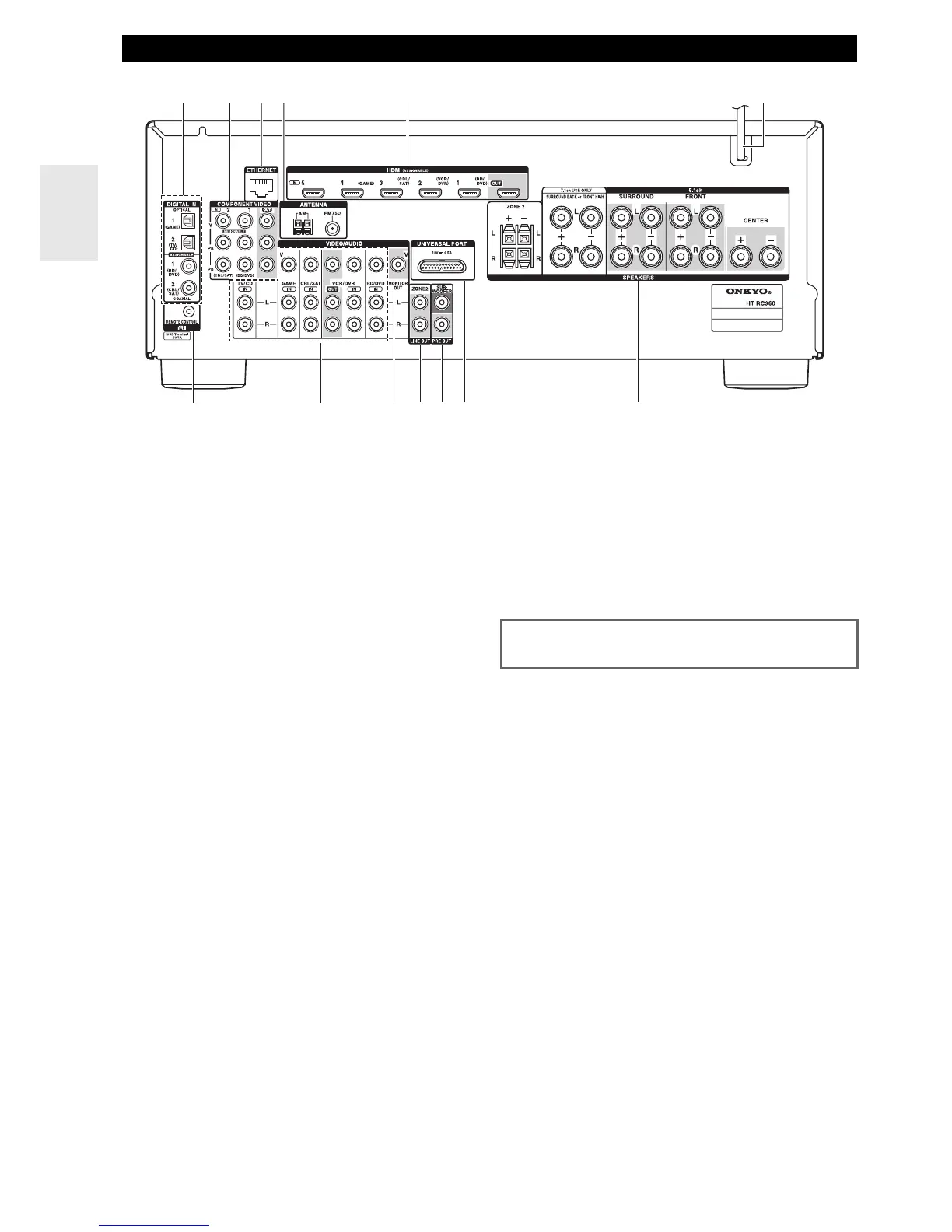

Rear Panel
ab
e
f
g
h
ijkl
m
cd
See “Connecting the AV Receiver” for connection
(➔ pages 12 to 19).
