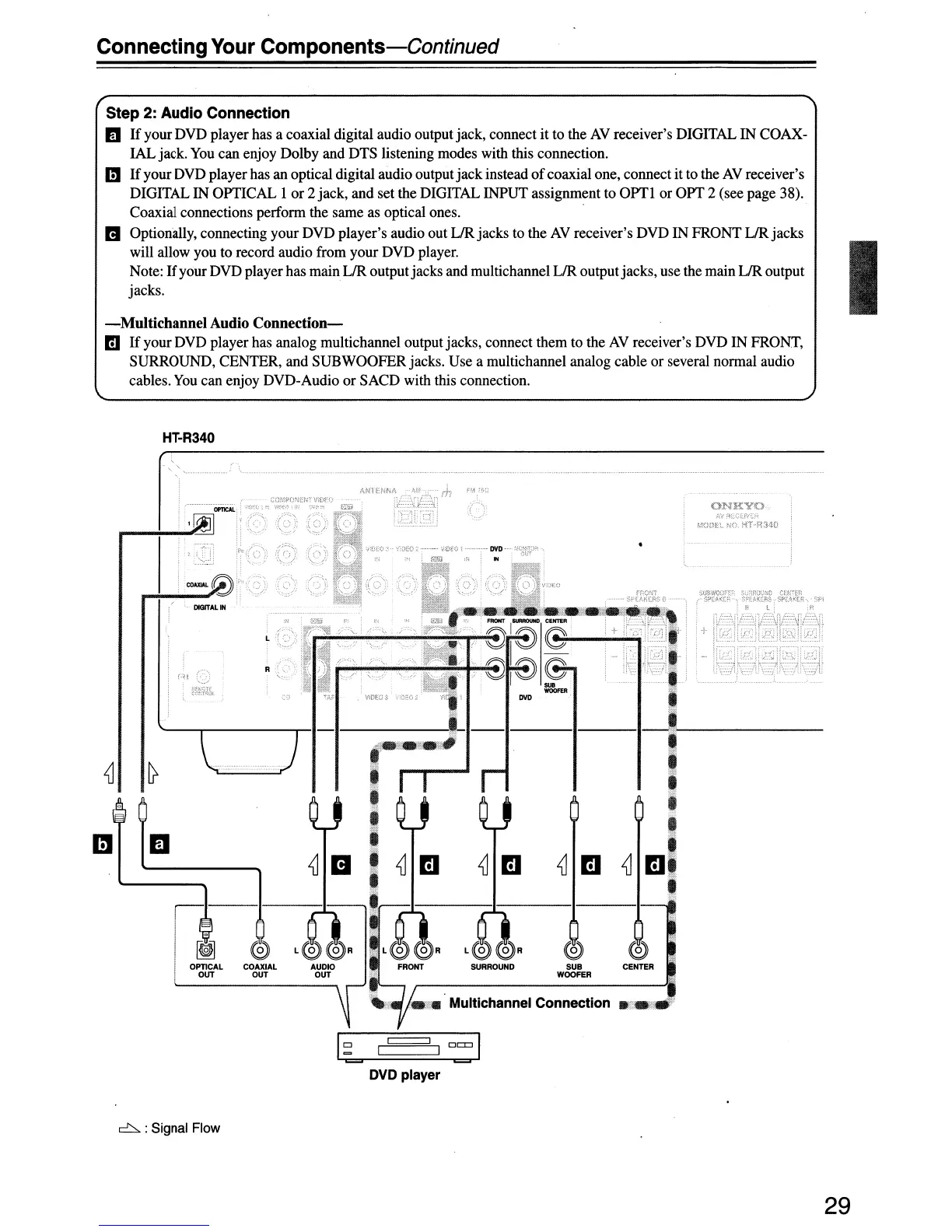

Connecting Your Components-Continued
Step 2: Audio Connection
II If your DVD player has a coaxial digital audio outputjack, connect it to the AV receiver's DIGITAL IN COAX-
IAL jack. You can enjoy Dolby and DTS listening modes with this connection.
II If yourDVD playerhas an optical digital audio output jack instead of coaxial one, connect it to the AV receiver's
DIGITAL IN OPTICAL I
or 2 jack, and set the DIGITAL INPUT assignment to OPTI or OPT 2 (see page 38).
Coaxial connections perfonn the same as optical ones.
II Optionally, connecting your DVD player's audio out LlRjacks to the AV receiver's DVD IN FRONT LlRjacks
will allow you to record audio from your DVD player. I
Note: If your DVD playerhas mainLIR outputjacks and multichannel LIR outputjacks, use the main LIR output
jacks.
-Multichannel Audio Connection-
In If your DVD player has analog multichannel outputjacks, connect them to the AV receiver's DVD IN FRONT,
SURROUND, CENTER, and SUBWOOFERjacks. Use a multichannel analog cable
or several nonnal audio
cables.
You can enjoy DVD-Audio or SACD with this connection.
HT-R340
Multichannel Connection .;.~_4
@
CENTER
@
SUB
WOOFER
SURROUND OPllCAL COAXIAL
OUT OUT
II
c:::::". : Signal Flow
29
