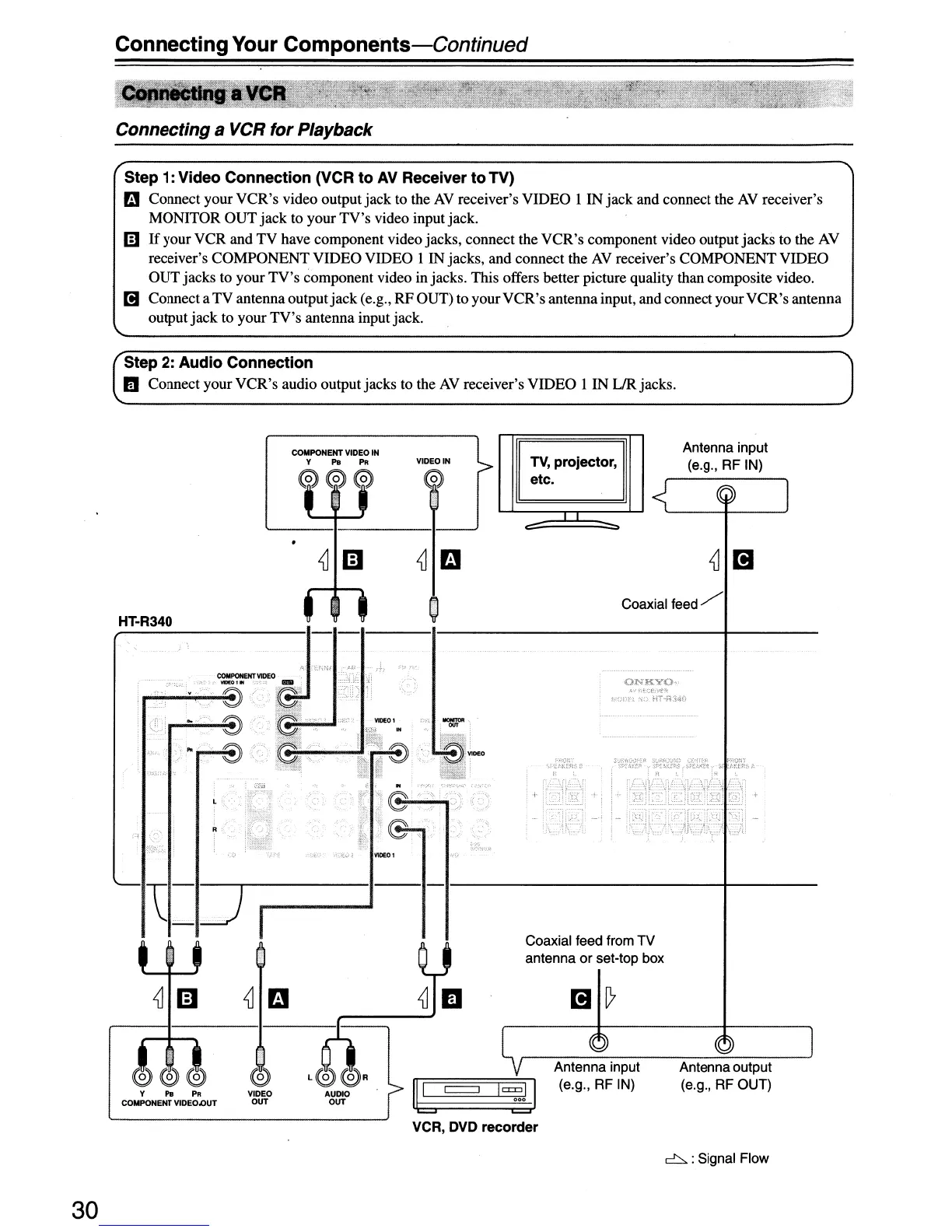

Connecting Your Components-Continued
Connecting a VCR for Playback
Step 1: Video Connection (VCR to AV Receiver to TV)
mConnect your VCR's video outputjack to the AV receiver's VIDEO 1 IN jack and connect the AV receiver's
MONITOR OUT jack to your TV's video input jack.
m If your VCR and TV have component video jacks, connect the VCR's component video output jacks to the AV
receiver's COMPONENT VIDEO VIDEO I IN jacks, and connect the AV receiver's COMPONENT VIDEO
OUT jacks to your TV's component video in jacks. This offers better picture quality than composite video.
S Connecta TV antenna output jack (e.g., RF OUT) to your VCR's antenna input, and connect your VCR's antenna
outputjack to your TV's antenna input jack.
(
Step 2: Audio Connection
II Connect your VCR's audio outputjacks to the AV receiver's VIDEO I IN URjacks.
)
VIDEO IN
TV, projector,
etc.
Antenna input
(e.g., RF IN)
HT-R340
Coaxial feed /
~ :).--------1--
Coaxial feed from TV
antenna
or set-top box
Antenna output
(e.g., RF OUT)
It c::::::J I ~J I
t:=
~
VIDEO
OUT
Y Po PR
COMPONENT VlDEO.o\JT
VCR, DVD recorder
~ : Signal Flow
30
