Connecting Your Components
—Continued
•With the basic connection, you can listen to or record audio from the video source, and listen via speaker
set B.
•To enjoy Dolby and DTS listening modes, use connection or . (Use and or and for recording.)
Connecting a Satellite, Cable, Set-top box, or Other Video Source
Connection HT-R530 Signal flow Video source Picture quality
COMPONENT VIDEO VIDEO 2 IN
⇐
Component video output
Best
VIDEO 2 IN S
⇐
S-Video output Better
VIDEO 2 IN V
⇐
Composite video output
Standard
Y
P
B
PR
Y
P
B
PR
COMPONENT VIDEO
VIDEO 2 IN
COMPONENT VIDEO
OUT
S VIDEO OUT
VIDEO OUT
VIDEO 2
IN
IN
V
S
VIDEO 2

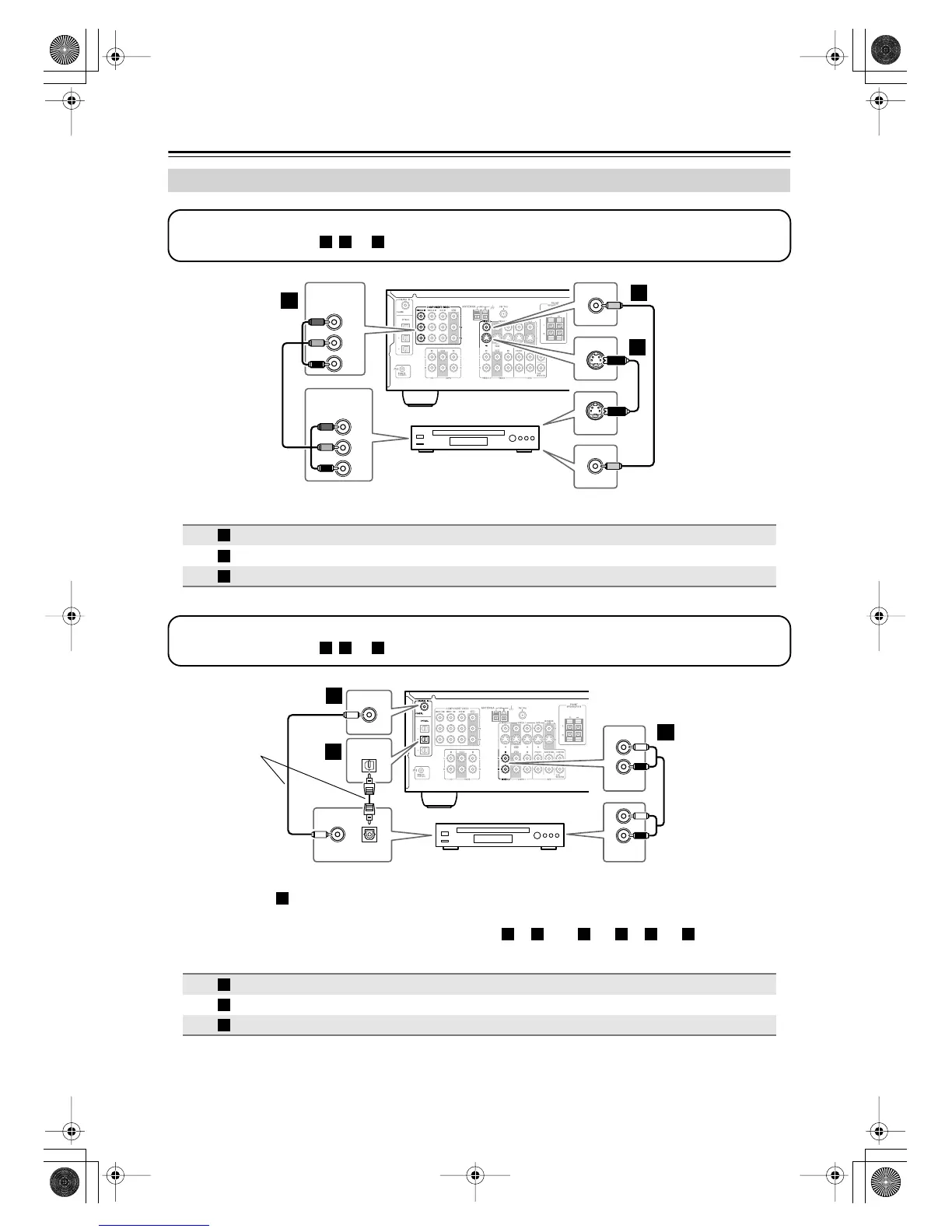

Step 1: Video Connection
Choose a connection type ( , , or
) that matches the video source, and then make the connection.
A B C
A
B
C
Satellite, cable,
set-top box, etc.
The TV must be con-
nected to the AV
receiver with the same
type of connection.
A
B
C
Connection HT-R530 Signal flow Video source
VIDEO 2 IN L/R
⇐
Analog audio L/R output
DIGITAL IN COAXIAL
⇐
Digital coaxial output
DIGITAL IN OPTICAL 2
⇐
Digital optical output
L
R
VIDEO 2
IN
L
R
AUDIO
OUT
OPTICAL
2
OPTICAL
OUT
DIGITAL IN
COAXIAL
COAXIAL
OUT
Step 2: Audio Connection
Choose a connection type ( , , or ) that matches the video source, and then make the connection.
a b c
a
b
c
Satellite, cable,
set-top box, etc.
Connect one
or the other
a
b c a b
To Next Page
