Connecting Your Components
—Continued
•With the basic connection, you can listen to or record audio from the TV, and listen via speaker set B.
•To enjoy Dolby and DTS listening modes, use connection or . (Use and or and for recording.)
Hint!
If your TV has no audio outputs, connect your VCR to the AV receiver and use its tuner.
Connecting a TV or Projector
Connection HT-R530 Signal flow TV Picture quality
COMPONENT VIDEO OUT
⇒
Component video input Best
MONITOR OUT S
⇒
S-Video input Better
MONITOR OUT V
⇒
Composite video input Standard
Connection HT-R530 Signal flow TV
VIDEO 2 IN L/R
⇐
Analog audio L/R output
DIGITAL IN COAXIAL
⇐
Digital coaxial output
DIGITAL IN OPTICAL 2
⇐
Digital optical output
Y
P
B
PR
Y
P
B
PR
COMPONENT VIDEO
COMPONENT VIDEO
S VIDEO IN
IN
VIDEO IN
MONITOR
OUT
V
S
MONITOR
OUT

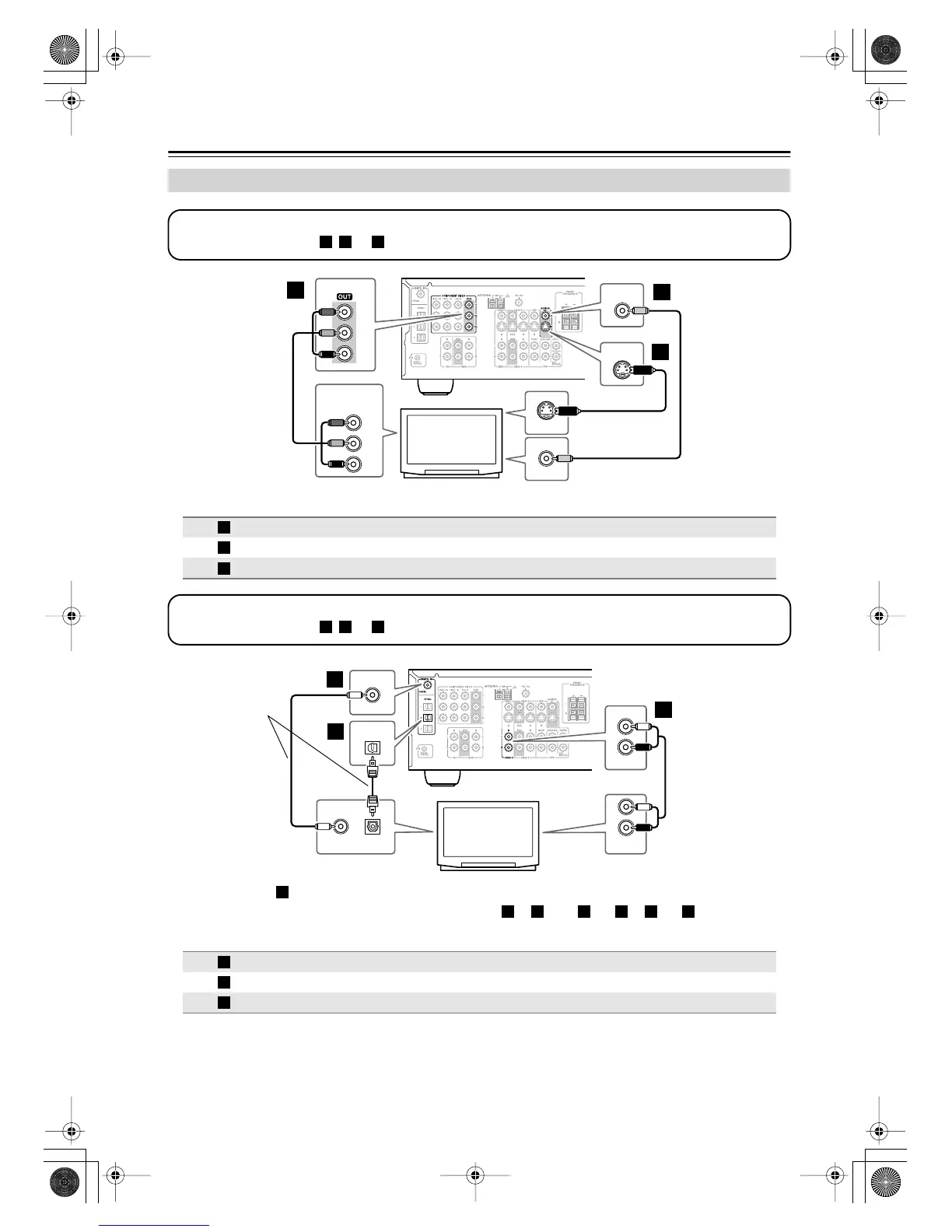

Step 1: Video Connection
Choose a connection type ( , , or ) that matches the TV, and then make the connection.
A B C
TV, projector,
etc.
A
B
C
A
B
C
OPTICAL
2
OPTICAL
OUT
L
R
L
R
IN
VIDEO 2
AUDIO
OUT
DIGITAL IN
COAXIAL
COAXIAL
OUT
Step 2: Audio Connection
Choose a connection type ( , , or ) that matches the TV, and then make the connection.
a b c
TV, projector,
etc.
a
b
c
Connect one or
the other
a
b c a b
To Next Page
