Connecting Your Components
—Continued
In addition to video playback, with this hookup example, you can use the VCR’s tuner to listen to the sound of your
favorite TV programs via the AV receiver. This is useful if the TV has no audio outputs.
•With the basic connection, you can listen to the VCR/DVD recorder, and listen via speaker set B.
•To enjoy Dolby and DTS listening modes, use connection or . (Use and or and to listen via
speaker set B.)

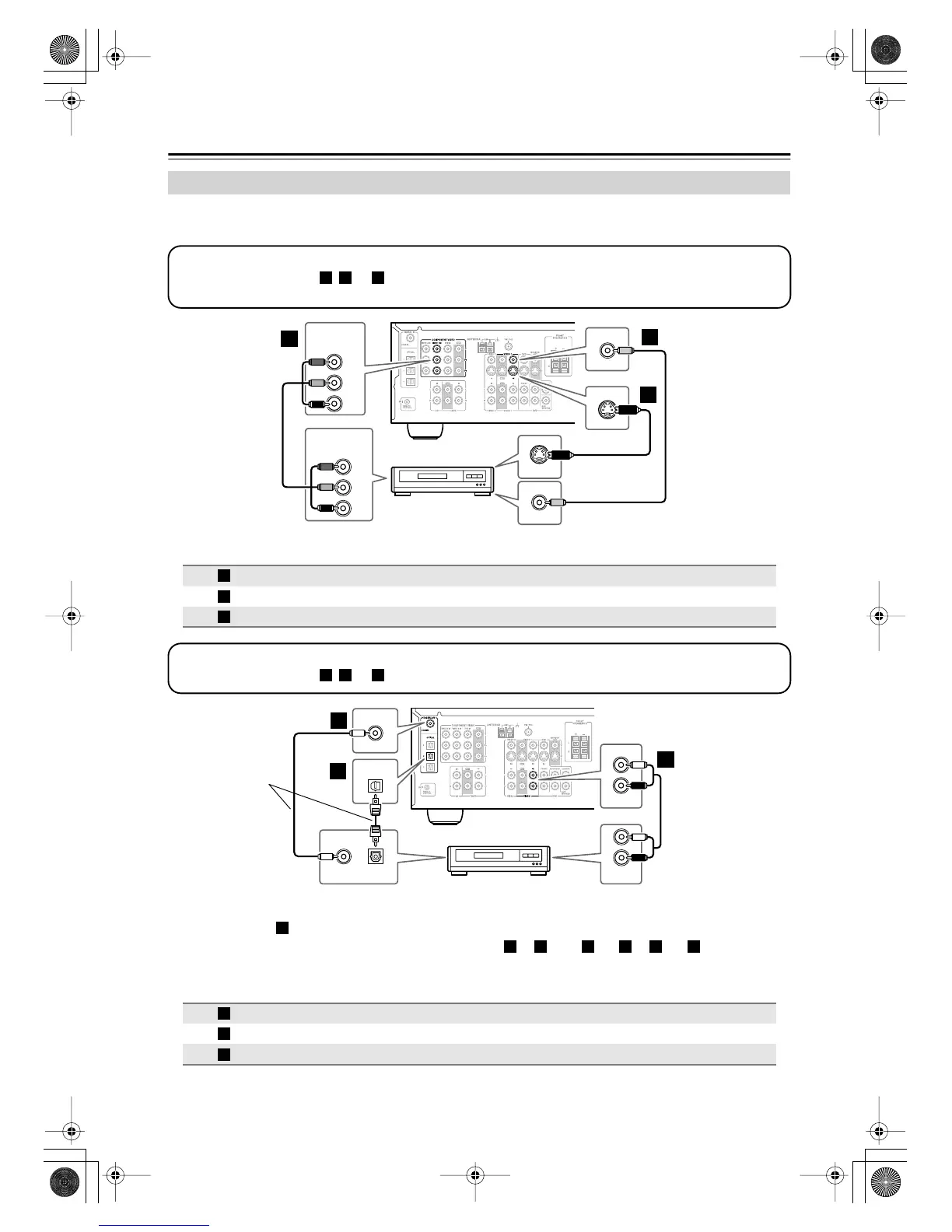

Connecting a VCR or DVD Recorder for Playback
Connection HT-R530 Signal flow VCR/DVD recorder Picture quality
COMPONENT VIDEO VIDEO 1 IN
⇐
Component video output
Best
VIDEO 1 IN S
⇐
S-Video output Better
VIDEO 1 IN V
⇐
Composite video output
Standard
Connection HT-R530 Signal flow VCR/DVD recorder
VIDEO 1 IN L/R
⇐
Analog audio L/R output
DIGITAL IN COAXIAL
⇐
Digital coaxial output
DIGITAL IN OPTICAL 2
⇐
Digital optical output
Y
P
B
PR
Y
P
B
PR
COMPONENT VIDEO
VIDEO 1 IN
COMPONENT VIDEO
OUT
S VIDEO OUT
VIDEO OUT
VIDEO 1
IN
IN
V
S
VIDEO 1
Step 1: Video Connection
Choose a connection type ( , , or
) that matches the VCR/DVD recorder, and then make the connection. The
TV must be connected to the AV receiver with the same type of connection.
A B C
A
B
C
VCR,
DVD recorder
A
B
C
OPTICAL
2
OPTICAL
OUT
L
R
L
R
IN
VIDEO 1
AUDIO
OUT
DIGITAL IN
COAXIAL
COAXIAL
OUT
Step 2: Audio Connection
Choose a connection type ( , , or ), and then make the connection.
a b c
VCR,
DVD recorder
a
b
c
Connect one
or the other
a
b c a b
To Next Page
