Connections
Connections
Connect the supplied front speaker. Connect
positive (+) terminal of the front speaker to
positive (+) terminal of the controller
(LAP-302) and negative (-) terminal of the
front speaker to negative (-) terminal of the
controller.
Tip
The two speakers are identical, so it doesn’t matter
which one you use on the left or right.
Speaker Connection Precautions
Read the following before connecting your
speakers:
You can connect speakers with an impedance
of between 4 and 8 ohms.
Disconnect the power cord from the wall
outlet before making any connections.
Pay close attention to speaker wiring polarity.
In other words, connect positive (+) terminals
only to positive (+) terminals, and negative
(-) terminals only to negative (-) terminals.
Incorrect connection may lead to unnatural
sound being output due to issues such as
reduced bass output due to phase reversal.
Be careful not to short the positive and
negative wires. Doing so may damage the
controller.
Make sure the metal core of the wire does not
have contact with the controller’s rear panel.
Doing so may damage the controller.
Don’t connect more than one cable to each
speaker terminal. Doing so may damage the
controller.
Don’t connect one speaker to several
terminals.

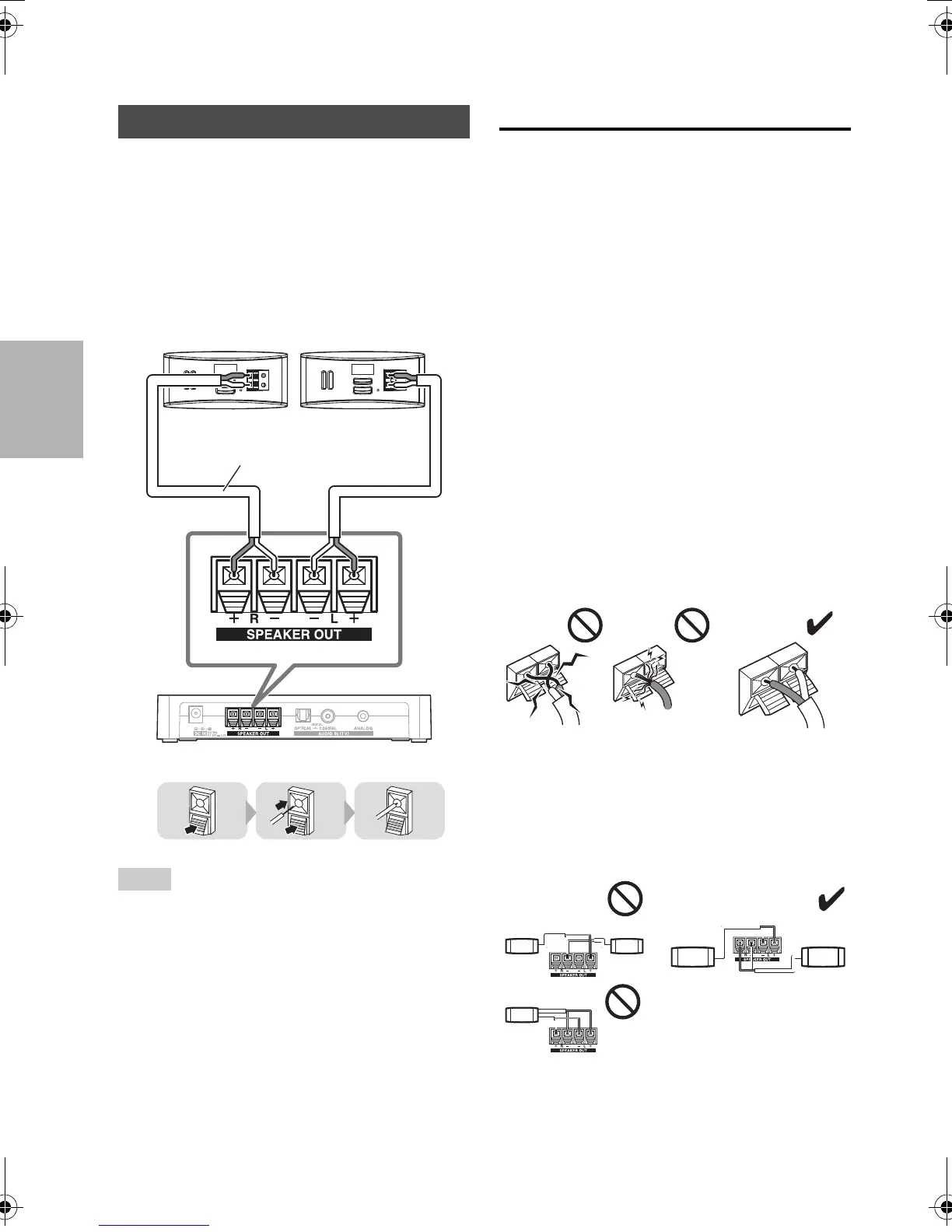

Connecting the Front Speakers
Front right
speaker
Supplied speaker cable
Front left
speaker
