12
> Before Start > Part Names >Install > Initial Setup > Playback
Supplementary information | Advanced Setup | Others
E
N
a Sound bar connection cable
a

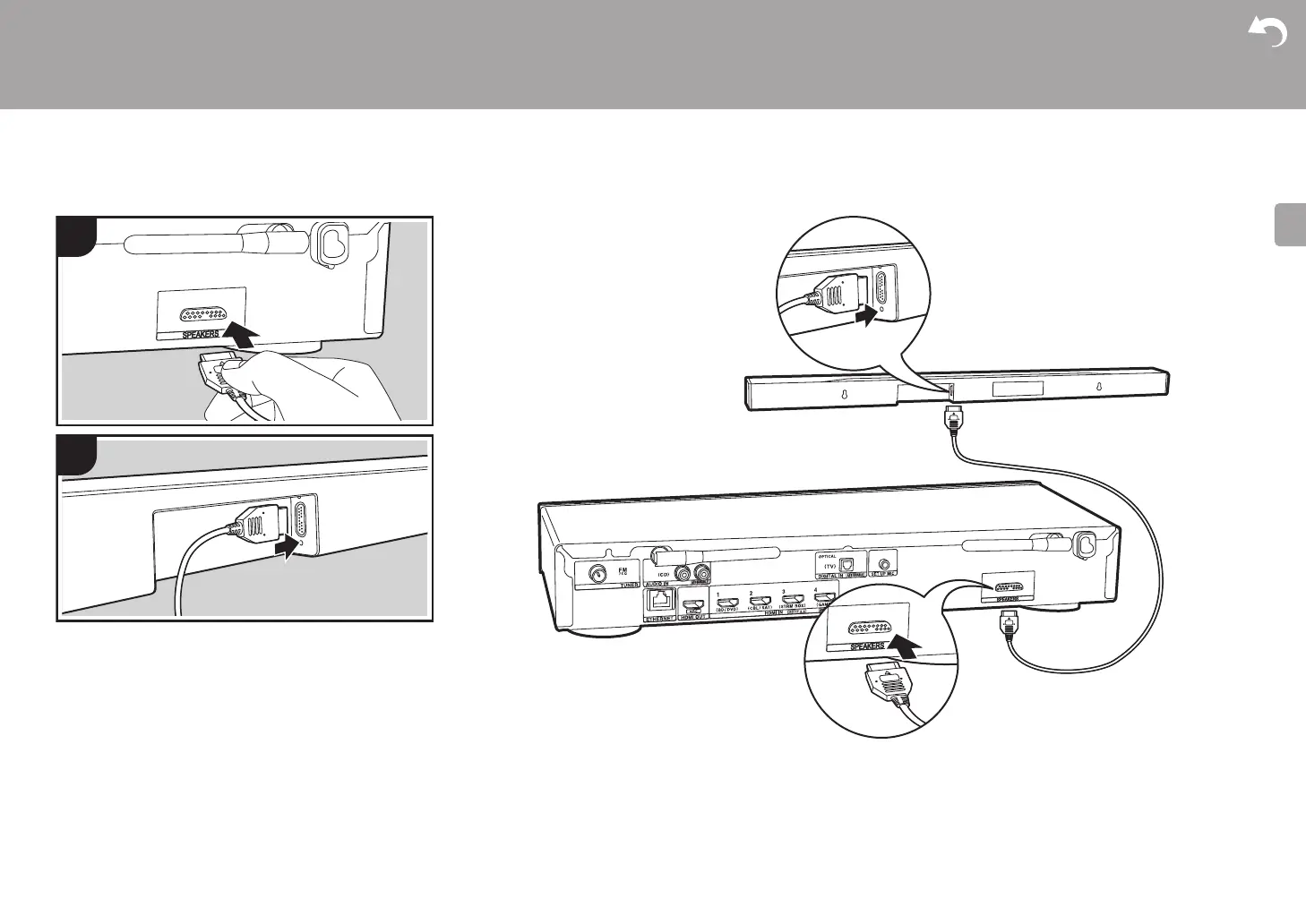

Connecting the sound bar
Refer to the illustration to connect the sound bar. Match the
facing of the cable connector to the port, and make sure
that it is pushed in all the way.

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Onkyo LS7200 and is the answer not in the manual?

Onkyo LS7200 Specifications

General IconGeneral
Disc types supportedNo
Optical disc player typeNot included
Audio decodersDSD, DTS:X, Dolby Atmos
Audio output channels5.0 channels
Audio Return Channel (ARC)Yes
Signal-to-Noise Ratio (SNR)80 dB
FM band range87.5 - 108 MHz
Supported radio bandsFM
Preset stations quantity40
Bluetooth version4.1
AC input voltage100-240 V
AC input frequency50 - 60 Hz
Power consumption (standby)0.38 W
Power consumption (typical)60 W
Subwoofer typeActive subwoofer
Subwoofer sensitivity90 dB
Subwoofer frequency range30 - 200 Hz
Subwoofer driver diameter (imperial)6.2 \
Package weight18000 g
Cables includedAC
HDMI in4
USB version2.0
Number of HDMI outputs1
S-Video outputs quantity0
Karaoke-
Product colorBlack
Weight and Dimensions IconWeight and Dimensions
Main unit weight4000 g
Subwoofer weight6200 g
Main unit dimensions (WxDxH)435 x 325.5 x 70 mm
Subwoofer dimensions (WxDxH)261 x 269 x 338 mm
