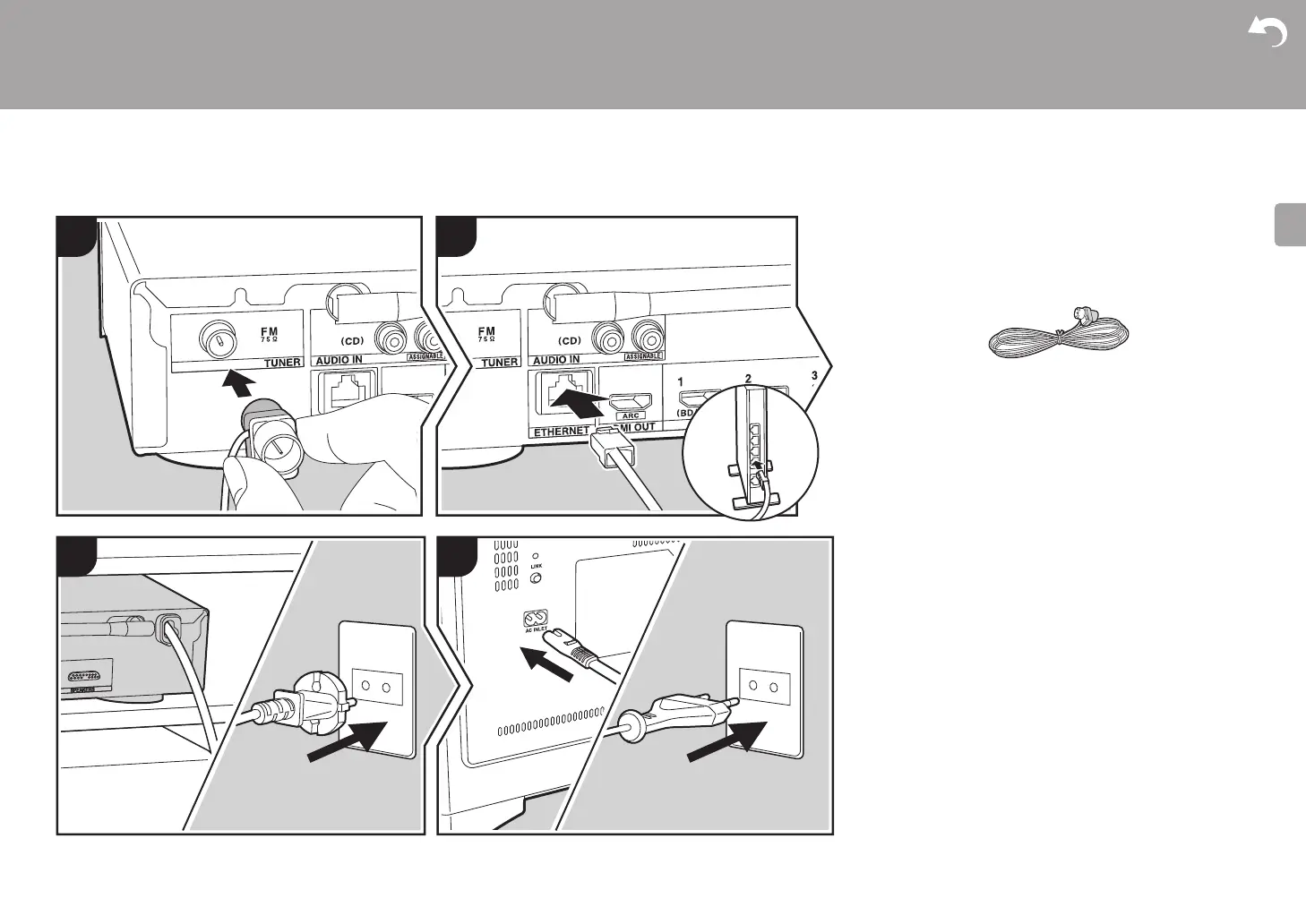

5. Connect Other Cables
a FM indoor antenna, b Ethernet cable, c Power cord (Main unit), d Power cord (for subwoofer)
b
a
c
d
d
c
1 2
3 4
Antenna Hookup
Connect the supplied FM indoor antenna to the TUNER FM
75Ω terminal. Move the FM indoor antenna around while
playing the radio to find the position with the best reception.
Network Hookup
Connect this unit to the network using wired LAN or Wi-Fi
(wireless LAN). You can enjoy network features such as
internet radio by connecting the unit to the network. If you
connect by wired LAN, connect with an Ethernet cable to the
ETHERNET port as shown in the illustration. To connect by
Wi-Fi, then after selecting "Wireless" in "3. Network
Connection" (ÄP18) in Initial Setup, select the desired
setting method and follow the onscreen instructions to
configure the connection.
Power Cord Hookup
Connect the power cords of the main unit and subwoofer
after all other connections are completed.

Onkyo LS7200 Specifications

General

Disc types supported	No
Optical disc player type	Not included
Audio decoders	DSD, DTS:X, Dolby Atmos
Audio output channels	5.0 channels
Audio Return Channel (ARC)	Yes
Signal-to-Noise Ratio (SNR)	80 dB
FM band range	87.5 - 108 MHz
Supported radio bands	FM
Preset stations quantity	40
Bluetooth version	4.1
AC input voltage	100-240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.38 W
Power consumption (typical)	60 W
Subwoofer type	Active subwoofer
Subwoofer sensitivity	90 dB
Subwoofer frequency range	30 - 200 Hz
Subwoofer driver diameter (imperial)	6.2 \
Package weight	18000 g
Cables included	AC
HDMI in	4
USB version	2.0
Number of HDMI outputs	1
S-Video outputs quantity	0
Karaoke	-
Product color	Black

Weight and Dimensions

Main unit weight	4000 g
Subwoofer weight	6200 g
Main unit dimensions (WxDxH)	435 x 325.5 x 70 mm
Subwoofer dimensions (WxDxH)	261 x 269 x 338 mm
