3. Connect the HDMI AV Components
a HDMI cable
e.g. BD
a
HDMI OUT
1
BD/DVD
GAME
a
Cable/Satellite
set-top box
Streaming media
player

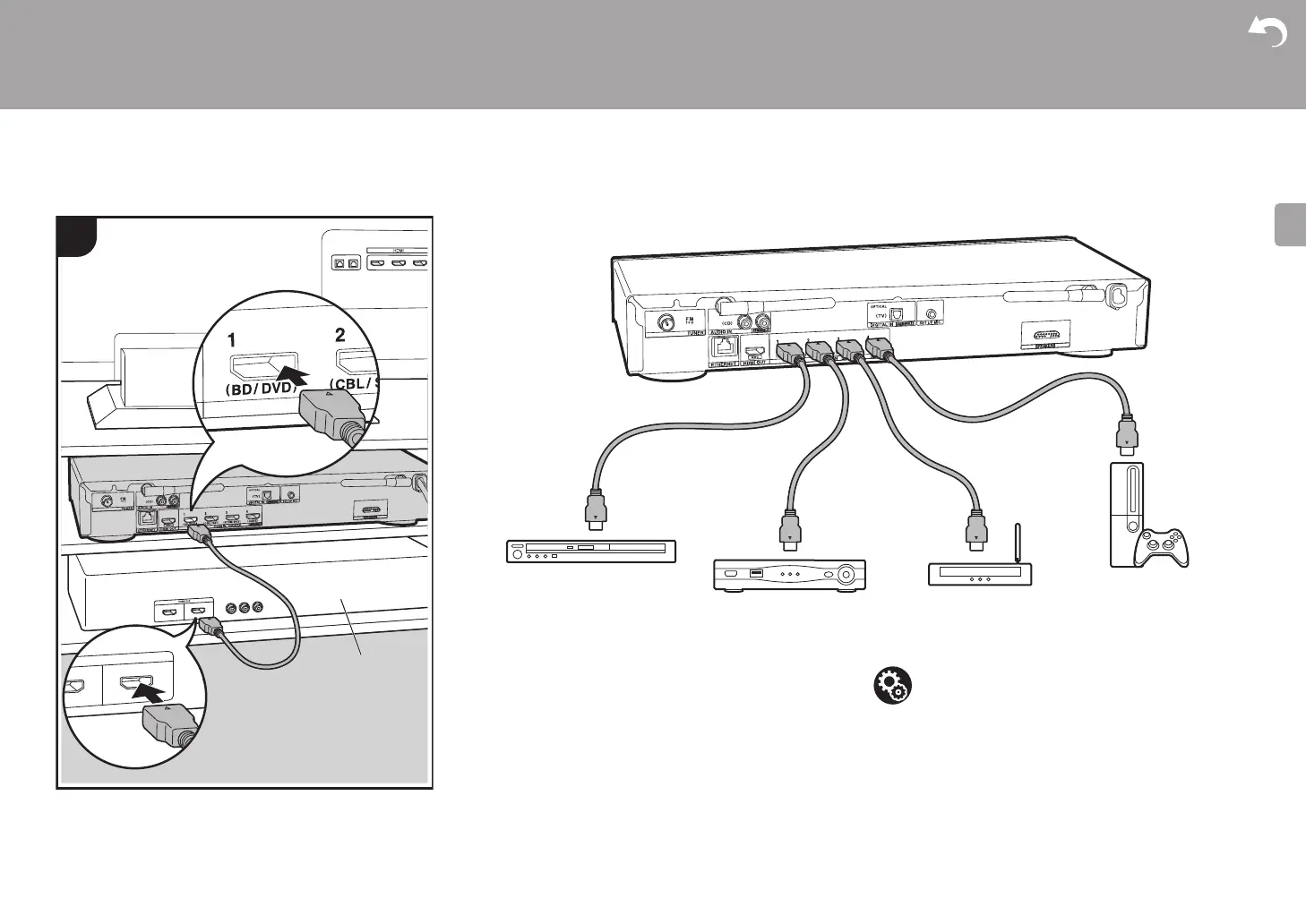

This is an example of connection with an AV component
that has an HDMI jack. With connection to an AV
component that conforms with the CEC (Consumer
Electronics Control) standard, you can use features such as
the HDMI CEC feature that links with the input selector, and
the HDMI Standby Through feature which allows you to
play video and audio from AV components on the TV even
when this unit is in standby mode. (ÄP64)
0 To play 4K or 1080p video, use the high speed HDMI
cable.
Setup
0 Settings are required to use the HDMI CEC and HDMI
Standby Through features. (ÄP48, 49) Make settings after
all connections are complete.
0 To enjoy digital surround sound including Dolby Digital,
audio output should be set to "Bitstream output" on the
connected Blu-ray Disc player or other device.

Onkyo LS7200 Specifications

General

Disc types supported	No
Optical disc player type	Not included
Audio decoders	DSD, DTS:X, Dolby Atmos
Audio output channels	5.0 channels
Audio Return Channel (ARC)	Yes
Signal-to-Noise Ratio (SNR)	80 dB
FM band range	87.5 - 108 MHz
Supported radio bands	FM
Preset stations quantity	40
Bluetooth version	4.1
AC input voltage	100-240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.38 W
Power consumption (typical)	60 W
Subwoofer type	Active subwoofer
Subwoofer sensitivity	90 dB
Subwoofer frequency range	30 - 200 Hz
Subwoofer driver diameter (imperial)	6.2 \
Package weight	18000 g
Cables included	AC
HDMI in	4
USB version	2.0
Number of HDMI outputs	1
S-Video outputs quantity	0
Karaoke	-
Product color	Black

Weight and Dimensions

Main unit weight	4000 g
Subwoofer weight	6200 g
Main unit dimensions (WxDxH)	435 x 325.5 x 70 mm
Subwoofer dimensions (WxDxH)	261 x 269 x 338 mm
