Install
1. Connect the Speakers
a Non-skid pads
a
1
3
2

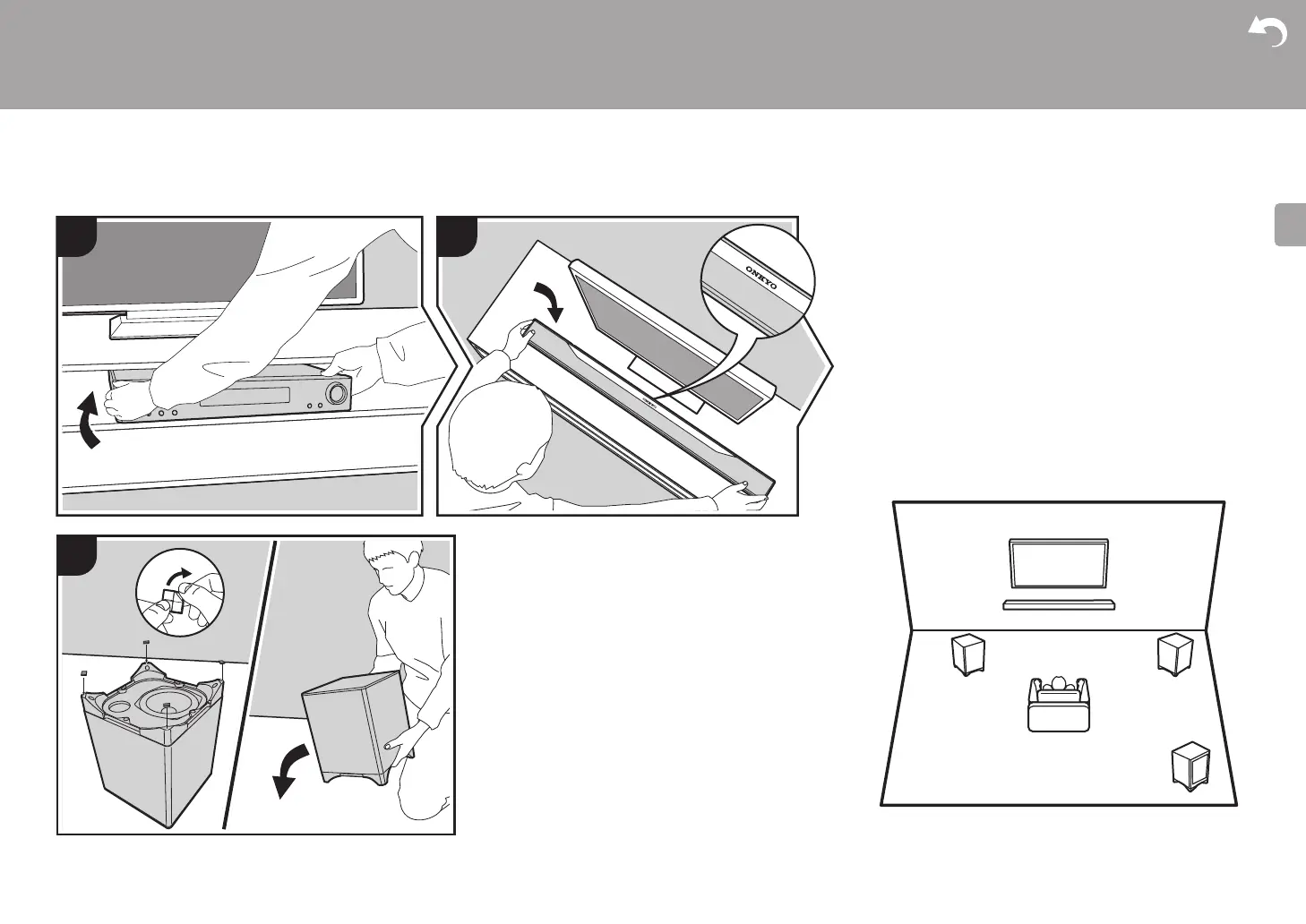

Setting up the sound bar
The sound bar outputs the audio for the front speakers and
center speaker from the front, and the audio for the height
speakers from the top. Set up in front of the TV so the logo
faces up.
Setting up the Subwoofer
Attach the included pads to the four corners of the bases of
the subwoofer. This makes the speakers less likely to slip,
improve the stability of the installation, and enables better
sound. The connection between the main unit and the
subwoofer is wireless. Put the subwoofer within 10 m of the
main unit. Also, place so there are no obstacles such as
walls between the main unit and the subwoofer.
＊ The directionality of subwoofers, where hearing discerns the direction
of sound, is weak, so you will get the same effect from the subwoofer
wherever you decide to put it in the room.
＊
＊
＊

Onkyo LS7200 Specifications

General

Disc types supported	No
Optical disc player type	Not included
Audio decoders	DSD, DTS:X, Dolby Atmos
Audio output channels	5.0 channels
Audio Return Channel (ARC)	Yes
Signal-to-Noise Ratio (SNR)	80 dB
FM band range	87.5 - 108 MHz
Supported radio bands	FM
Preset stations quantity	40
Bluetooth version	4.1
AC input voltage	100-240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.38 W
Power consumption (typical)	60 W
Subwoofer type	Active subwoofer
Subwoofer sensitivity	90 dB
Subwoofer frequency range	30 - 200 Hz
Subwoofer driver diameter (imperial)	6.2 \
Package weight	18000 g
Cables included	AC
HDMI in	4
USB version	2.0
Number of HDMI outputs	1
S-Video outputs quantity	0
Karaoke	-
Product color	Black

Weight and Dimensions

Main unit weight	4000 g
Subwoofer weight	6200 g
Main unit dimensions (WxDxH)	435 x 325.5 x 70 mm
Subwoofer dimensions (WxDxH)	261 x 269 x 338 mm
