Onkyo LS7200 User Manual

6
> Before Start >Part Names > Install > Initial Setup > Playback
Supplementary information | Advanced Setup | Others
E
N

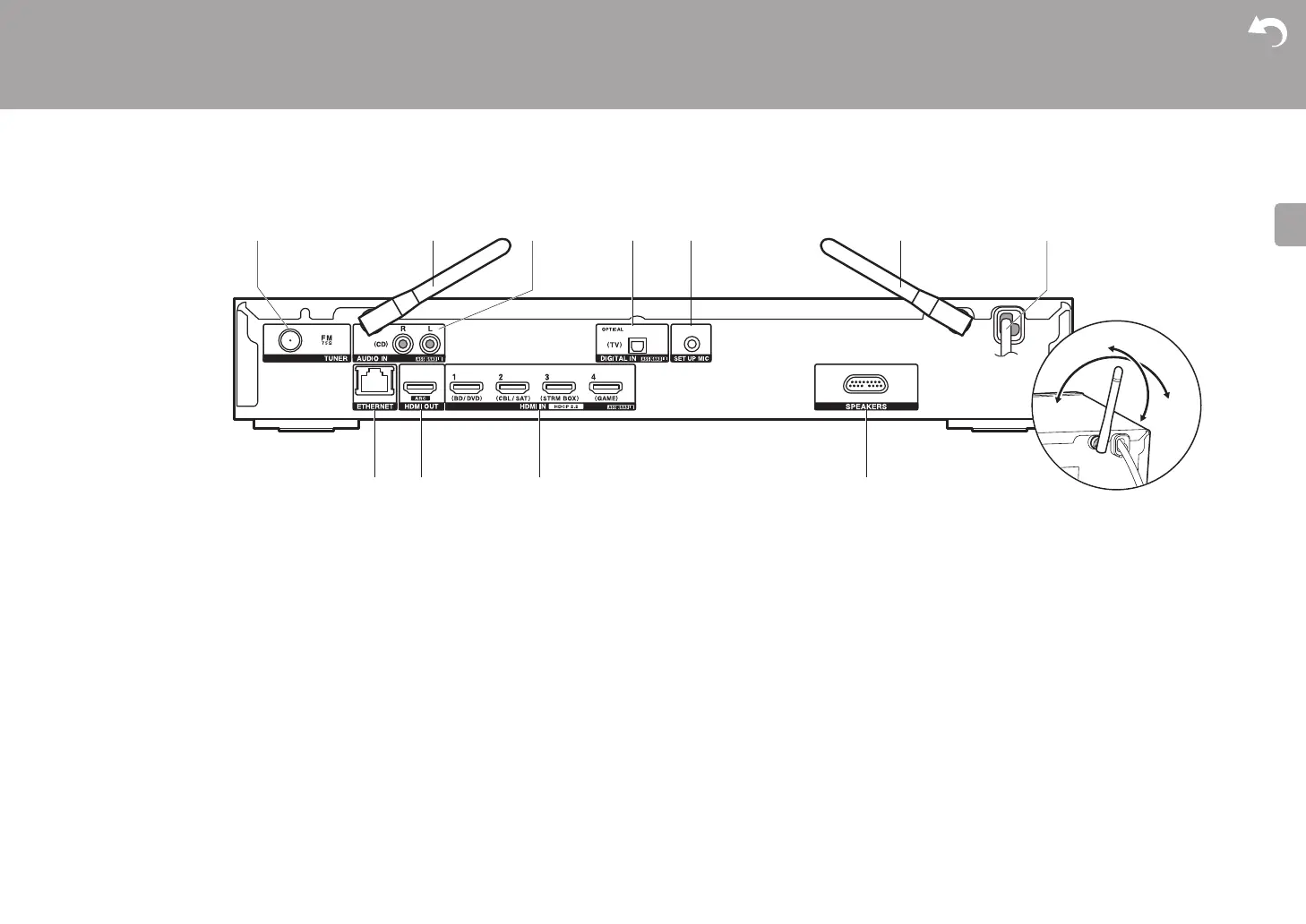

Main Unit (Rear Panel)
1. TUNER FM 75Ω jack: Connect the supplied antenna.
2. Wireless antenna: Raise for Wi-Fi connection or when using a BLUETOOTH enabled
device. The diagram shows the movable range for the wireless antenna. Do not try to
force it beyond this range otherwise you may break it.
3. AUDIO IN jacks: Input AV component audio signals with an analog audio cable.
4. DIGITAL IN OPTICAL jack: Input digital audio signals from a TV, for example, with a digital
optical cable.
5. SETUP MIC jack: The supplied speaker setup microphone is connected.
6. Power cord
7. ETHERNET port: Connect to the network with an Ethernet cable.
8. HDMI OUT jack: Connect a HDMI cable to transfer video signals and audio signals to a
TV.
9. HDMI IN jacks: Input video signals and audio signals with a HDMI cable connected to an
AV component.
10. SPEAKERS terminal: Connect the included sound bar using the included sound bar
connection cable.
180°
90°






 




Onkyo LS7200 Specifications

General

Disc types supported	No
Optical disc player type	Not included
Audio decoders	DSD, DTS:X, Dolby Atmos
Audio output channels	5.0 channels
Audio Return Channel (ARC)	Yes
Signal-to-Noise Ratio (SNR)	80 dB
FM band range	87.5 - 108 MHz
Supported radio bands	FM
Preset stations quantity	40
Bluetooth version	4.1
AC input voltage	100-240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.38 W
Power consumption (typical)	60 W
Subwoofer type	Active subwoofer
Subwoofer sensitivity	90 dB
Subwoofer frequency range	30 - 200 Hz
Subwoofer driver diameter (imperial)	6.2 \
Package weight	18000 g
Cables included	AC
HDMI in	4
USB version	2.0
Number of HDMI outputs	1
S-Video outputs quantity	0
Karaoke	-
Product color	Black

Weight and Dimensions

Main unit weight	4000 g
Subwoofer weight	6200 g
Main unit dimensions (WxDxH)	435 x 325.5 x 70 mm
Subwoofer dimensions (WxDxH)	261 x 269 x 338 mm
