Part Names

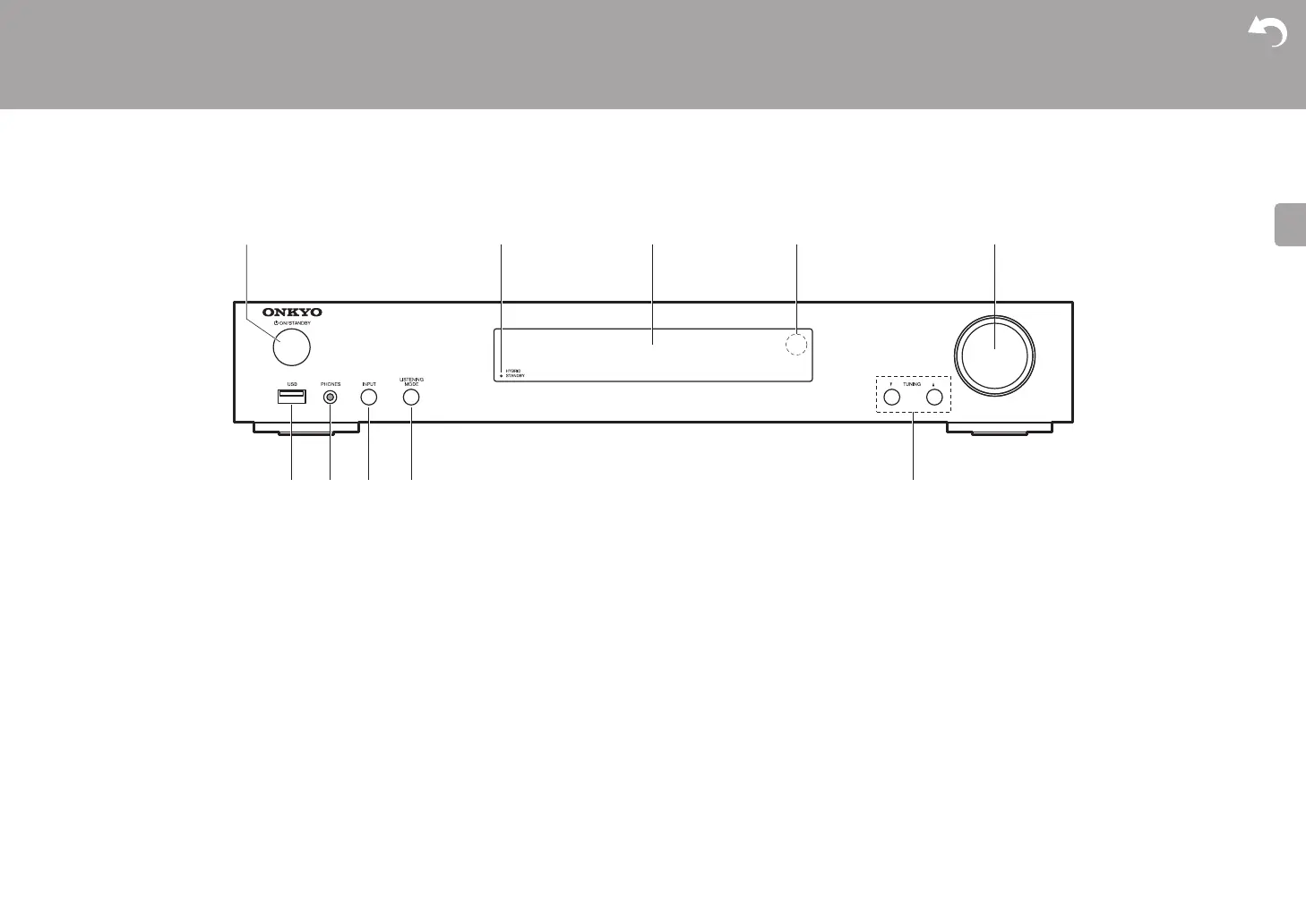

Main Unit (Front Panel)
1. Í ON/STANDBY button: Turns the unit on or into standby mode.
2. HYBRID STANDBY indicator: Lights if the unit enters standby mode when the features
are enabled that continue to work when this unit is in standby, such as HDMI Standby
Through (ÄP49) and Network Standby (ÄP52).
3. Display (ÄP8)
4. Remote control sensor
5. Volume dial: Allows you to adjust the volume.
6. USB port: A USB storage device is connected so that music files stored in it can be
played. You can also supply power (maximum 5 V/1 A) to USB devices with a USB cable.
7. PHONES jack: Stereo headphones with a mini plug (φ3.5 mm) are connected.
8. INPUT button: Switches the input to be played. (BD/DVD / CBL/SAT / GAME / STRM
BOX / CD / TV / FM / NET / USB / BLUETOOTH)
9. LISTENING MODE button: Allows you to select the listening mode. (ÄP30)
10. TUNING43buttons: Select the frequency of FM radio stations.
  
    


Onkyo LS7200 Specifications

General

Disc types supported	No
Optical disc player type	Not included
Audio decoders	DSD, DTS:X, Dolby Atmos
Audio output channels	5.0 channels
Audio Return Channel (ARC)	Yes
Signal-to-Noise Ratio (SNR)	80 dB
FM band range	87.5 - 108 MHz
Supported radio bands	FM
Preset stations quantity	40
Bluetooth version	4.1
AC input voltage	100-240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.38 W
Power consumption (typical)	60 W
Subwoofer type	Active subwoofer
Subwoofer sensitivity	90 dB
Subwoofer frequency range	30 - 200 Hz
Subwoofer driver diameter (imperial)	6.2 \
Package weight	18000 g
Cables included	AC
HDMI in	4
USB version	2.0
Number of HDMI outputs	1
S-Video outputs quantity	0
Karaoke	-
Product color	Black

Weight and Dimensions

Main unit weight	4000 g
Subwoofer weight	6200 g
Main unit dimensions (WxDxH)	435 x 325.5 x 70 mm
Subwoofer dimensions (WxDxH)	261 x 269 x 338 mm
