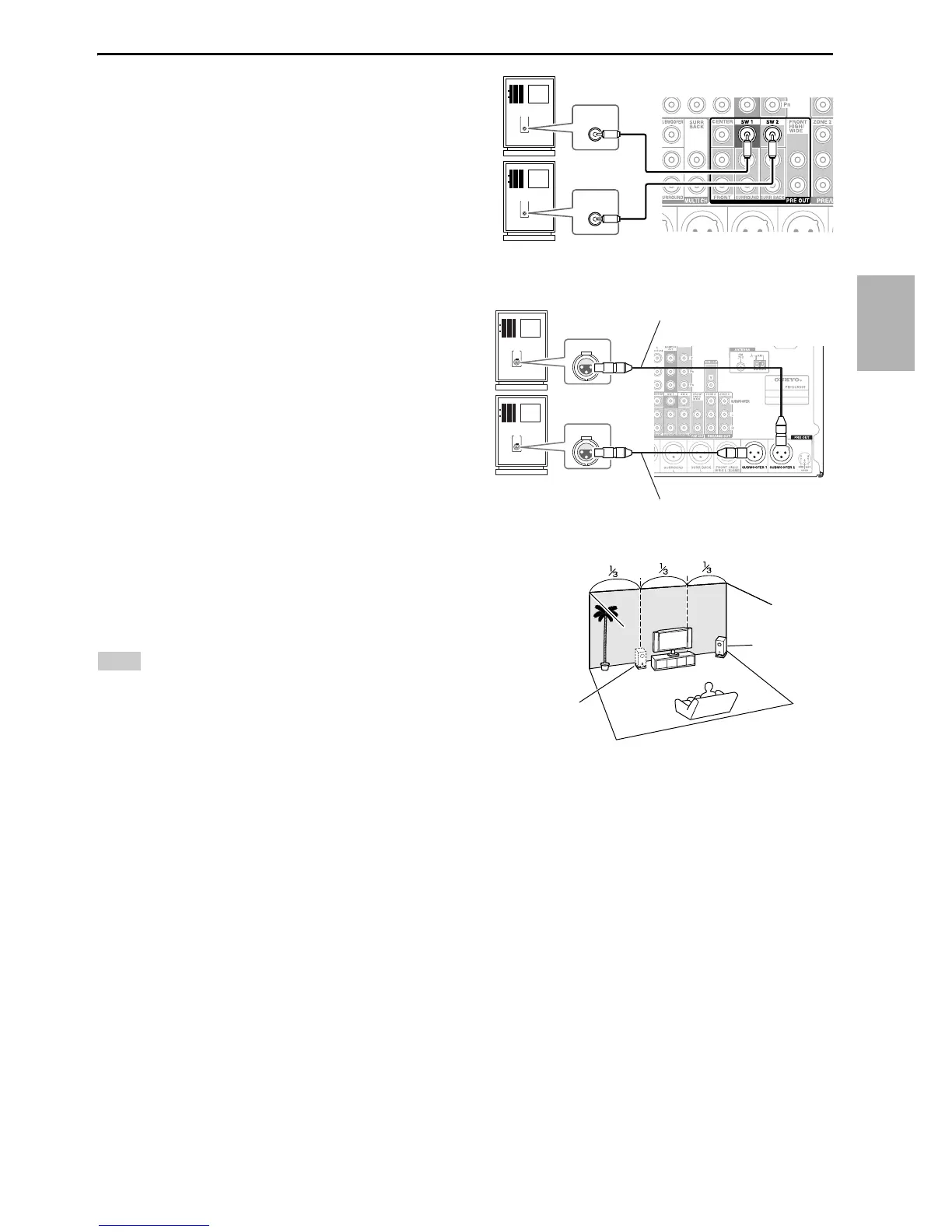

Using Powered Subwoofers
■ Connection via RCA Jacks
You can connect the powered subwoofers to SW1 PRE OUT
and SW2 PRE OUT respectively.
The level and distance can be set individually for each output.
If you’re using only one subwoofer, connect it to SW1 PRE
OUT.
■ Connection via XLR Jacks
You can also connect the powered subwoofers to
SUBWOOFER 1 PRE OUT and SUBWOOFER 2 PRE
OUT respectively, by using balanced XLR cables.
The level and distance can be set individually for each output.
If you’re using only one subwoofer, connect it to
SUBWOOFER 1 PRE OUT.
To find the best position for your subwoofers while playing a
movie or some music with good bass, experiment by placing
your subwoofers at various positions within the room, and
choose the one that provides the most satisfying results.
Tip
• If your subwoofer is unpowered and you’re using an external
amplifier, connect the subwoofer pre out jack to an input on the
amplifier.
LINE INPUT
LINE INPUT
LINE INPUT
LINE INPUT
Powered subwoofers
INPUT
INPUT
INPUT
INPUT
Powered subwoofers
Balanced XLR cable
Balanced XLR cable
Corner
position
1/3 of wall
position

Onkyo PR-SC5509 Specifications

General

Receiver type	Surround
Input sensitivity	200 mV
Audio output channels	9.2 channels
Signal-to-Noise Ratio (SNR)	110 dB
Total Harmonic Distortion (THD)	0.05 %
Power output per channel (20-20KHz@8 Ohm)	- W
HDMI in	8
AC (power) in	Yes
Composite video in	5
USB ports quantity	2
S-Video inputs quantity	4
Multichannel audio input type	RCA
Component video (YPbPr/YCbCr) in	3
Component video (YPbPr/YCbCr) out	1
Connectivity technology	Wired
Ethernet LAN	No
FM band range	87.5 - 108 MHz
Supported radio bands	AM, FM
Preset stations quantity	40
Display	-
Product color	Black
Audio decoders	Dolby TrueHD, DTS-HD Master Audio
Apple docking compatibility	iPhone, iPod
AC input voltage	220-240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	110 W

Weight and Dimensions

Depth	453.5 mm
Width	435 mm
Height	198.5 mm
Weight	14000 g
