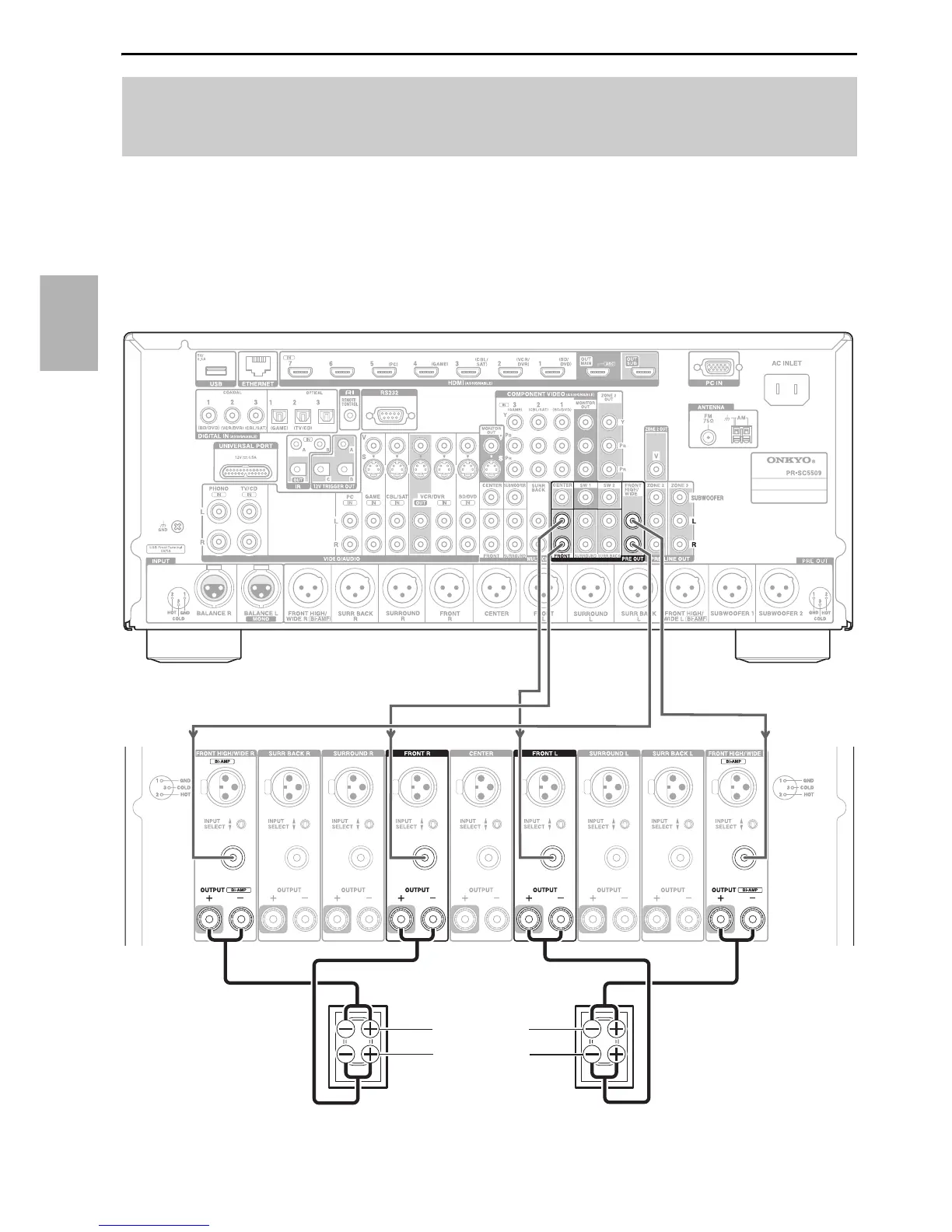

Bi-amping the Front Speakers
Bi-amping provides improved bass and treble performance.
When bi-amping is used, the AV controller is able to drive up to a 7.2 speaker system in the main room.
Once you’ve completed the bi-amping connections as shown and turned on the AV controller, you must set the speaker
setting to enable bi-amping (➔ page 52).
See your multichannel power amplifier’s instruction manual for more information on connecting speakers.
■ Connection via RCA Jacks
Important:
• When making the bi-amping connections, be sure to remove the jumper bars that link the speakers’ tweeter (high) and woofer (low)
terminals.
• Bi-amping can be used only with speakers that support bi-amping. Refer to your speaker manual.
AV controller
Multichannel
power amplifier
Front right Front left
Tweeter (high)
Woofer (low)

Onkyo PR-SC5509 Specifications

General

Receiver type	Surround
Input sensitivity	200 mV
Audio output channels	9.2 channels
Signal-to-Noise Ratio (SNR)	110 dB
Total Harmonic Distortion (THD)	0.05 %
Power output per channel (20-20KHz@8 Ohm)	- W
HDMI in	8
AC (power) in	Yes
Composite video in	5
USB ports quantity	2
S-Video inputs quantity	4
Multichannel audio input type	RCA
Component video (YPbPr/YCbCr) in	3
Component video (YPbPr/YCbCr) out	1
Connectivity technology	Wired
Ethernet LAN	No
FM band range	87.5 - 108 MHz
Supported radio bands	AM, FM
Preset stations quantity	40
Display	-
Product color	Black
Audio decoders	Dolby TrueHD, DTS-HD Master Audio
Apple docking compatibility	iPhone, iPod
AC input voltage	220-240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	110 W

Weight and Dimensions

Depth	453.5 mm
Width	435 mm
Height	198.5 mm
Weight	14000 g
