11
Connecting the T-433
—Continued

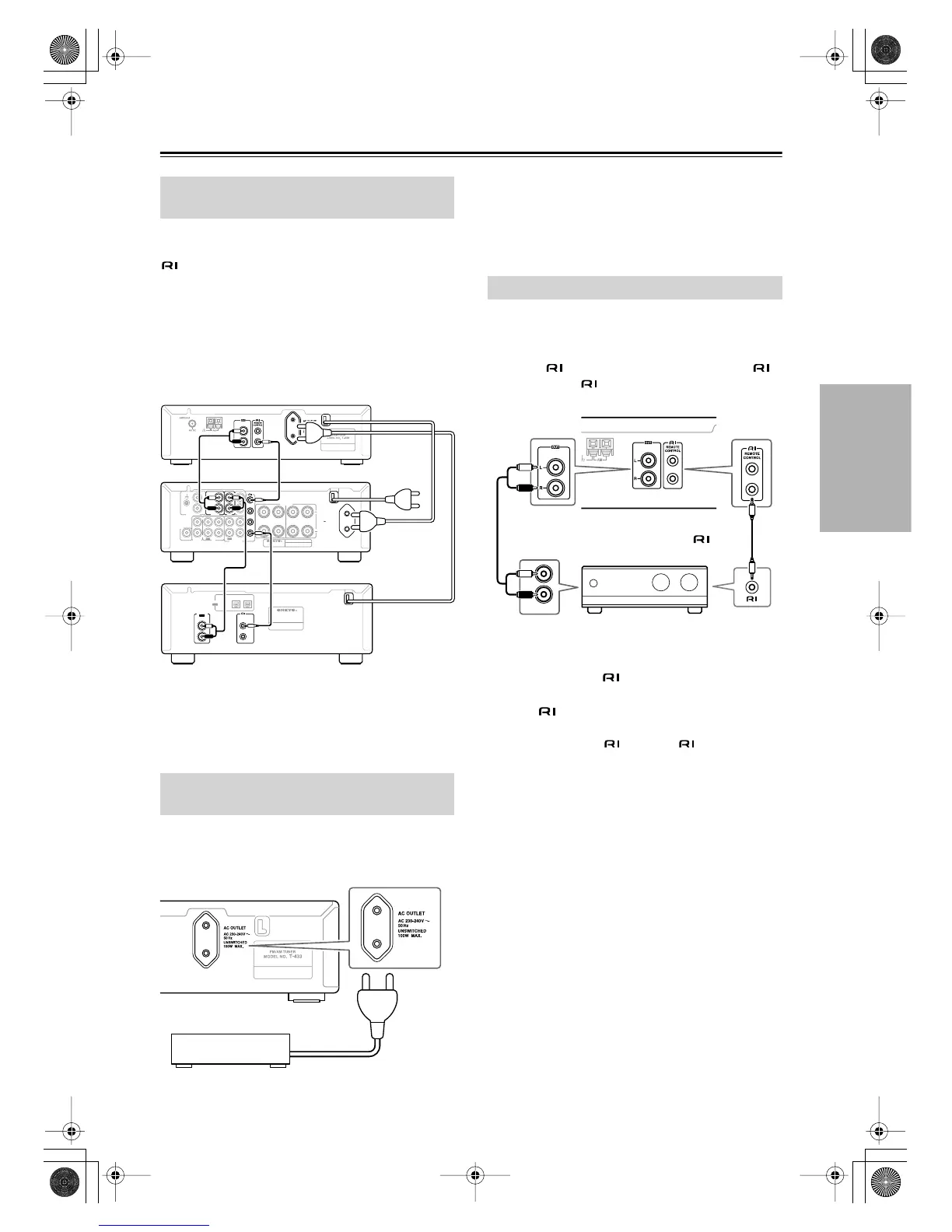

To use the T-433’s timers with your other Onkyo Sepa-
rate Collection components, connect the power cords,
cables, and audio cables as shown below.
• Be sure to connect the T-433’s power cord to an
unswitched AC outlet, one that supplies power con-
tinuously.
• Be sure to make the necessary audio cable connec-
tions. Refer to the A-933’s instruction manual for
details.
Note:
When you use the T-433’s clock or timer functions,
connect the T-433’s power cord to an AC outlet that
supplies power continuously.
The T-433 has an AC OUTLET on its rear panel. This
can be used to connect the power cord of another audio
component that you intend to use with the T-433.
Caution:
Make sure that the maximum power requirement of the
component connected to the AC OUTLET does not
exceed the capacity printed on the T-433’s rear panel
(100W).
Use the supplied audio cable to connect the T-433’s
OUT L/R jacks to the analog input jacks on the ampli-
fier, as shown.
To use the system functions, use the supplied
cable to make an connection.
Notes:
• The T-433 has two jacks. They’re both the same,
so you can use either one.
•To use , you must make an audio connection
between the T-433 and the other component.
• Use only dedicated cables for connections.
• If the T-433 is used with another component from the
Onkyo Separate Collection, such as the A-933, refer
to its instruction manual as well.
System Connections
(necessary to use the timers)
Connecting Another Component’s
Power Cord
AC OUTLET
UNSWITCHED
TOTAL 100W MAX.
AC 230-240 V
50 Hz
CAUTION: SPEAKER IMPEDANCE
A or B : 4 OHMS MIN. /SPEAKER
A + B : 8 OHMS MIN. /SPEAKER
MODEL NO. A
-
933
INTEGRATED AMPLIFIER
MD
SPEAKERS
R
R
L
R
L
L
R
L
R
L
SUBWOOFER
PREOUT
OUT
IN
OUT
IN
GND
REMOTE
CONTROL
TAPE/CDR
MAIN IN
CD
L
IN
E
TUNERPHONO (MM)
A
B
R
L
R
L
R
L
LL
RR
OPTICAL
REMOTE
CONTROL
CONPACT DISC PLAYER
MODEL NO.
C
-
733
DIGITAL
OUT
ANALOG
OUT
C-733
A-933
T-433
To
wall outlet
Connecting an Amplifier
T-433
L
R
TUNER
Supplied cableSupplied cable
Amplifier
