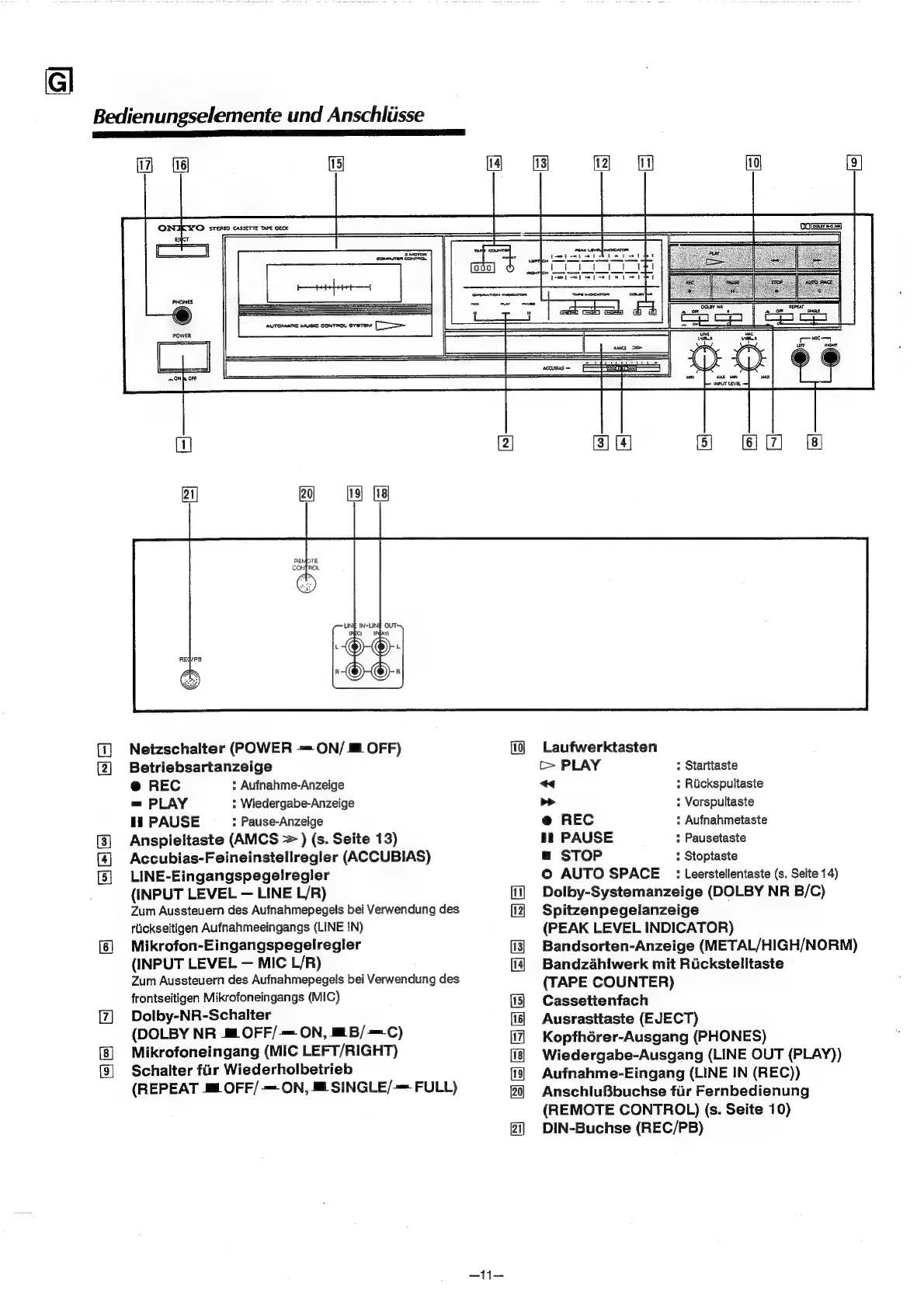

Bedienungselemente
und
Anschliisse
SE
ESC)
fe} [=|
AUTOMATE
MUS
CONTAC
SYSTEM
Ce
Netzschalter
(POWER
ON/
fl
OFF)
Betriebsartanzeige
@
REC
:
Aufnahme-Anzeige
=
PLAY
:
Wiedergabe-Anzeige
ii
PAUSE
:
Pause-Anzeige
Anspieltaste
(AMCS
=>
)
(s.
Seite
13)
Accubias-Feineinstellregler
(ACCUBIAS)
LINE-Eingangspegelregler
(INPUT
LEVEL
LINE
L/R)
Zum
Aussteuern
des
Aufnahmepegels
bei
Verwendung
des
riickseitigen
Aufnahmeeingangs
(LINE
!N)
Mikrofon-Eingangspegelregler
(INPUT
LEVEL
MIC
L/R)
Zum
Aussteuern
des
Aufnahmepegels
bei
Verwendung
des
frontseitigen
Mikrofoneingangs
(MIC)
Dolby-NR-Schalter
(DOLBY
NR
a
OFF/-—
ON,
5B/—-C)
Mikrofoneingang
(MIC
LEFT/RIGHT)
Schalter
fur
Wiederholbetrieb
(REPEAT
=
OFF/-—
ON,
ft
SINGLE/-—
FULL)
—ti—
Ae
Be
PSPS
ES
&
Laufwerktasten
t>
PLAY
:
Starttaste
“«
:
Riickspultaste
>>
:
Vorspultaste
@
REC
:
Aufnahmetaste
it
PAUSE
:
Pausetaste
m
STOP
:
Stoptaste
©
AUTO
SPACE
::
Leerstellentaste
(s.
Seite
14)
Dolby-Systemanzeige
(DOLBY
NR
B/C)
Spitzenpegelanzeige
(PEAK
LEVEL
INDICATOR)
Bandsorten-Anzeige
(METAL/HIGH/NORM)
Bandzahliwerk
mit
Rickstelltaste
(TAPE
COUNTER)
Cassettenfach
Ausrasttaste
(EJECT)
Kopfhérer-Ausgang
(PHONES)
Wiedergabe-Ausgang
(LINE
OUT
(PLAY))
Aufnahme-Eingang
(LINE
IN
(REC))
AnschluBbuchse
fiir
Fernbedienung
(REMOTE
CONTROL)
(s.
Seite
10)
DIN-Buchse
(REC/PB)
