Onkyo TA-2820 Service Manual

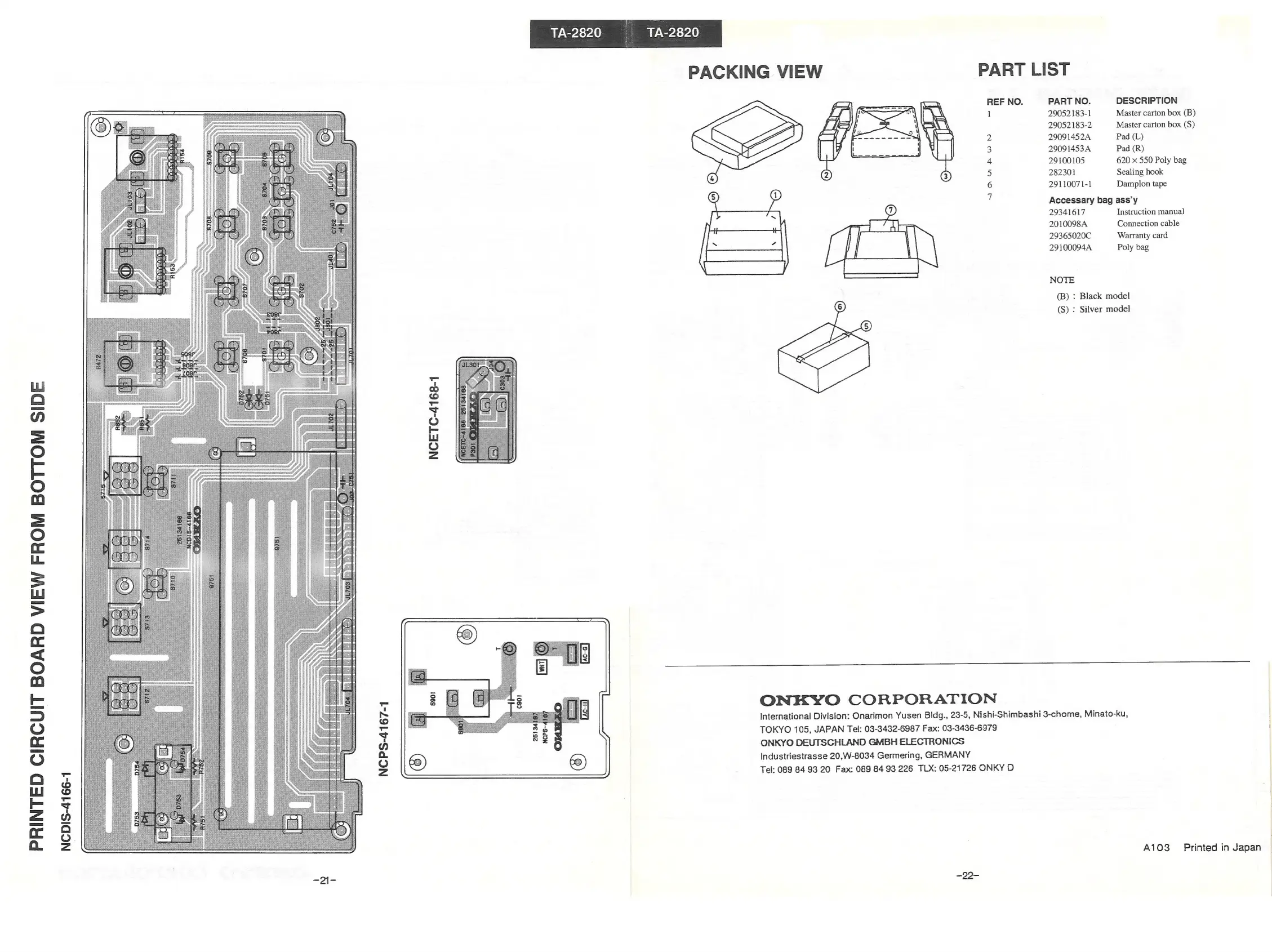

PRINTED CIRCUIT BOARD VIEW FROM BOTTOM SIDE NCDIS-4166-1
NCPS-4167-1
TA-2820
TA-2820
PACKING VIEW
REF NO.
—
UYUADAFWWY
ONKYO
CORPORATION
PART LIST
PART NO. DESCRIPTION
29052 183-1 Master carton box (B)
29052 183-2 Master carton box (S)
290914524 Pad (L)
29091453A Pad (R)
29100105 620 x 550 Poly bag
282301 Sealing hook
2911007 1-1 Damplon tape
Accessary bag ass’y
29341617 Instruction manual
2010098A Connection cable
29365020C Warranty card
29100094A Poly bag
NOTE
(B) : Black model
(S) : Silver model
International
Division:
Onarimon
Yusen
Bldg.,
23-5,
Nishi-Shimbashi
3-chome,
Minato-ku,
TOKYO 105, JAPAN Tel: 03-3432-6987 Fax: 03-3436-6979
ONKYO DEUTSCHLAND GMBH ELECTRONICS
Industriestrasse 20,W-8034 Germering, GERMANY
Tel:
089
84
93
20
Fax:
089
84
93
226
TLX:
05-21726
ONKY
D
A103 Printed in Japan
